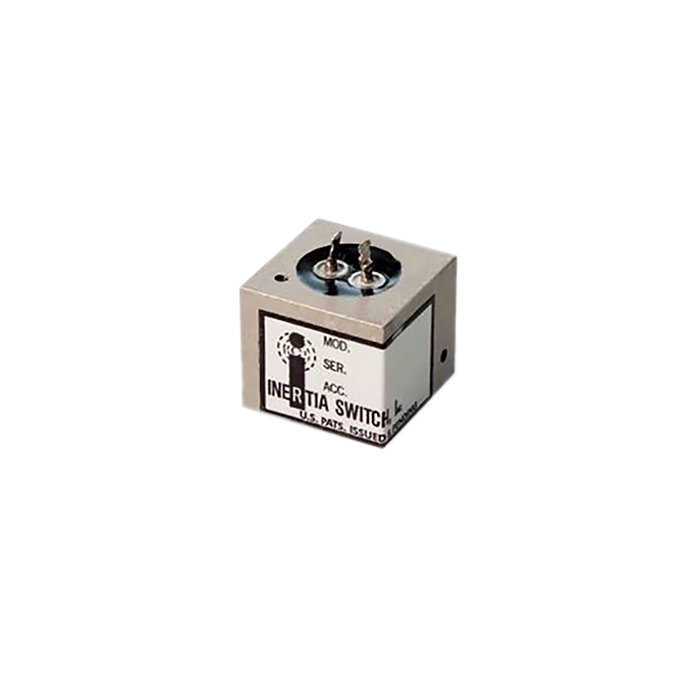

Picture of product 3RO-434-5

Part #: 3RO-434/5

Model: 3RO-434-5

OEM:

Inertia Switch

Desc:

Omnidirectional Impact Switch

Part Number :





FEATURES

  • Designed to sense G forces in any given direction
  • High reliability & accuracy
  • Less than 1 cubic inch in volume
  • Available damped or undamped
  • Qualified to MIL-STD-810
  • Hermetically sealed
  • Gold redundant contacts
  • True omnidirecitonial sensing
  • Helicopter or fixed wing use





SPECIFICATIONS

Sensitivity: Omnidirectional Contact Type: SPST NO
Contact Resistance:  Less than 1.0 ohm Contact Rating:  2.0A @ 28 VDC / 125 VAC
Insulation Resistance: 1000 Mohms@500VDC Reset: Momentary, automatic reset
G Range:  3 to 100 Operating Temperature F:  -55 to 250
Termination: Terminals Seal:  Hermetically Epoxy Sealed
Accuracy: 15% Damping: Undamped
weight: 40 Grams seal:  Hermetic







Part Number: Description:
 3RO-434/5 Omnidirectional Impact Switch







3RO-434/5
- Omnidirectional Impact Switch
