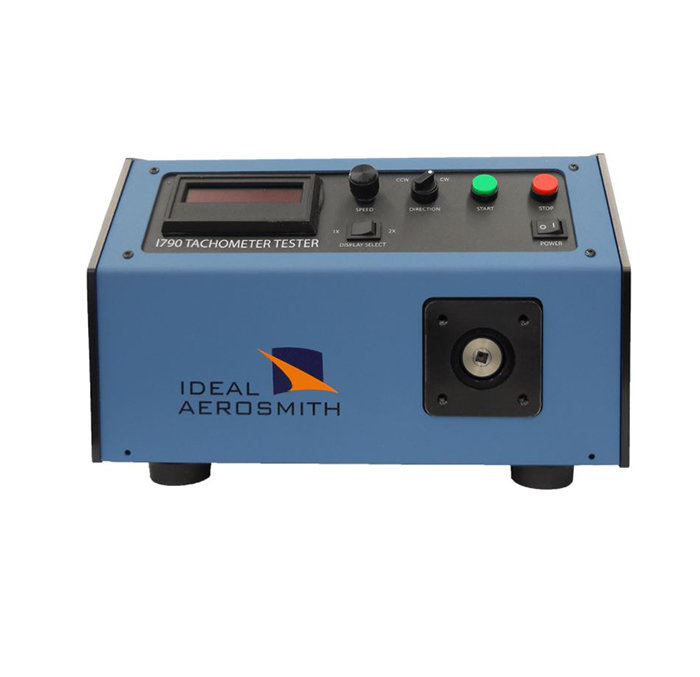

Picture of product 1790

Part #: 230020-6

Model: 1790

OEM:

Ideal Aerosmith

Desc:

Tachometer Tester

Part Number :

1270VS SINGLE-AXIS RATE TABLE

1790



FEATURES

  • This test instrument is used for testing and calibration of electrical and mechanical tachometer generators and indicators
  • A high quality DC motor is coupled directly to a 1/4 inch square hole drive (AN Pad)
  • Tachometer tester output can be converted to a wide variety of adapters and different tachometer interfaces
  • Motor drive control circuit uses SCR components and an open loop system for an economical solution to speed adjustment
  • Control panel consists of a five digit LED display, momentary switches for start and stop, a direction switch, a display select switch, and a ten-turn potentiometer for speed adjustment
  • 250-10,000 RPM Tachometer Testing Range
  • 250-5,000 RPM Actual Drive Speed
  • 1 RPM Accuracy of Digital Display
  • Bright Red 5 Digit Display
  • Maximum Torque:  60 oz-in
  • Low Cost
  • Direct Drive
  • Bi-directional
  • Ten-turn Speed Adjustment



SPECIFICATIONS
Drive Type: Permanent Magnet DC Motor Maximum Torque: 60 oz-in.
Drive Outlet: ¼ inch Square Hole (AN Pad) Shaft Speed Range: Infinitely variable within 250-5000 RPM Bi-directional
Indicator Speed Range: (1X Setting) 250 - 10,000 RPM Indicator Speed Range: (2X Setting) 500 - 10,000 RPM
Dimensions: 12.7W x 12.0L x 8.1H in.   (323 x 305 x 206 mm) Approximate Weight:
Standard: (115 VAC): 25 lbs. (11.5 Kg)
Optional: (230VAC): 36 lbs. (16 Kg)
Digital Display: 5 digit LED, quartz, crystal controlled Axis Lock: Manual Shot Pin
Height of Tabletop, inches (mm): 31.4 (798)  Accuracy: ±1 RPM
Units: RPM (Standard), Percentage (Optional) Readout: (XXXXX) RPM or (XXX.X) Percent
Power Requirements:
IEC 60320 Power Entry Module
115 VAC, 50/60 Hz (Standard)
230 VAC, 50/60 Hz (Optional)
Operating Environment: Temperature 40º to 90º F  (4º to 32º C)
Operating Environment: Relative Humidity 20% to 85% noncondensing
Part Number: Description:
1790 Tachometer Tester



230020-6
- Tachometer Tester
Price Condition Status
RFQ RFQ RFQ
