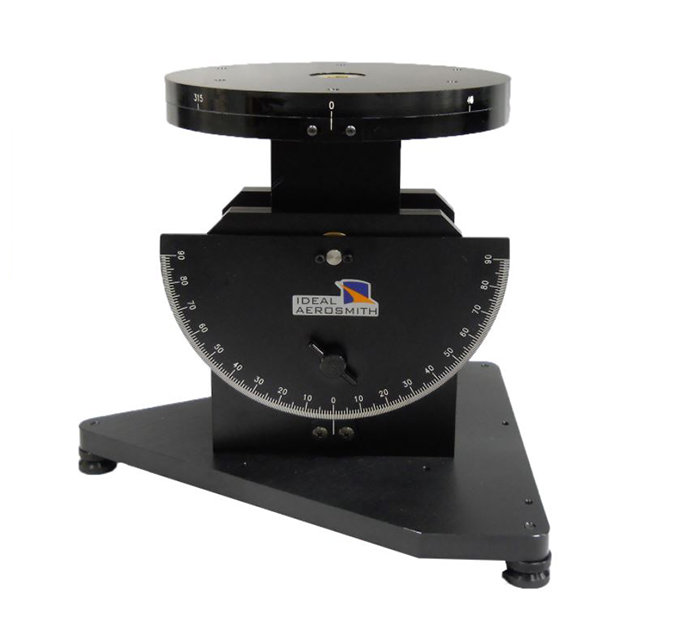

Picture of product 1300

Part #: 227500-1

Model: 1300

OEM:

Ideal Aerosmith

Desc:

Manual Tilt & Turn Table

Part Number :



1270VS SINGLE-AXIS RATE TABLE



FEATURES

  • 1300 series Manual Tilt & Turn Tables are designed for precision calibration of gyroscopic instruments or any devices requiring a tilt input in one or two axes
  • Table provides a portable, stable, and precise positioning platform with lasting durability
  • Small and lightweight for easy bench mounting and manual operation
  • Two degrees of freedom for tilting and rotating test instruments
  • Spring loaded detents provide accurate tabletop rotary and tilt axis indexing
  • Flat, precision ground tabletop mounting surface
  • Anodized aluminum construction for durable corrosion resistance



SPECIFICATIONS
Tabletop diameter: 8 in. (203 mm) Weight: 18.6 lbs. (8.4 Kg)
Leveling range: ±2.5º Width: 11.5 in. (292 mm)
Depth: 10.6 in. (269 mm) Height: 10.5 in. (267 mm)
Load capacity: 30 lbs. (13.6 Kg)  Tilt Axis range of motion: ±90º
Tilt Axis engraved increment: 0.5º Tilt Axis detents increment: 15º
Azimuth Axis Accuracy (detents & engraving):
±6 arc minutes
Azimuth Axis range of motion: ±360º
Azimuth Axis engraved increment: Standard: 45  -1 Model: 1 º Azimuth Axis detents increment: Standard: 45 -1 Model: 15º
Type of finish: Black anodizing per MIL-A-8625 Type II Class 2
Part Number: Description:
1300 Manual Tilt & Turn Table



227500-1
- Manual Tilt & Turn Table
Price Condition Status
RFQ RFQ RFQ
