NSN: |
|
OEM: |
Icom |
Desc: |

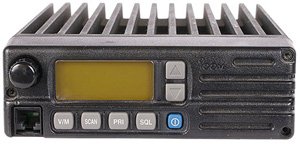

VHF Airband Transceiver, Vehicle |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Frequency Range: | 118.000 - 136.975 MHz | Channel spacing: | 8.33 25 kHz |
Mode: | 6K00A3E (AM) | Memory Channels: | 20 |
Antenna connector: | SO-239 (50Ω) | Power supply requirement: | 12 VDC or 24 VDC |
Current drain (at 13.75 V DC): | Transmitting: 5.0A max. Receiving: 4.0A (at AF max.) 0.5A (at stand-by) | Operating Temp. Range: | -30°C to +60°C; -22°F to +140°F |
Frequency stability: | ±5 ppm (-30°C to +60°C) | Output power: | 36 W typical. pep (9 W typical. for CW) |
Dimensions: | 150(W) × 50(H) × 180(D) mm | Weight (approx.): | 1.5 kg; 3 lb 5 oz |
Modulation limiting: | 70 - 100% (IC-A110) | Modulation compression: | Linear 85% Max. 95% |
AF harmonic distortion: | Less than 10% (at max. mod.) | Hum and Noise ratio: | More than 40 dB |
Spurious emissions: | Less than -16 dBm | Microphone connector: | 8-pin modulator (600Ω) |
Receiving system: | Double conversion superheterodyne | Intermediate frequency: | 1st 38.85 MHz 2nd 450 kHz |
Sensitivity (pd): | Less than 1 µV (at 6 dB S/N) | Squelch sensitivity(pd; at threshold): | Less than 0.3 µV |
Selectivity: | 25 kHz Ch. Spacing: More than ±8 kHz (at -6 dB) Less than ±17 kHz (at -40 dB) Less than ±25 kHz (at -60 dB) 8.33 kHz Ch. Spacing: More than ±2.778 kHz (at -6 dB) Less than ±7.37 kHz (at -60 dB) | Audio output power (at 13.75 V; 10% dist.; 60% mod.): | Internal speaker: 1.5 W typical w/8Ω load External Speaker: More than 10.0 W w/8Ω load Headset (side tone): More than 0.1 W w/500Ω load |
Spurious response: | More than 74 dBµ | AF output impedance: | EXT SP: 8Ω Headset (side tone): 500Ω |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
