Part #:

Model: WC-660

OEM:

Honeywell

Desc:

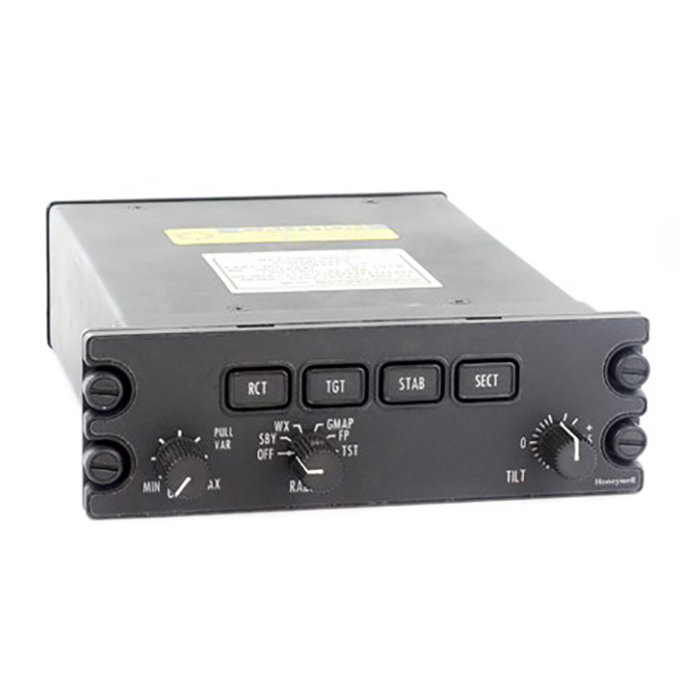

Weather Radar Controller

Part Number :



WC-660
FEATURES
  • Radar Controller used with the Primus-660 digital weather radar system
  • Contains all controls necessary for operating the radar system
  • For use in installations that do not include a dedicated indicator
  • 28VDC or 5V ac/dc lighting
  • Black or gray bezel (see table below)
  • Versions available only for use with Bendix/King EFIS-50 system (see table below)
  • Versions available with external range input which may be used in installations where an MFD sends range data to the radar (see table below)
  • Controls include: Range (Up/Down), STAB, TGT Alert, TRB (see versions), SECT Sector Scan, GAIN/PULL VAR, Mode (OFF-STBY-WX-RCT-GMAP-FP-TEST), TILT/PULL ACT, LSS (see versions)
  • 1.89" Height, 5.77" Width, 7.94" Length



SPECIFICATIONS
Weight: 2.2 lbs. (1.0 kg) Operating Voltage: 28VDC nominal (22-32 max)
Power Consumption: 8.5 watts max Current: 0.3A nominal (0.4A max)
Panel Illumination: 28VDC, 0.3 A, nominal or 5 V ac/dc, 1.0A nominal TSO: C63C Class 7 (DO-173), DO-160B Env. Cat. B1A/KS/XXXXXXAAAAA
Part Number: Description:
7008471-643 Gray bezel, For use with EFIS-50, Weather Radar Controller
7008471-644 Black bezel, For use with EFIS-50, Weather Radar Controller
7008471-665 Gray bezel, LSS Control, Weather Radar Controller
7008471-666 Black bezel, LSS Control, Weather Radar Controller
7008471-667 Gray bezel, No LSS Control, Weather Radar Controller
7008471-668 Black bezel, No LSS Control, Weather Radar Controller
7008471-675 Gray bezel, LSS Control, external range input, Weather Radar Controller
7008471-676 Black bezel, LSS Control external range input, Weather Radar Controller
7008471-677 Gray bezel, No LSS Control external range input, Weather Radar Controller
7008471-678 Black bezel, No LSS Control, external range input, Weather Radar Controller



7008471-643
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7008471-644
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-665
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-666
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7008471-667
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-675
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-676
- Radar Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-677
- Radar Controller

NSN: 5841-01-532-4219

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7008471-678
- Radar Controller
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7008471-688
- Radar Controller

NSN: 1680-01-618-7361

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
