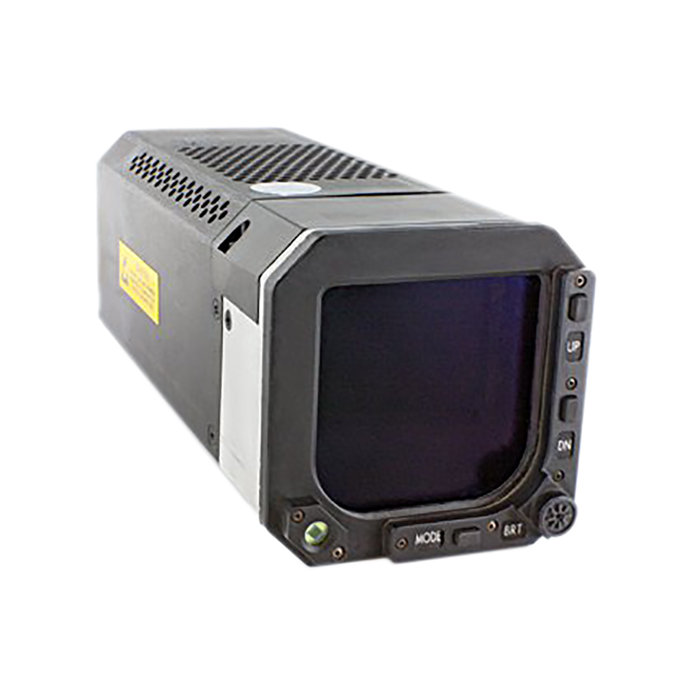

Picture of product TRA-45A

Part #:

Model: TRA-45A

OEM:

Honeywell

Desc:

Terrain Display (28V/Black)

Part Number :



TRA-45A
FEATURES
  • 3 inch indicator combining both terrain display and radio altitude information
  • Designed to interface with Honeywell Enhanced Ground Proximity Systems (EGPWS)- (such as KGP-560, MK V, MK VI, MK VII, MK VIII)
  • Will display radio altitude data from radio altimeter systems such as Bendix/King KRA-405 / KRA-405B or Collins ALT-55B
  • Easy to operate with three control keys for mode and range/DH
  • Front panel includes ambient light sensor and brightness control knob
  • Range control keys display ranges from 5-320 NM (5,10,20,40,80,160,320)
  • 28VDC and 115VAC versions available (see table below)



SPECIFICATIONS

Size: 3.26" x 3.26" x 7.67" Weight: 3.0 lbs.
Power Supply: 28 VDC or 115VAC, 400 Hz, 40 watts Lighting: 0-5 VAC/VDC or 0-28 VDC
Viewing Area: 2.27"H x 2.27"V Brightness: 0-150 FL (minimum)
Terrain Interface: ASPB Honeywell Proprietary, ARINC 708A (optional) Radio Altitude: ARINC 552, Analog (ALT-55/KRA-405), ARINC 708A
TSO: FAA TSO C87, C113 Software: RTCA DO-178B, Level B
Part Number: Description:
80-5145-3-2 115VAC, Black Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-3-3 115VAC, Black Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-3-4 115VAC, Black Bezel
80-5145-4-2 115VAC, Gray Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-4-3 115VAC, Gray Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-4-4 115VAC, Gray Bezel
80-5145-9-2 28VDC, Black Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-9-3 28VDC, Black Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-9-4 28VDC, Black Bezel
80-5145-10-2 28VDC, Gray Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-10-3 28VDC, Gray Bezel, Range/DH Control, Brightness Control, Remote Light Sensor
80-5145-10-4 28VDC, Gray Bezel



80-5145-10-4
- EGPWS/Radio Altitude Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
80-5145-4-4
- EGPWS/Radio Altitude Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
80-5145-9-4
- EGPWS/Radio Altitude Indicator

NSN: 7025-01-592-0120

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
