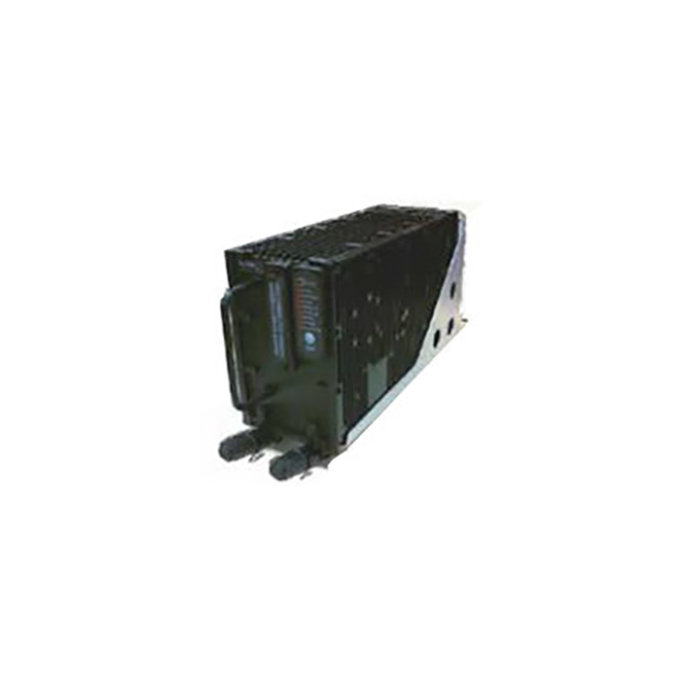

Picture of product TRA-100B

Part #:

Model: TRA-100B

OEM:

Honeywell

Part Number :



TRA-100B TRANSPONDER
FEATURES
  • The Honeywell TRA‐100B is a new model that is a form‐fit‐function replacement for the TRA‐67A
  • TRA-100B Mode S Transponder is a remote mounted unit which meets the Technical Standard Order (ETSO-C112d)
  • Bi-directional air-to-air information exchange
  • Ground to air data up link, Comm-A
  • Multisite message protocol
  • Data link capability reporting
  • (TCAS) Traffic Alert and Collision Avoidance System
  • (ACAS) Airborne Collision Avoidance System
  • (ACAS) Cross link
  • Overlay Command Capability



SPECIFICATIONS
WEIGHT (TOTAL MASS): 14.5 lbs (6.58 Kgs.) Operating Range: -55°C to +70° C
dimensions: 194 mm H x W 124 mm x D 318 mm output power: 400 W ± 100 W
STORAGE CONDITIONS: -55° C to +70° C power: 115 VAC/380-420 Hz.



Part Number: Description:
066-01212-0101 TRA-100B Mode S Transponder
066-01212-0102 TRA-100B Mode S Transponder
066-01212-0301 TRA-100B Mode S Transponder





066-01212-0102
- Mode S Transponder (Airbus)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01212-0301
- ADS-B Transponder
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
