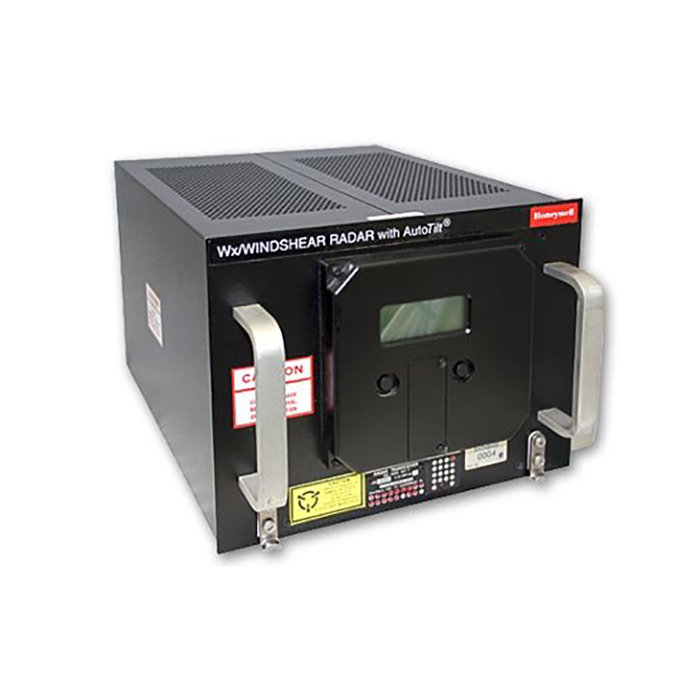

Picture of product RTA-4B

Part #:

Model: RTA-4B

OEM:

Honeywell

Desc:

Radar Transceiver

Part Number :



RTA-4B
FEATURES
  • Radar Receiver/Transmitter (R/T)
  • Used in the RDR-4B Radar System
  • Solid-state, including transmitter output devices
  • Digital processing design for windshear detection/avoidance capability
  • Units with CMS compatibility* provide interface compatibility with aircraft containing centralized BITE capability of either CFDS or CMC types; The RTA-4B maintenance processor and fault memory provide bit and fault reporting for the RDR-4B radar system
  • Units with Data Base* feature, include the data base required for Operation into Kansai International Airport
  • Units with PWS w/24" Antenna* feature are capable of performing windshear operation with 24 inch antenna array

          *See Configuration Chart for more information on Units w/CMS, Data Base & PWS capability

           CLICK HERE to view a RTA-4B Configuration Chart



SPECIFICATIONS
Size: 8 MCU per Arinc 708A Weight: 29 lbs
Transmitter Power: 125 watts nominal Transmitter Frequency: 9.345 Ghz
Max Detection Ranges: 320nm - Weather & Map 40nm - TURB mode 5nm - Windshear Pulse Width: Radar Modes: 6 & 18 µsecs (interlaced) Windshear Mode: 1.5 µsecs
Pulse Repetition Rate: 380 Hz - Weather & Map Modes 1600 Hz - Turbulence Mode 6000 Hz - Windshear Mode Cooling: ARINC 600
Power Requirements: 115 BAC, 400 Hz, 1.75A max Environmental: DO-160C
Certification: TSO c63c, Class 7 and RTCA DO-220
Part Number: Description:
066-50008-0101 View Configuration Chart Below
066-50008-0102 View Configuration Chart Below
066-50008-0103 View Configuration Chart Below
066-50008-0201 View Configuration Chart Below
066-50008-0202 View Configuration Chart Below
066-50008-0203 View Configuration Chart Below
066-50008-0301 View Configuration Chart Below
066-50008-0304 View Configuration Chart Below
066-50008-0403 View Configuration Chart Below
066-50008-0404 View Configuration Chart Below
066-50008-0405 View Configuration Chart Below
066-50008-0406 View Configuration Chart Below
066-50008-0407 View Configuration Chart Below
066-50008-0408 View Configuration Chart Below
066-50008-0409 View Configuration Chart Below
CLICK HERE for a RTA-4B Configuration Chart



066-50008-0406
- Radar Receiver Transmitter

NSN: 5841-01-536-3106

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-50008-0407
- Radar Receiver Transmitter

NSN: 6660-01-621-9374

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
066-50008-0408
- Radar Receiver Transmitter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
066-50008-0409
- Radar Receiver Transmitter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
