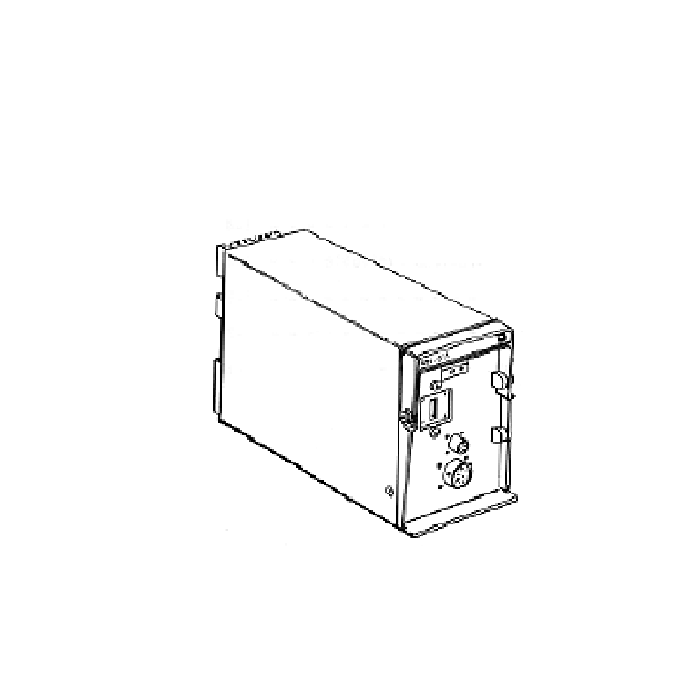

Picture of product RT-1301A

Part #: 4000966-0101

Model: RT-1301A

NSN:

5826-01-363-5415

OEM:

Honeywell

Desc:

Radar Transceiver

Part Number :

FOR REFERENCE ONLY




RT-1301A
FEATURES
  • Radar Receiver / Transmitter used in 3 piece RDR-1300 systems
  • Peak power output 10 kW
  • Lightweight
  • Self-test feature
  • DC powered
  • Can be horizontally or vertically mounted



SPECIFICATIONS

RF Power Output: 10 kW peak power Frequency: (X-Band) 9345 MHz +-40 MHz
Pulse Width: 0.5 usec (10 & 20 mile ranges in MAP mode); 2.35 usec (ranges above 20 miles in MAP mode and all ranges in weather mode) Weight: 14.5 lbs.
Dimensions: 5.06"W x 7.87"H x 14.00"L TSO: C63b DO-138 Env. Cat. AA/NJ/AAAXXXXXX
Part Number: Description:
4000966-0101 Rated to 45,000 feet with features as above
4000966-0104 Rated to 55,000 feet with features as above
