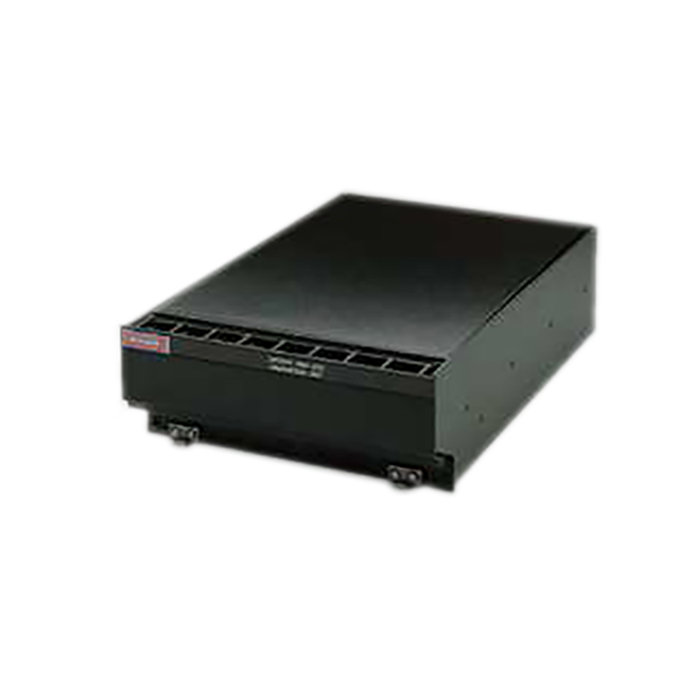

A typical RNZ--85X Integrated Navigation Unit contains the modules that follow:
Dimensions: | 14.01" L x 8.90" W x 3.38" H | Weight: | 9.64 lbs |
Power Requirements: | 28 V dc, 43 Watts (nominal), 26 V, 400 Hz, 0.026 VA (maximum) | TSO: | C34d, C35d, C36d, C40b |
Environmental: | DO--160B Environmental Category /A2E1/B/JLMY/E1XXXXXZ/BZ/AZZ | Operation Temperature: | -55 to +70 degrees C |
Altitude: | 70,000 feet | Decompression: | 8,000 to 70,000 feet |
Overpressure: | -15,000 feet | Vibration JLMY: | Category J - Fuselage mount, fixed wing--turbojet, subsonic, and supersonic Category L - Fuselage mount, fixed wing--reciprocating and turbopropeller, multi--engine over 12,500 pounds Category M - Fuselage mount, fixed wing--reciprocating and turbopropeller, multi and single engine less than 12,500 pounds Category Y - Fuselage mount, helicopter, reciprocating, and turbojet engine |
Mounting: | P/N 7510124-910 (1/2" mounting screws) or 7510124-911 (3/4" mounting screws) | Tuning and Data Bus | Radio System Bus (RSB) |
Digital Audio Output Buses: | 2 |
Power Requirements: | 28 V dc, 33 Watts nominal, 50 Watts at full rated loads and 26 V, 400 Hz, 0.026 Watts | VOR Specifications: | Frequency Range - 108.00 to 117.95 MHz Channel Spacing - 50 kHz Frequency Stability - 0.0025% VOR Bearing Accuracy (Digital) - ±0.75 degree Sensitivity (Aural) - Minimum: -100 dBm for 10 dB (S + N) / N / Typical: -103 dBm for 10 dB (S + N) / N Sensitivity (Flag) - Minimum: -105 dBm for valid flag / Typical: -107 dBm for valid flag Selectivity - 6 dB at ± 15 kHz Minimum / 60 dB at ± 41 kHz Maximum Spurious Response - -80 dB Audio Output - 100 mW into 600 ohms |
Localizer Specifications: | Frequency Range - 108.10 to 111.95 MHz Channel Spacing - 50 kHz Deviation Centering - ± 0.0026 ddm Polarity - Positive ddm for 90 Hz > 150 Hz (Aircraft left of LOC Course) Sensitivity (Aural) - Minimum: -100 dBm for 10 dB (S + N) / N / Typical: -103 dBm for 10 dB (S + N) / N Sensitivity (Flag) - Minimum: --105 dBm for valid flag / Typical: -107 dBm for valid flag Selectivity - 6 dB at ± 15 kHz minimum, 60 dB at ± 41 kHz maximum Spurious Response - -80 dB Audio Output - 100 MW into 600 ohms minimum | Glideslope Specifications: | Frequency Range - 329.15 to 335.00 MHz Channel Spacing - 150 kHz Deviation Centering - ±0.0058 ddm Polarity - Negative ddm for 90 Hz > 150 Hz (Aircraft above GS Course) Sensitivity (Flag) - Minimum: -99 dBm for valid flag / Typical: -102 dBm for valid flag Selectivity - 6 dB at ± 25.5 kHz minimum / 60 dB at ± 120 kHz maximum Spurious Response - -60 dB |
Marker Beacon Specifications: | Frequency - 75.0 MHz Sensitivity - Two preset levels adjustable between -61 dBm and -34 dBm. Normal factory settings are -61 dBm ± 6 dB for High Sense Mode and -47 dBm ± 6 dB for Lo Sense Mode Selectivity - 6 dB at ± 13 kHz minimum / 60 dB at ± 100 kHz maximum AGC Characteristics - Less than 9 dB variation in audio output level as RF input is varied from lamp threshold to -13 dBm Audio Output - 50 mW into 600 ohms minimum | Interfaces: | NAV Data Output - RS-422 (GAMA CSDB 523--0772774), address 20, 21, 22 ILS Mode - Sinks up to 100 mA maximum with less than +3.0 V output level; +80 V dc maximum level VOR/LOC Audio - 100 mW minimum with -53 dBm RF input 30% modulated by 1000 Hz into a 600-ohm load impedance RNAV Video Signal - Accuracy is ±0.5 degree; nominally 0.5 Vrms of 9960 Hz and 30 Hz with -53 dBm RF input. The output has a -5 V dc offset (RNZ-850 units) or, +5 V dc offset (RNZ--851 units). The output impedance is 1k ohms Course Deviation Loads - Up to five 1k--ohm loads, 150 mA full scale (10°) VOR/LOC Super Flag - 26 V dc nominal, up to 0.25 amperes VOR/LOC Flag Loads - Up to five 1k--ohm loads TO/FROM Loads - Up to three 200-ohm loads RMI - Sine/Cosine OBI output; XYZ (11.8 V peak) two loads maximum Glideslope Deviation Loads - Up to five 1k-ohm loads; 150 uA full--scale deflection. Glideslope Flag Loads - Up to five 1k-ohm loads Glideslope Super Flag - 26 V dc nominal, up to 0.25 amperes RNAV Composite Loads - Up to four loads at 40k ohms input impedance. |
Part Number | NAV Unit Description: |
---|---|
7510100-904 | Original TSO release (--901 without DME and ADF) |
7510100-914 | -904 with MLS compatibility added |
7510100-924 | -914 with improved VOR/ILS receiver and IAC RSB compatible cluster |
7510100-934 | -924 with VOR/ILS FM immunity improvements |
7510100-704 | -904 with improved ILS approach |
7510100-714 | -914 with improved ILS approach |
7510100-724 | -924 with improved ILS approach |
7510100-734 | -934 with improved ILS approach |
