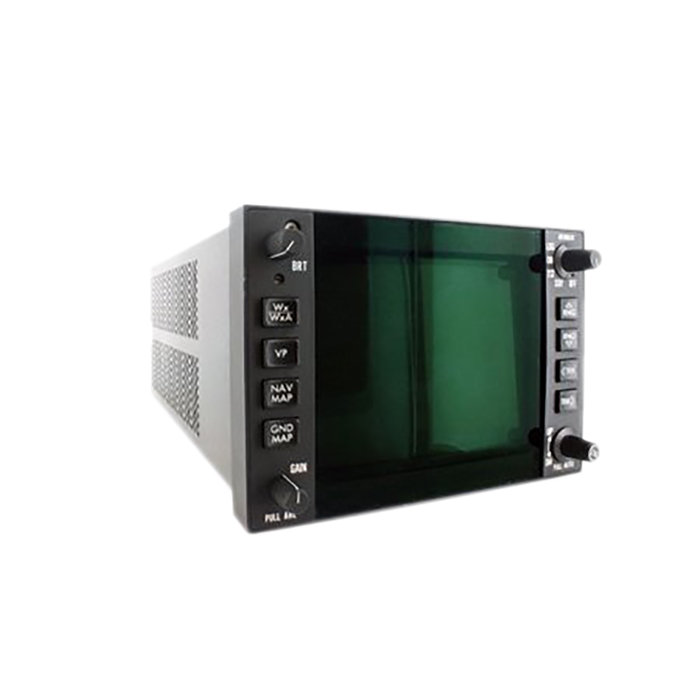

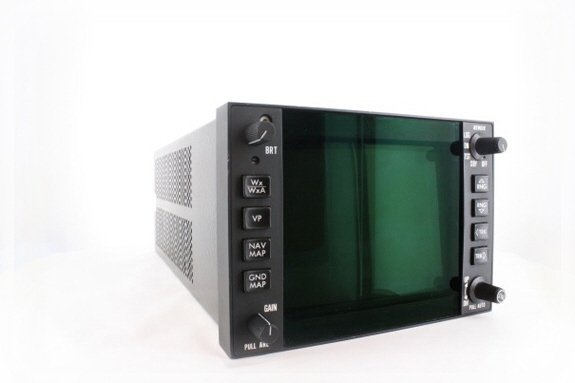

Part #: 3614477-8601

Model: IN-862A

OEM:

Honeywell

Desc:

Color Radar Indicator

Part Number :



IN-862A
FEATURES
  • Four color radar indicator used with RDR-2100 and RDS-86 radar systems
  • -00 & -01 (or Bendix equivalent) versions are used with RS-861A P/N 071-1319-00 or 3614475-8601 versions
  • -10,-11,-30,-31 versions are used with RS-861A 071-1319-30 version
  • -30 & -31 versions are used with ART-2100 radar sensor
  • King P/N 066-3086-00 and -01 superceded Bendix P/N 3614475-8601 and -8602 when Bendix/King merger took place
  • Solid-state
  • Display Range/Range Marks of 5,10,20,40,80,160,240, and 320 nautical miles
  • EFIS compatible (version specific- see table below)
  • ARINC 453 bus, ARINC 708 data word weather data inputs
  • ARINC 429 control data outputs
  • Auto-calibration feature allows to install or replace unit wihout use of test equipment
  • 5,14, or 28 Volt panel lighting
  • Compatible with graphics units to provide on-screen waypoint information and checklist data
  • Models available with black or gray bezel (see table below)
  • Models available with graphics compatibility for display of navigation information (see table below)



SPECIFICATIONS

Modes: STBY,WX,WXA,NAV MAP, GND MAP, VP and TEST Range Scales: 5,10,20,40,80,160,240,320 NM; up to 1000 nm for navigation only
Altitude: 35000 ft. unpressurized Temperature: -20 to 55C
Dimensions: 6.4"W x 4.5"H x 13.57"L Weight: 9.75 lbs.
TSO: C63c Env. Categories: DO-160A; C1A/PKS/XXXXXXABABA
Part Number: Description:
066-3086-00 black bezel, non-vertical profile
3614477-8601 black bezel, non-vertical profile; Bendix alternate #
066-3086-01 gray bezel, non-vertical profile
3614477-8602 gray bezel, non-vertical profile; Bendix alternate #
066-3086-10 black bezel, vertical profile
066-3086-11 gray bezel, vertical profile
066-3086-30 black bezel, vertical profile, EFIS compatible
066-3086-31 gray bezel, vertical profile, EFIS compatible



PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET




3614477-8601
- Radar Indicator
Price Condition Status
$2,500.00 OH OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Many avionics systems require a configuration or setup process. This process is required to interface certain avionics systems to other systems in the aircraft that will be inputting or outputting information to and from these systems. Some examples of systems that require a configuration or setup process include:

Autopilot
EFIS
GPS
EGPWS
EHSI
RADAR
TAWS
TCAS


In addition, most newer technology or solid state systems require configuration via computer interface of some type. A qualified avionics technician should always refer to the appropriate manufacturer's installation manual for complete information and instructions.
The ART-2100 will replace the RS-861A with the incorporation of an adapter harness prescribed in Honeywell Installation Bulletin No. 445. The original IN-862A indicator (-00,01,30,31) are functional indicators that can be used with the ART-2100 sensor. The CM-2000 configuration module would need to be added in the radar system as well.

Southeast Aerospace provides complete retrofit packages for the Bendix RS series radar sensors to Honeywell ART sensors. Packages include equipment, adapter harness, programmed configuration module, and other instructions. Please contact Sales Dept for an exact quote.
