Part #:

Model: IN-1202B

OEM:

Honeywell

Desc:

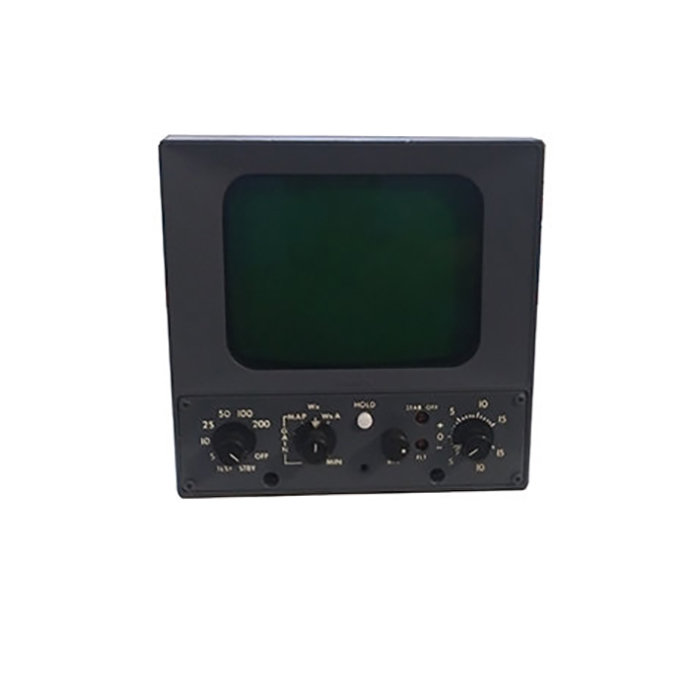

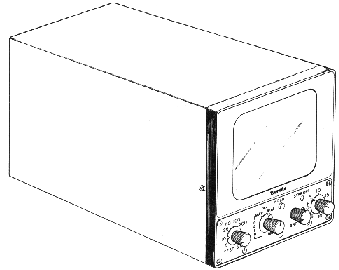

Monochrome Radar Indicator

Part Number :


IN-1202B
FEATURES
  • Monochrome Radar Indicator used in RDR-1200 3-piece Bendix radar systems
  • Standard size design
  • Provides steady, non-fading display of weather and ground targets with digital memory storage
  • Contains front panel selections of power, range, tilt of antenna, receiver gain control, hold, self-test, and stab adjust
  • Contains fault (FLT) lamp to visually warn of system operation
  • Selectable ranges of 5,10,25,50,100 and 200 miles
  • Models available with 5 and 28 Vdc panel lighting (see table below)
  • Model available with gray or black face and black knobs (see table below)
  • Models available with magnetic shield dust cover to shield unit from magnetic field interference (see table below)



SPECIFICATIONS
Dimensions: 6.25" x 6.25" x 10.38" Weight: 7.8 lbs.
Pressurization: None required TSO: C63b DO-138 Env. Cat. CAKAAAXXXXXX
Part Number Monochrome Radar Indicator Description:
4001098-0201 28V dc panel lighting, black knobs and face
4001098-0202 28V dc panel lighting, black knobs and gray face
4001098-0203 5V dc panel lighting, black knobs and face
4001098-0204 5V dc panel lighting, black knobs and gray face
4001098-0205 5V dc panel lighting, black knobs and gray face, magnetic shield


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
4001098-0201
- Monochrome Radar Indicator
Price Condition Status
RFQ RFQ RFQ
4001098-0203
- Monochrome Radar Indicator
Price Condition Status
RFQ RFQ RFQ
4001098-0205
- Radar Indicator
Price Condition Status
$500.00 SV OUTRIGHT REQUEST LEAD TIME
