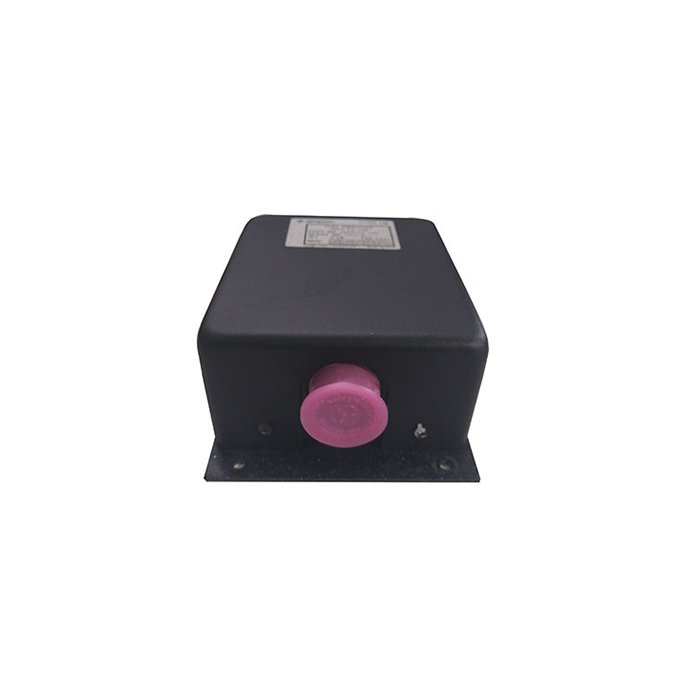

Picture of product FA-200

Part #: 2594733-200

Model: FA-200

NSN:

5895-01-030-3790

OEM:

Honeywell

Desc:

Flag Amplifier

Part Number :



FA-200
FEATURES
  • Receives low level valid signals from both localizer and glideslope NAV receivers and converts into high level signals (28VDC to ground)
  • Provides high level output required on autopilots and flight director systems
  • Enclosed unit with flanges for mounting on flat surfaces
  • Furnishes a relay controlled low level signal which can be used for display biasing
  • Amplifier components contained on printed wiring board, utilizing a harness for input-output connections



SPECIFICATIONS
Weight: 1.0 lbs. Dimensions: 2.11"H x 3.97"W x 5.65"L
Power Requirements: 26VAC +-10%, 400 +- 20Hz single phase, 20 ma max Output Signal: VOR/LOC or GS = 28VDC, 200ma max
Part Number: Description:
2594733-200 Flag Amplifier



2594733-200
- Flag Amplifier

NSN: 5895-01-030-3790

Price Condition Status
$300.00 SV OUTRIGHT REQUEST LEAD TIME
