Part #: MI-585277-1

Model: DI-2007

OEM:

Honeywell

Desc:

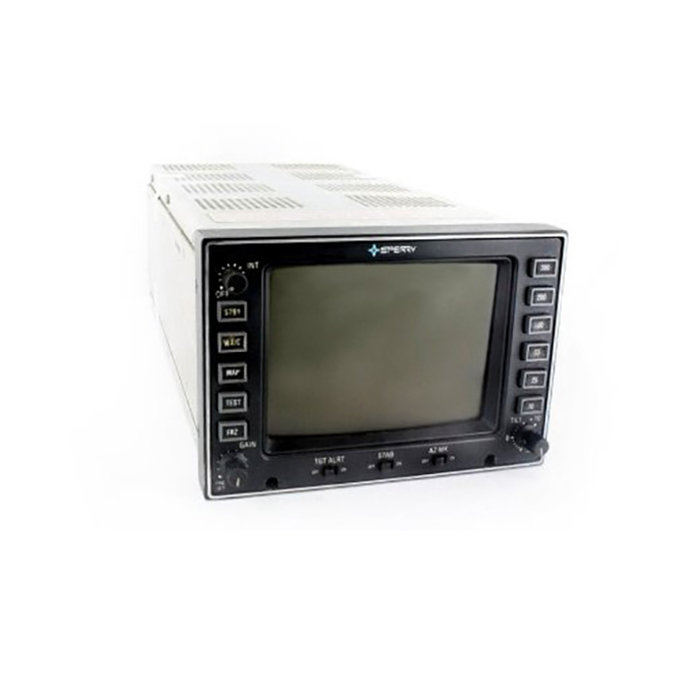

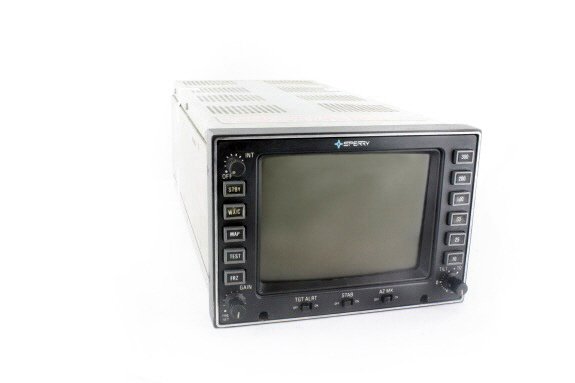

Color Radar Indicator

Part Number :



DI-2007
FEATURES
  • Slimline type color radar indicator used in Primus 300SL Radar System
  • Target returns displayed at one of four video levels
  • Models available with gray or black panel color (see table below)
  • 5VAC/DC or 28VDC panel lighting selectable by switch at rear of unit



SPECIFICATIONS

Dimensions: 6.25"W x 4.38"H x 12.75"D Weight: 10.6
TSO: Category /A1B1/AKXXXXXXABBBB, Class 7
Part Number: Description:
MI-585277 gray panel color
MI-585277-1 black panel color
MI-585277-2 Not a DI-2007, This part number for DI-2008 Primus 200 indicator
MI-585277-3 Not a DI-2007, This part number for DI-2008 Primus 200 indicator
MI-585277-4 gray panel color
MI-585277-5 black panel color


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



MI-585277-1
- Color Radar Indicator
Price Condition Status
RFQ RFQ RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, with the addition of the Avtech Digital Switching Unit (DSU) P/N 6001-1-1. List price for this unit is approximately $12000.
No, the output voltage from the RT-3001 is more than the DI-2007 indicator can handle and will cause expensive, unrepairable damage to the unit. This information is outlined in Sperry technical letter 23-1986-01.

The Primus 300 Slimline system consists of the DI-2007 indicator, RT-3002 receiver/transmitter, and AP-3001 antenna pedestal.
As of January 2010, the only Multi Function Displays that are compatible with the Primus 300 or Primus 400 radar systems are the Honeywell MFRD and the Universal MFD-640. For pricing and additional information on these MFDs, please submit an RFQ to SEA today.
