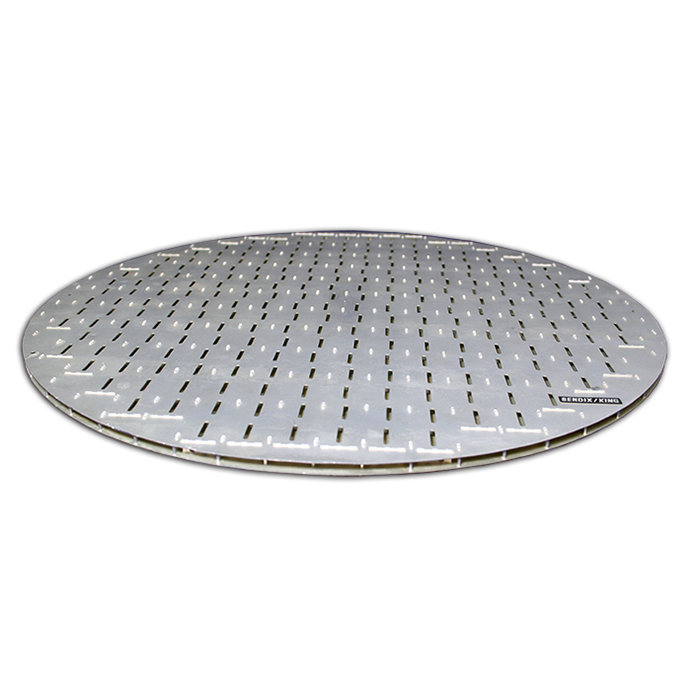

Picture of product AA-5518B

Part #: 3614165-5518

Model: AA-5518B

NSN:

5985-01-315-5916

OEM:

Honeywell

Desc:

18" Antenna Array

Part Number :


AA-5518B
FEATURES
  • 18" phased array antenna
  • Used on RDS-84/86 systems
  • DO-173, DO-160A Env. Cat.
  • F2A/JL/XXXXXXXXXXX, C63c, Class 7
  • King P/N 071-1328-00



SPECIFICATIONS
D Max: 18.05 MIn gain: 31.0 db
max beam width -3db: 5.5° max beam width -12db: 10.6°
1st sidelobe: -25db Max max input vswr: 1.4 : 1
power handling capability w/out pressurization: 3KW at 55000 ft. max weight: 2.2 lbs
Part Number: Description:
3614165-5518 18" Array Antenna / King PN: 071-1328-00



Serial # K1493
Condition SVC
Mods None
Tag Date 01/05/16
Shop Southeast Aerospace Inc.
Warranty 6 Months
3614165-5518
- 071-1328-00 Antenna Array

NSN: 5985-01-315-5916

Price Condition Status
$500.00 SV OUTRIGHT 1 IN STOCK
