Part #: 3614165-5510

Model: AA-5510B

NSN:

5985-01-315-5917

OEM:

Honeywell

Desc:

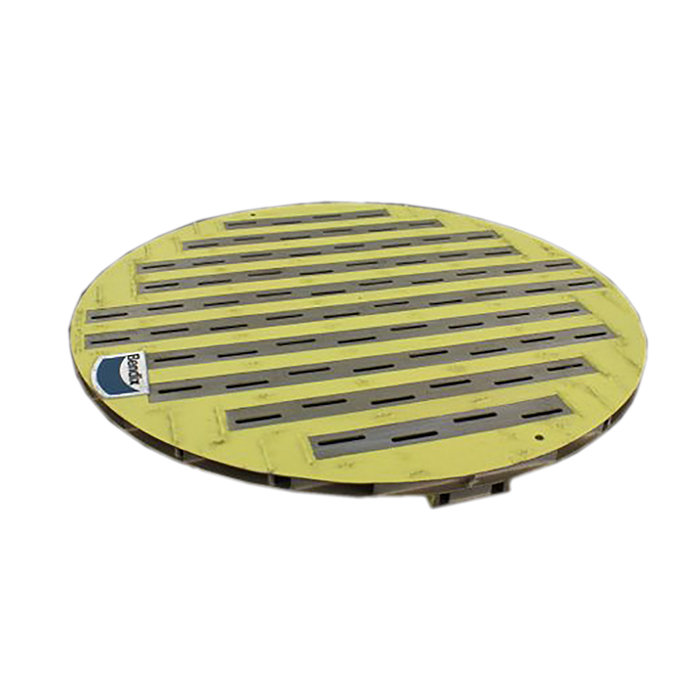

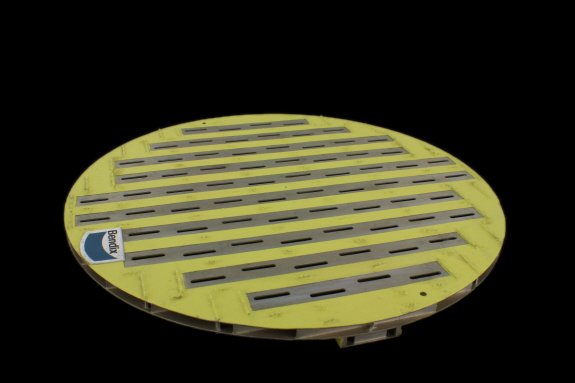

10 inch Antenna Array

Part Number :
Bendix logo

AA-5510B
FEATURES
  • 10" phased array antenna
  • Used on RDS-81/82/84/86 systems
  • DO-173, DO-160A Env. Cat.
  • F2A/JLY/XXXXXXXXXXX, C63c, Class 7
  • King P/N 071-1316-00



SPECIFICATIONS
D Max: 10.03 MIn gain: 26.0 db
max beam width -3db: 10° max beam width -12db: 19°
1st sidelobe: -18db Max max input vswr: 1.4 : 1
power handling capability w/out pressurization: 3KW at 55000 ft. max weight: .75 lbs
Part Number array antenna Description:
3614165-5510 10" Array Antenna / King PN: 071-1316-00



Serial # K1631
Condition SVC
Mods none
Tag Date 01/23/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
3614165-5510
- 071-1316-00 Radar Antenna Plate (10")

NSN: 5985-01-315-5917

Price Condition Status
$750.00 SV OUTRIGHT 1 IN STOCK
