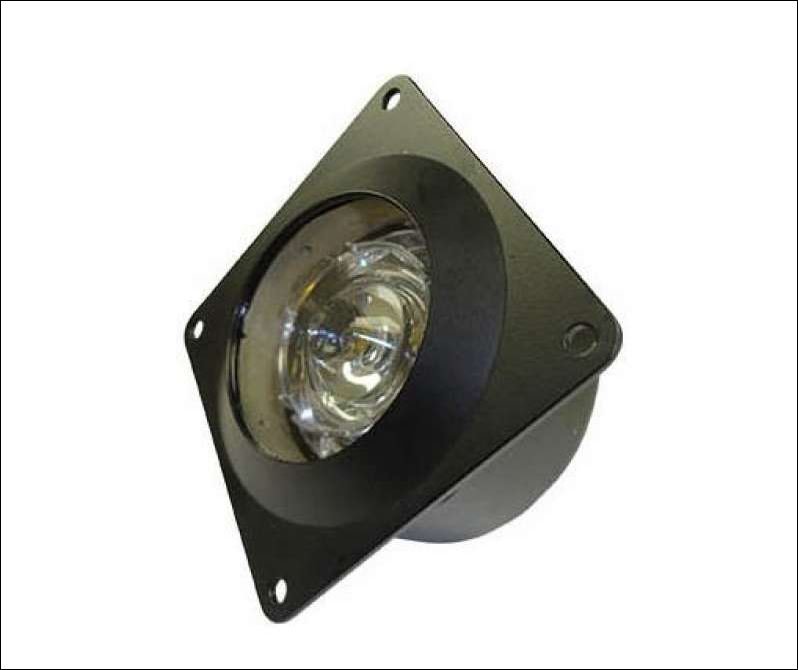

Picture of product 728-1027-001

Part #: 728-1027-001

NSN:

6210-01-617-4502

OEM:

Hoffman

Desc:

Covert Infrared Beacon

Part Number :






COVERT IR BEACON





FEATURES



  • Engineered and built to withstand the harsh and demanding marine environment
  • Designed specifically for marine use, it is a drop-in replacement for older legacy products

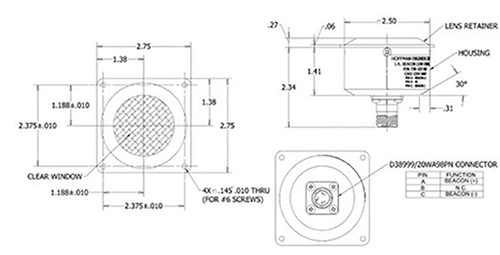

SPECIFICATIONS

HOUSING MATERIAL: 6061-T4 Aluminum per QQ-A-250/11 RETAINER & HOUSING FINISH: Anodized Aluminum per MIL-8625
lens retainer material: 6061-T6 Aluminum per QQ-A-250/11 HOUSING & RETAINER COLOR: Black
POWER REQUIREMENTS: Used with Hoffmans 730-1005-001 controller WEIGHT: 0.62 lbs. Max
OUTPUT: Beam 1/2 Angle 15 Degrees









Part Number Description:
728-1027-001 Covert Infrared Beacon



728-1027-001
- Covert Infrared Beacon

NSN: 6210-01-617-4502

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
