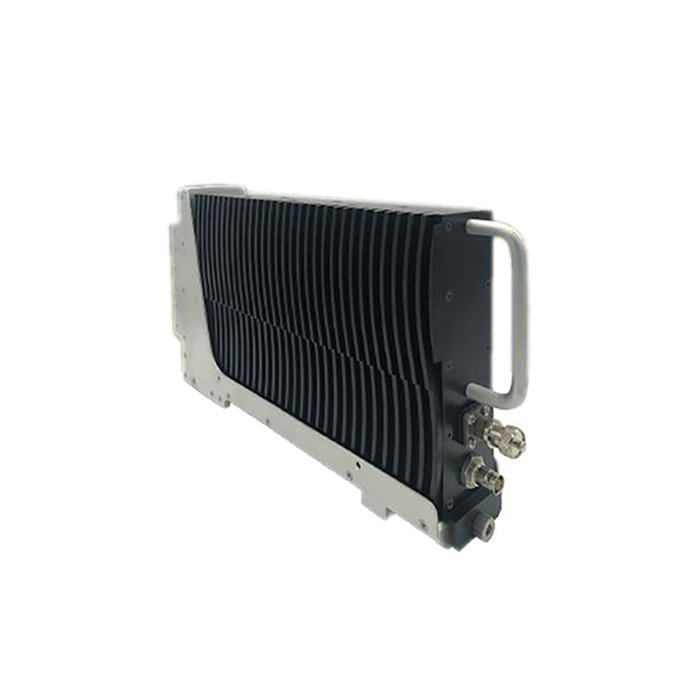

Picture of product GDR-2524U

Part #: 42-033010-0001

Model: GDR-2524U

OEM:

Genesys Aero

Desc:

Genesys Digital Radio

Part Number :






FEATURES
  • High SWaP-C savings (Small, light weight, with high reliability)
  • 16 or 25 watts transmit power
  • 225.000 to 399.975 MHz
  • MIL-STD-810G and DO-160G environmental qualifications
  • MIL-STD-704E; 28VDC Power
  • TSO-C128, DO-178C: Level A software
  • Embedded RS-232 and ARINC 429 control bus
  • UHF main and guard full time reception
  • Tunable UHF guard receiver with selectable on/off
  • Non-ITAR



SPECIFICATIONS

AM Modulation: >85% with 0.25 to 3.0 Vrms audio input, ALC Width: 2.22” (56.39mm) (including single tray)
Height: 7.10” (180.34mm) (including single tray) Depth: 11.60” (294.64mm) (including single tray)
Weight: 5.6 lbs (2.54 kg) (including single tray) Environmental Compliance: RTCA/DO-160G, MIL-STD: 810G
Power Requirements: MIL-STD: 704EG; 28 VDC, 5.6 amps typical TX @ 28 VDC, 10 amps maximum TX @ 18 VDC, 0.8 amp typical RX @ 28 VDC Control Buses: 2 each ARINC 429 RX, 1 ea. ARINC 429 TX, 2 each RS-232
Antenna Connectors: 1 BNC for UHF main and guard receivers Discrete Inputs: On/off control, on when pulled low, Emergency tuned to 243 MHz when pulled low, frequency fully, programmable
Frequency Stability: <2 PPM Audio Loads: 150 to 600 Ohm loads permitted, factory set for 100 mW into 150 Ohm load
TX Power: 25 Watts TX Distortion: <5% at 1 KHz AM with 85% AM
TX Duty Cycle: 20%, 1 min. on 4 min. off TX Modulation: Audio Flat -3 to +1 dB from 0.3 to 2.5 KHz
Audio outputs: Main RX audio 10 to 100 mW bench adjustable, Sidetone audio 10 to 100 mW bench adjustable RX Performance: DO-187 B Class D Receiver compliant with 25 kHz channel spacing
RX Selectivity: -6 dB maximum@ ±8.0 kHz, -40 dB minimum @ ± 17.0 kHz, -60 dB minimum @ ± 22.0 kHzRX Rx sensitivity: >-105 dBm typical, 30% AM 6dB SINAD
Antenna Connectors: 1 BNC for UHF main and guard receivers Main Receiver: Range 225.000 to 399.975 MHz
Preset Channels: Up to 100, dependent on control display Guard Receiver: Fully UHF band tunable on shared antenna port





Part Number: Description:
 42-033010-0001 Genesys Digital Radio

















42-033010-0001
- Genesys Digital Radio
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
