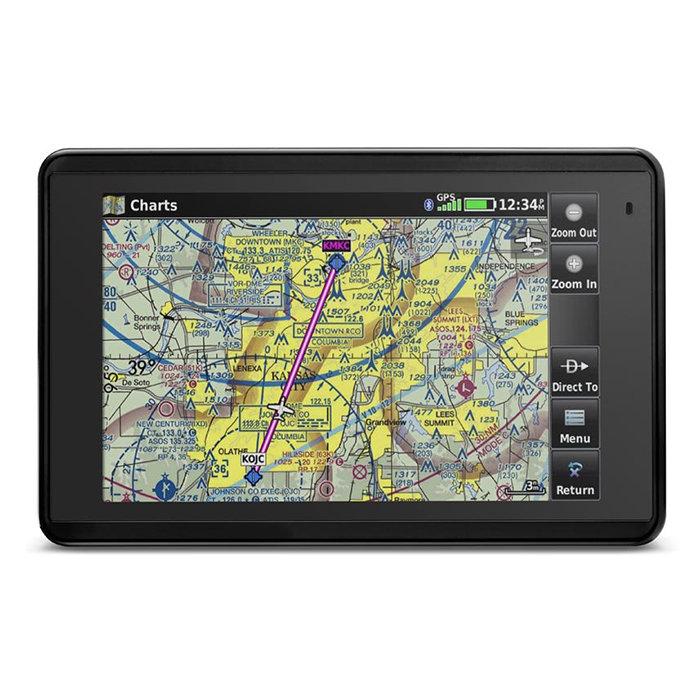

Picture of product aera 660

Part #:

Model: aera 660

OEM:

Garmin

Desc:

Portable Aviation GPS (North America)

Part Number :

FOR REFERENCE ONLY



aera 660 Aviation Portable GPS
FEATURES
  • Rugged, purpose-built portable navigator
  • Built-in GPS/GLONASS receiver
  • 5-inch sunlight-readable screen
  • Intuitive, simple touchscreen operation
  • Single power button make getting around the display a cinch
  • 3D Vision perspective view shows terrain, obstacles, airport environment, optional traffic, nearest airport and more
  • 3D Vision also displays lateral and vertical (VNAV) deviation bars and includes a 360-degree HSI
  • Wireless cockpit connectivity via Connext® streams ADS-B weather and advanced traffic from compatible devices
  • Wi-Fi® database downloads
  • Affordable Garmin Navigation Database
  • Optimized for cockpits and various types of flying
  • Mini-USB connector, microSD card slot and removable battery
  • Depending on settings & connections, pilots will receive up to 4-6 hours of battery life on a single charge
  • Interface resembles the GTN 650/750 touchscreen series
  • Comprehensive chart options provide pilots with an easy path to a paperless cockpit
  • Built in features tailored to helicopter operators, including Garmin WireAware & standard obstacle database contains Hazardous Obstacle Transmission (HOT) lines
  • Standard included accessories:
    • Yoke mount with power cable
    • Battery
    • AC adapter
    • USB cable
    • Quick start manual & documentation
  • Includes:
    • 3D Vision
    • Wireless Database Updating
    • Garmin WireAware
    • Connext
    • TargetTrend (when paired with compatible devices)
    • TerminalTraffic (when paired with compatible devices)
    • Smart Airspace
    • Preloaded Garmin FliteCharts
    • Animated NEXRAD (when paired with compatible devices)
    • SafeTaxi
    • Fuel Prices
    • VIRB XE Control
SPECIFICATIONS
physical
Dimensions: 5.5"W x 3.4"H x 8"D
Display size: 4.5"W x 2.61"H; 5.08" diagonal
Display resolution: 480 x 800; portrait & landscape orientation
display type: Touchscreen WVGA color TFT with white backlight
weight: 8.64 oz with battery; 7.23 oz without battery
performance
battery: Removable, rechargeable lithium-ion
battery life: Up to 4 hours during most daytime conditions; up to 6 hours during typical nighttime conditions
sbas/waas/glonass receiver: High-sensitivity with WAAS position accuracy
voltage Range: 10-35
ifr or vfr: VFR
traffic information services (TIS): Alerts Compatible, Yes
accepts data cards: Yes, microSD
Wireless connectivity: Wi-Fi, Bluetooth, ANT+



Part Number: Description:
010-01518-00 aera 660, North America, Portable Aviation GPS
010-01518-03 aera 660, South America, Portable Aviation GPS
