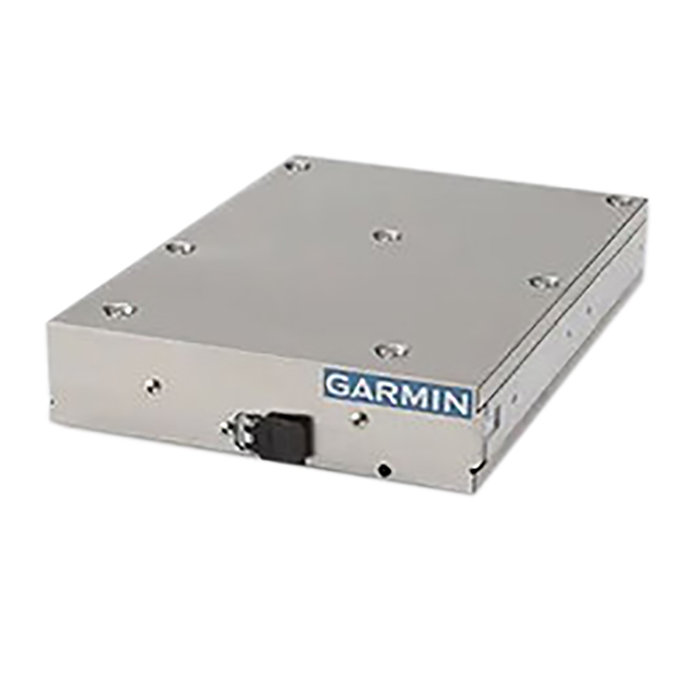

Picture of product GTX-45R

Part #:

Model: GTX-45R

OEM:

Garmin

Desc:

Remote Mount Transponder

Part Number :




GTX-45R

FEATURES

  • The GTX 45R ADS-B transponder provides Mode S ES ADS-B “Out”
  • Integrates with G3X series flight displays for fingertip control and squawk code entry
  • Provides 1090 MHz ES (Extended Squitter) output for operations at any altitude
  • Supports dual-link ADS-B “In,” which provides the most complete traffic picture
  • Streams ADS-B weather and traffic via Connext to select mobile apps as well as aera 795/796 and aera 660 portables



SPECIFICATIONS

DIMENSIONS:  (unit, rack, connectors ) 1.65” x 6.30” x 9.9” (42 x 160 x 224 mm) Weight: (unit, rack, connectors) 2.8/2.9 lbs (1.27/1.32 kgs)
Voltage range:  14/28 VDC (18/20 W Max) Transmit power:  200 W minimum
Tempertaure:   -45°C to +70°C Operating altitude: To 55,000 ft (16,800 m)
Cooling input: Not required Environmental Compliance (TSO Approved):  DO-160G
Software compliance (TSO Approved): DO-178 Levels B, C, D, E Hardware compliance (TSO Approved): DO-254 Level C
TSO compliance (Approved): TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C154c (Class A1S); TSO-C157a (Class 1); TSO-C166b (Class A1S); TSO-C195a (Class C1,C2,C3,C4) Mount type: Remote
Transponder type: Mode A/C, S and ES Squawk code selection:  Remote entry
Traffic Information Services (TIS) alerts compatible: Yes (Transponder) 1090 MHz ADS-B Out: Yes (Transponder)
Dual-link 1090 MHz and 978 MHz UAT ADS-B In: Yes (Transponder) TAS/TCAS traffic integration with ADS-B In:  Yes (Transponder)
Part Number: Description:
010-01757-06 Remote Mount Transponder
011-04287-00 Remote Mount Transponder
011-04287-01 Remote Mount Transponder





TSO C144
010-01757-06
- Remote Mount Transponder
Price Condition Status
$3,949.00 NEW OUTRIGHT REQUEST LEAD TIME
011-04287-00
- Remote ADS-B Transponder
Price Condition Status
$2,950.00 SV OUTRIGHT REQUEST LEAD TIME
011-04287-01
- Remote ADS-B In Transponder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
