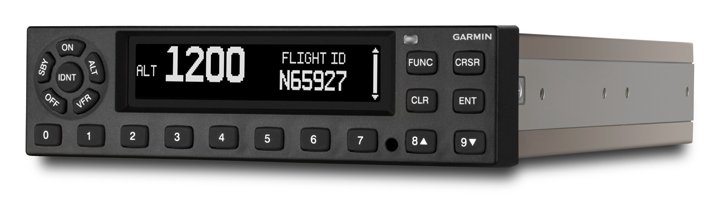

Picture of product GTX-345

Part #:

Model: GTX-345

OEM:

Garmin

Desc:

ADS-B Transponder w/ ADS-B In

Part Number :






GTX 345

FEATURES

  • Panel-Mount, All-in-one ADS-B Transponder
  • Includes Extended Squitter (ES) ADS-B Out
  • Option for built-in WAAS position source
  • Includes Dual-link ADS-B receiver
  • Adds subscription-free FIS-B when paired with compatible displays
  • Most display compatibility option, including G1000 and portable devices
  • Ideal size & fit factor
  • Remote mount versions available (See GTX 345R)
  • AML STC allowing for easy installation
  • Sunlight-readable digital display, including pressure altitude readout and flight timers
  • Dedicated buttons for numeric squawk code entry
  • Connext/Bluetooth connectivity for Garmin Pilot, ForeFlight Mobile, aera 795/796, and AHRS Attitude Data (non-certified) applications





SPECIFICATIONS
Transmiitter FREQ: 1090 MHz ± 1 MHz transmitter power: 125 W min at antenna, with max 2dB cable loss, 250 W nominal at unit
receiver frequency: 1030 MHz ± 0.01 MHz receiver sensitivity: -74 dB nominal for 90% replies
Maximum operating altitude: 55,000 feet Operating temperature: -49°F to 158°F (-45°C to +70°C)
Humidity: 95% non-condensing Cooling: External cooling not necessary




Part Number: description:
010-01216-01 Standard Kit
010-01216-06 Standard Kit w/ software variance
010-01216-21 Standard Kit w/ NVG
010-01216-26 Standard Kit w/ software variance, NVG
010-01216-41 Standard Kit w/ WAAS GPS
010-01216-46 Standard Kit w/ software variance, WAAS GPS
010-01216-61 Standard Kit w/ WAAS GPS, NVG
010-01216-66 Standard Kit w/ software variance, WAAS, NVG

011-03302-00 Unit Only Part Number
011-03302-01 Unit Only Part Number w/ software variance
011-03302-20 Unit Only Part Number w/ NVG
011-03302-21 Unit Only Part Number w/ NVG, software variance
011-03302-40 Unit Only Part Number w/ WAAS GPS
011-03302-41 Unit Only Part Number, w/ WAAS GPS, software variance
011-03302-60 Unit Only Part Number, w/ WAAS GPS, NVG
011-03302-61 Unit Only Part Number, w/ WAAS GPS, NVG, software variance





011-03302-40
- ADS-B Transponder w/ GPS (unit only)
Price Condition Status
$6,750.00 SV OUTRIGHT IN WORK
$1,950.00 SV EXCHANGE IN WORK
010-01216-00
- ADS-B Transponder - Unit Only
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-01
- ADS-B Transponder w/ ADS-B In
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-06
- ADS-B Transponder
Price Condition Status
REQUEST NEW INSTALL ONLY
010-01216-08
- ADS-B Transponder w/ ADS-B In
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-21
- ADS-B Transponder (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-26
- ADS-B Transponder (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-46
- ADS-B Transponder w/ WAAS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-61
- ADS-B Transponder w/ GPS, ADS-B In (NV w/ WAAS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01216-66
- ADS-B Transponder w/ WAAS (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-03302-00
- ADS-B Transponder Unit w/ ADS-B In
Price Condition Status
$4,950.00 SV OUTRIGHT REQUEST LEAD TIME
$1,850.00 SV EXCHANGE REQUEST LEAD TIME
011-03302-21
- ADS-B Transponder (ADS-B In, NVG)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-03302-41
- ADS-B Transponder (GPS, ADS-B In)
Price Condition Status
$5,950.00 SV OUTRIGHT REQUEST LEAD TIME
$1,950.00 SV EXCHANGE REQUEST LEAD TIME
011-03302-61
- ADS-B Transponder (GPS, ADS-B In, NVG)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.
