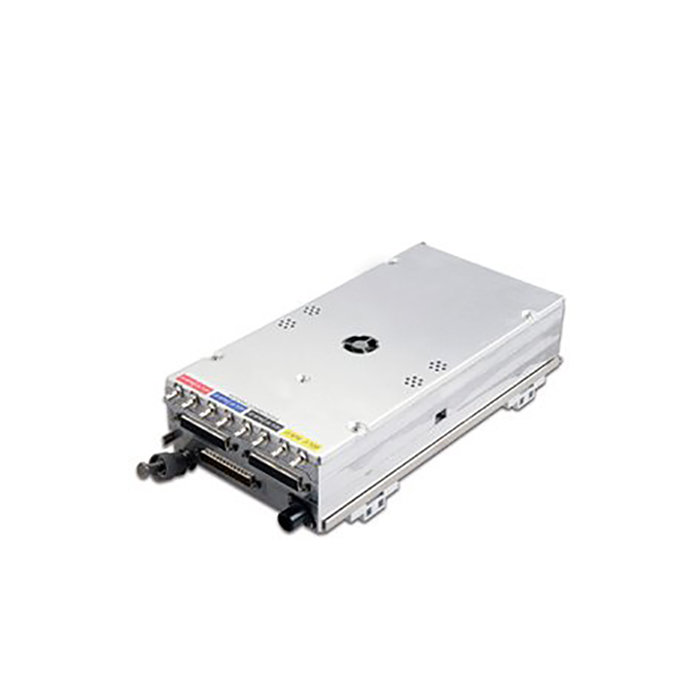

Picture of product GTS-820

Part #:

Model: GTS-820

OEM:

Garmin

Desc:

Traffic Sensor (TAS, High Power)

Part Number :


GTS-820 TAS

FEATURES
  • Advanced air traffic surveillance unit
  • Operates up to 55,000 feet
  • 250 watts of transmit power
  • Typical active interrogation range of 40 nautical miles in the forward direction
  • Recommended for faster & higher-performing aircraft
  • Passive surveillance is provided with available 1090 MHz extended squitter ADS-B "in" capability
  • Generates both aural and visual traffic advisories
  • Expanded aural alerts can specify relative target bearing, relative altitude (above/below) and range
  • Tracks up to 60 traffic targets simultaneously
  • Displays up to 30 intruder threats
  • Selectable horizontal display ranges
  • Interfaces with a variety of compatible MFDs and cockpit displays
  • Selective/directional interrogation reduces frequency congestion
  • High-Speed Data Bus (HSDB) or ARINC 429 interface capability
  • Vertical or Horizontal LRU rack mounting
  • 14/28 VDC power capability
  • Basic system consists of transmitter/receiver computer LRU, 4-channel GPA-65 power amplifier/low noise amplifier (PA/LNA) that is remotely installed near the top directional antenna to boost antenna performance
  • Typical installation includes both top-mount directional and optional bottom-mount antennas to reduce the potential for antenna "shading" of TAS interrogations - shading can cause targets to drop out during turns or maneuvers, or when the threat is positioned directly below



SPECIFICATIONS

Dimensions: 6.25"W x 2.7"H x 12.7"D Weight: 9 lbs (unit only)
Temperature: -55°C to +70°C Altitude: to 55,000 feet
Power Input:  12 or 28VDC, 40 Watts Max Cooling Input: Integrated
Compliance: RTCA DO-160E, RTCA DO-178B Level C, RTCA DO-254 Level C, TSO-C147, TSO-C166a, DO-197A,TSO-260A




Part Number: Description:
010-00562-00 Traffic Sensor (TAS, High Power)
011-01446-00 Traffic Sensor (TAS, High Power)



010-00562-00
- LRU - unit only (TAS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01446-00
- Traffic Sensor (TAS, High Power)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
$2,450.00 SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
