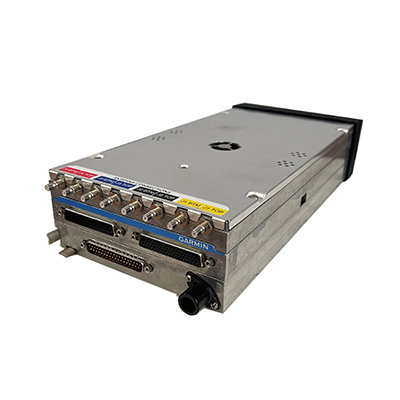

Picture of product GTS-800

Part #:

Model: GTS-800

OEM:

Garmin

Desc:

LRU - unit only (TAS)

Part Number :


GTS-800 TAS



FEATURES
  • Advanced air traffic surveillance unit
  • Lower cost option designed for light aircraft and helicopters
  • Operates up to 55,000 feet
  • 40 watts of transmit power
  • ± 10,000 foot vertical separation maximum
  • Typical active interrogation range of 12 nautical miles in the forward direction
  • Passive surveillance is provided with available 1090 MHz extended squitter ADS-B "in" capability
  • Generates both aural and visual traffic advisories
  • Expanded aural alerts can specify relative target bearing, relative altitude (above/below) and range
  • Tracks up to 60 traffic targets simultaneously
  • Displays up to 30 intruder threats
  • Selectable horizontal display ranges
  • Interfaces with a variety of compatible MFDs and cockpit displays
  • Selective/directional interrogation reduces frequency congestion
  • High-Speed Data Bus (HSDB) or ARINC 429 interface capability
  • Vertical or Horizontal LRU rack mounting
  • 14/28 VDC power capability
  • Basic system consists of transmitter/receiver computer LRU and a single top-mounted directional antenna
  • Flexibility is provided for optional dual directional antenna configurations



SPECIFICATIONS

Dimensions: 6.25"W x 2.7"H x 12.7"D Weight:  9 lbs (unit only)
Temperature: -55°C to +70°C Altitude: to 55,000 feet
Power Input: 12 or 28VDC, 40 Watts Max Cooling Input:  Integrated
Compliance: RTCA DO-160E, RTCA DO-178B Level C, RTCA DO-254 Level C, TSO-C147, TSO-C166a, DO-197A, DO-260A









Part Number: Description:
010-00519-00 LRU - unit only (TAS)
011-01356-00 LRU - unit only (TAS)



010-00519-00
- LRU - unit only (TAS)

NSN: 5895-01-676-0728

Price Condition Status
REQUEST NEW INSTALL ONLY
011-01356-00
- Traffic Sensor (TAS)
Price Condition Status
$8,650.00 SV INSTALL ONLY
$3,750.00 SV INSTALL ONLY

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
