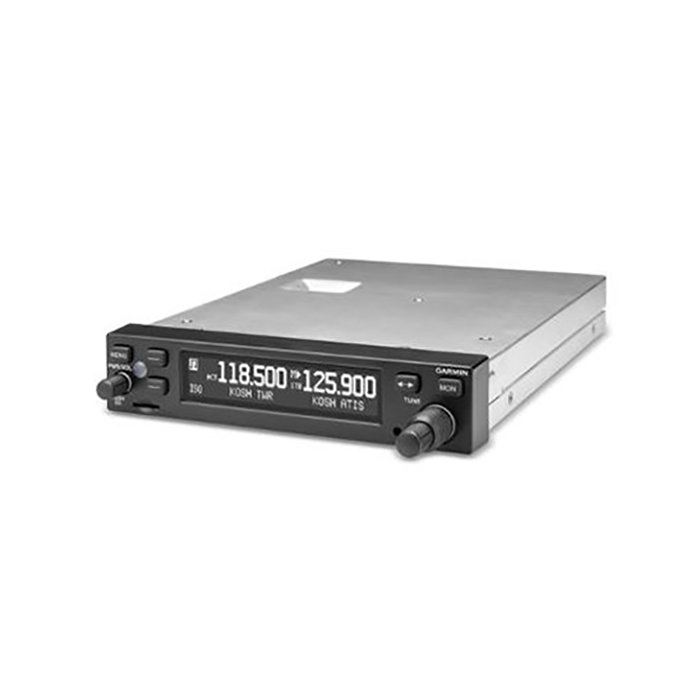

Picture of product GTR-200B

Part #:

Model: GTR-200B

OEM:

Garmin

Desc:

VHF Comm Radio

Part Number :


GTR-200B



FEATURES

  • GTR 200 provides a 150 Ω AC input impedance and supplies the microphone with an 11 V bias through 470 Ω +/- 5 percent
  • Two inputs, standard carbon or dynamic mic with integrated preamp
  • Less than 25 percent distortion when the transmitter is at 85 percent
  • Stuck mic time-out, 35 seconds time-out, reverts to receive
  • AM double sided emission designator, 6K00A3E (118-136.975 MHz)
  • Active and standby flip-flop frequencies with location and type identifiers
  • One-touch 121.5 emergency channel tuning
  • Comm frequency monitor function (listens to standby while monitoring the active)
  • 3D Audio separates active and standby frequencies as well as the intercom in headset
  • Auto-squelch listens to the natural noise in the cockpit and automatically adjusts the squelch level
  • Automatic display of the airport identifier and type after tuning a frequency from the user defined presets or a frequency list transferred from a compatible portable GPS or G3X system
  • 10 W transmit power and 25 kHz spacing
  • Large, sunlight readable display
  • Total product footprint is 1.35” tall by 6.25” wide. Has only a 9.4” behind-the-panel depth including connectors (8” without connectors).
  • Only 1.34 lbs. (1.91 lbs. with rack and connectors)
  • Optionally installed switches allow remote control of frequency flip-flop and/or pilot/co-pilot squelch
  • Volume control bar graph display
  • High-visibility alphanumeric LCD display
  • Built-in photocell for backlight control, or support for external 14V/28V lighting bus
  • Backlit keypad controls
  • Transmit status indicator
  • Receive status indicators for both active and standby (when monitored)
  • Monitor function enabled indicator
  • Built-in, 2-place stereo voice activated intercom
  • 2 mono and 1 stereo audio inputs for external systems alerts and music
  • Stores/recalls 20 user defined frequencies with labels
  • Stores/recalls previous 20 frequencies used
  • Squelch test function
  • Extensive installation assistance screens to make it easy to set up external audio sources to the correct level
  • Stuck mic time-out; returns to receive mode to prevent frequency congestion
  • 2 front panel-mounted, user-defined softkeys to assign to frequently used functions such as music on/off and pilot isolate. Can also be assigned to PTT to be used in case the installed PTT button or wiring fails.
  • MicroSD™ card slot for easy software updates
  • Mono/stereo headset detection
  • Easy installation with a standard density 37-pin connector
  • 14/28 V power




SPECIFICATIONS

Current draw¹ at 14 VDC: 0.6 A, typical when receiving, 3.0 A, typical when transmitting, 7.5 A maxiumum, 90 percent modulated into 3.1 VSWR and 11 V power input voltage Altitude range:  -1,500 ft to 55,000 ft
Operating Temperature RANGE: -20° C to +55° C Humidity: 95 percent non-condensing
Current draw¹ at 28 VDC: 0.3 A, typical when receiving, 1.40 A, typical when transmitting, 3.75 A maxiumum, 90 percent modulated into 3.1 VSWR and 22 V power input voltage Active area (WxH): 2.95" (74.98 mm) x 0.486" (12.36 mm)
Display size (WxH): 3.4" (88.0 mm) x 0.843" (21.4 mm) Viewing angle:   left 45°; right 45°; up 10°; down 30°
Resolution: 200 x 33 pixels Bezel height: 1.35" (34.29 mm)
Rack height (dimple-to-dimple): 1.375" (34.93 mm) Bezel width: 6.25" (158.8 mm)
Rack width: 6.30" (160.02 mm) GTR 200 weight: (installed with rack and connectors) 1.91 lbs (0.87 kg)
GTR 200 weight (unit only): 1.34 lbs (0.61 kg) Depth behind panel with connectors: (measured from face of aircraft panel to rear of connector backshells) 9.39" (238.51 mm)
Frequency range: 118.000 to 136.975 MHz, 25 kHz channel spacing Headset audio output:  60 mW minimum into a 150 Ω load
Audio response:  Less than 6 dB of variation between 350 and 2500 Hz Audio distortion: Less than 25 percent at rated output power
Sensitivity: SINAD greater than 6 dB when the RF level is -107 dBm with 30 percent modulation Squelch: Automatic squelch with manual override
Frequency tolerance: +/-5 ppm from -20°C to +55°C Output power:  10 W carrier minimum
Duty cycle: 20 percent Carrier noise level: At least 35 dB (SNR)



Part Number:   Description:
010-0187-41  VHF Comm Radio and Nav







010-01087-41
- VHF Comm Radio
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02980-40
- G3X Remote VHF Com Radio
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
