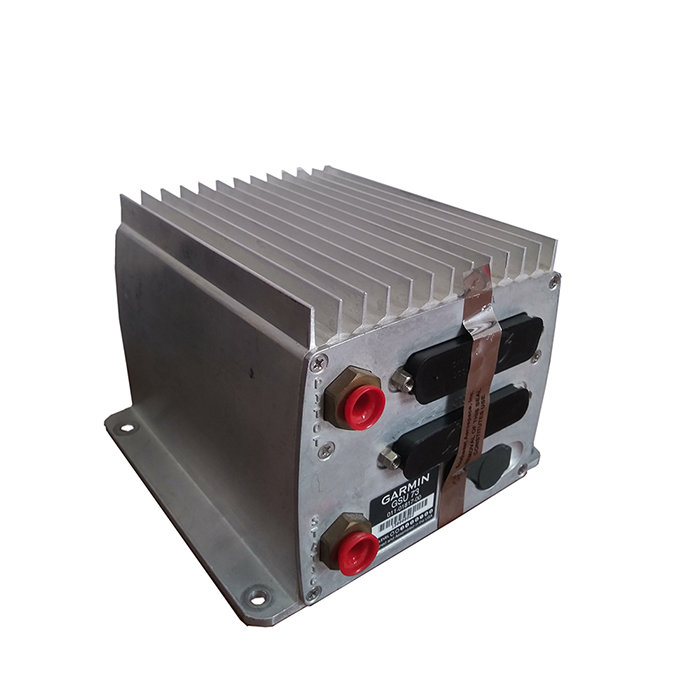

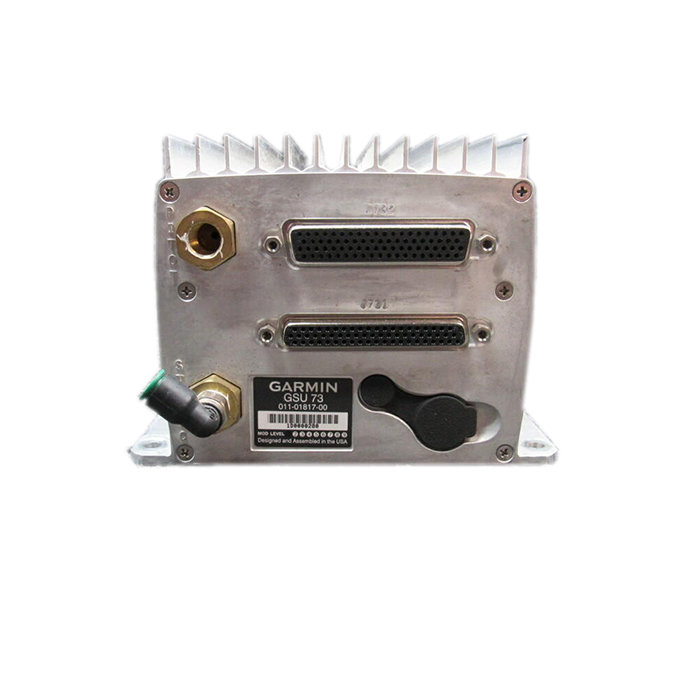

Part #: 011-01817-00

Model: GSU-73

OEM:

Garmin

Desc:

ADAHRS Interface Unit

Part Number :





GSU-73

FEATURES

  • LRU providing Attitude Heading Reference (AHRS) and Air Data information as well as Engine/Airframe sensors
  • Intended for the G3X installed into experimental and light sport (LSA) aircraft
  • Interfaces to remote mounted GMU-22 magnetometer for heading information
  • Computes Outside Air Temperature (OAT) and True Airspeed (TAS) from inputs provided by the GTP-59
  • Includes two ports to connect to aircraft pitot pressure and static source (1/8-27 ANPT female and male threads)
  • Pressure Altitude interface - CAN (1)
  • Density Altitude interface – RS232 (2 TX/2 RX)
  • Vertical Speed interface - ARINC 429 (4 RX/2 TX)
  • Indicated / True Airspeed interface – GMU 22 magnetometer (1 RS-232 TX/ 1 RS-485 RX)
  • Magnetic Heading engine/airframe interface – 27 analog inputs
  • Pitch Angle engine/airframe interface – 4 digital inputs
  • Roll Angle engine/airframe interface – 4 discrete inputs
  • Linear Accelerations, Pitch, Roll, Yaw Rotation engine/airframe interface – 2 discrete outputs





SPECIFICATIONS
Dimensions:  5.50” W x 3.96” H x 5.50” D   Weight:  3.1 lbs.
Voltage:  14 or 28 VDC Current Draw:
Part Number: Description:
011-01817-00 ADAHRS Interface Unit







011-01817-00
- ADAHRS Interface Unit
Price Condition Status
$7,450.00 NEW OUTRIGHT REQUEST LEAD TIME
$1,450.00 SV EXCHANGE REQUEST LEAD TIME
$3,000.00 SV OUTRIGHT REQUEST LEAD TIME
