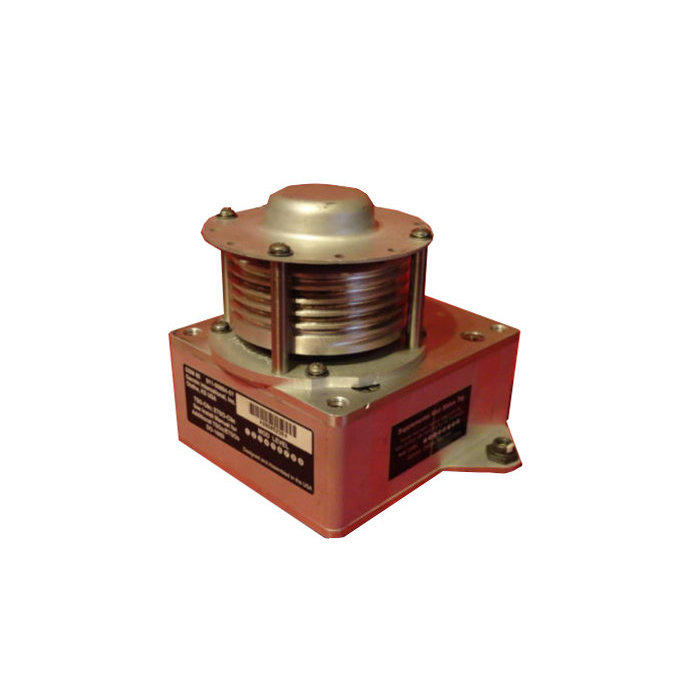

Picture of product GSM-85

Part #: 011-00894-00

Model: GSM-85

OEM:

Garmin

Desc:

Servo Motor (Spiral Medium Torque)

Part Number :


GSM-85
FEATURES
  • Servo gearbox used with Garmin GSA80/81 autopilot servos1
  • Available in 3 torque ranges – low, medium, and high - for each available mechanical interface configuration (spiral, continuous, sprocket, etc.)



SPECIFICATIONS

WEIGHT : See PN table
dimensions: see Install Manual for PNs
certification: TSO-C9c, ETSO-C9c







part number:  description:
010-00304-08 Servo Motor (Spiral Medium Torque)
010-00304-11 Servo Motor (Spiral Medium Torque)
011-00894-00 1.38 lbs. (0.63 kg), Spiral Capstan, Low Torque
011-00894-02 1.50 lbs. (0.68 kg), Continuous Travel Capstan, Low Torque
011-00894-04 1.61 lbs. (0.73 kg), Sprocket Capstan, Low Torque
011-00894-06 1.42 lbs. (0.64 kg), Spiral Capstan, Low Torque, Ball Bearing
011-00894-07 1.38 lbs. (0.63 kg), Spiral Capstan, Low Torque
011-00894-08 1.40 lbs. (0.64 kg), Spiral Capstan, Medium Torque
011-00894-09 1.38 lbs. (0.63 kg), Universal Hub, Medium Torque
011-00894-10 1.40 lbs. (0.64 kg), Spiral Capstan, MediumTorque
011-00894-11 1.44 lbs. (0.65 kg), Spiral Capstan, Medium Torque
011-00894-14 1.63 lbs. (0.74 kg), Sprocket Capstan, Medium Torque





011-00894-00
- Servo Mount
Price Condition Status
$3,250.00 SV OUTRIGHT IN WORK
$1,950.00 SV EXCHANGE IN WORK
011-00894-10
- Servo Mount
Price Condition Status
$3,250.00 SV OUTRIGHT IN WORK
$1,950.00 SV EXCHANGE IN WORK
010-00304-00
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-02
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-04
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-06
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-07
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-08
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00304-10
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00304-11
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00304-14
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
011-00894-02
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00894-04
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00894-06
- Servo Mount-Spiral Capstan,Low Torque,Ball Bearing
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00894-07
- Servo Mount
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
011-00894-08
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$1,450.00 SV OUTRIGHT REQUEST LEAD TIME
$850.00 SV EXCHANGE REQUEST LEAD TIME
011-00894-09
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-00894-11
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00894-14
- Servo Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
