Part #:

Model: GSA-9000

OEM:

Garmin

Desc:

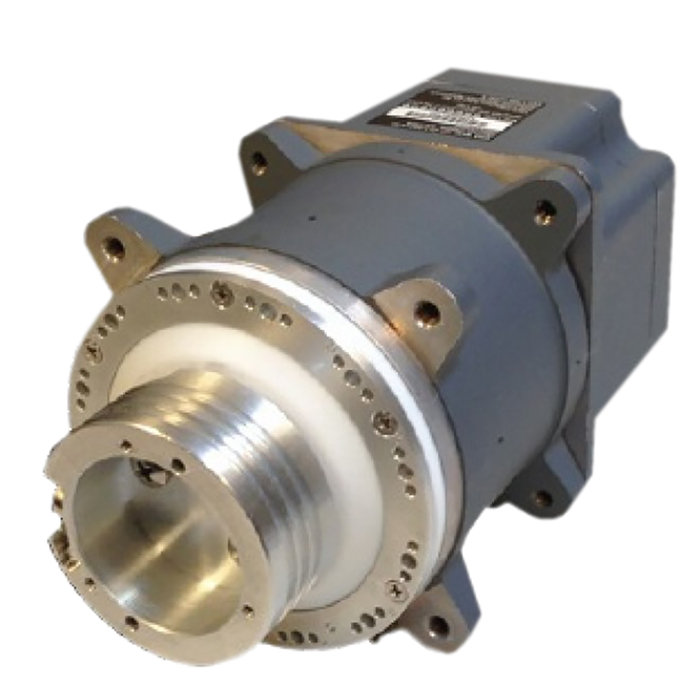

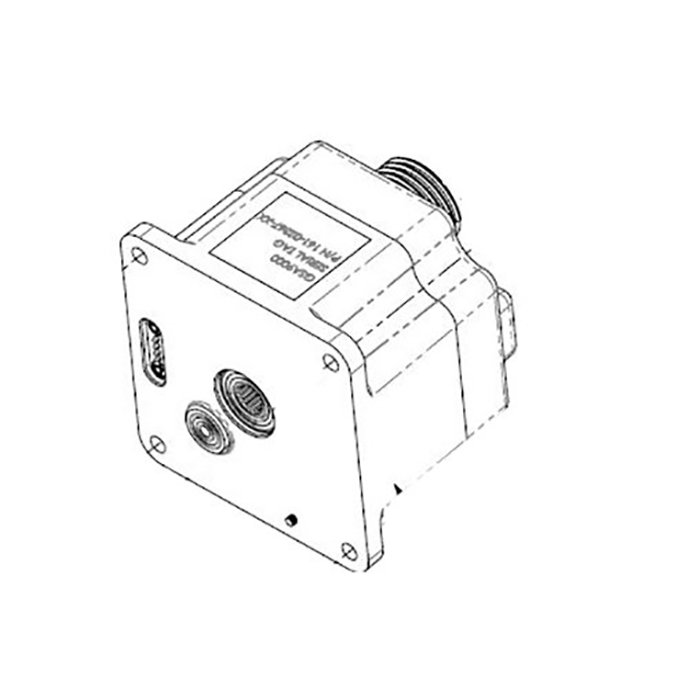

Servo Actuator

Part Number :



GSA-9000



FEATURES

  • GSA 9000 contains two microprossors which process the incoming RS-485 data
  • Drives single flight-control axis of aircraft in order to maintain proper aircraft attitude and /or heading
  • Dual processor architecture  controls the engagement of the drive clutch
  • Receives serial RS-485 data packets from two GIA Intergrated Avionics units
  • Software and configuration tells it the gains needed to operate for this installation
  • Provides monitoring to ensure the capstan speed and output torque do not exceed certification limits



SPECIFICATIONS
input voltage range: 28 VDC (80 V surge)some degradation of torque /speed capability will occur when operated below 27.5 VDC weight: (Unit Weight 011-02213-00, 2.06 lbs. 0.93 kg), ( HIRF, Unit Weight 011-02213-10, 2.12 lbs. 0.96 kg ) (Right Angle Backshell Connector Kit Weight 011-02306-00, 0.11 lbs. 0.05 kg)
operating temperature: -55°C to +70°C POWER CONSUMPTION: 161 W maximum, at 32.5 RPM and 250 in-lbs
ALTITUDE rANGE: -15,000 ft to 55,000 ft gsa 9000 software: RTCA/DO-178B Level A
SPEED & TORQUE (011-02213-00): Max no load Speed 50 rpms, Max torque 250-in lbs.
Part Number: Description:
011-02213-00 Servo Actuator
011-02213-10 Servo Actuator



010-00802-10
- Servo Actuator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02213-00
- Servo Actuator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
