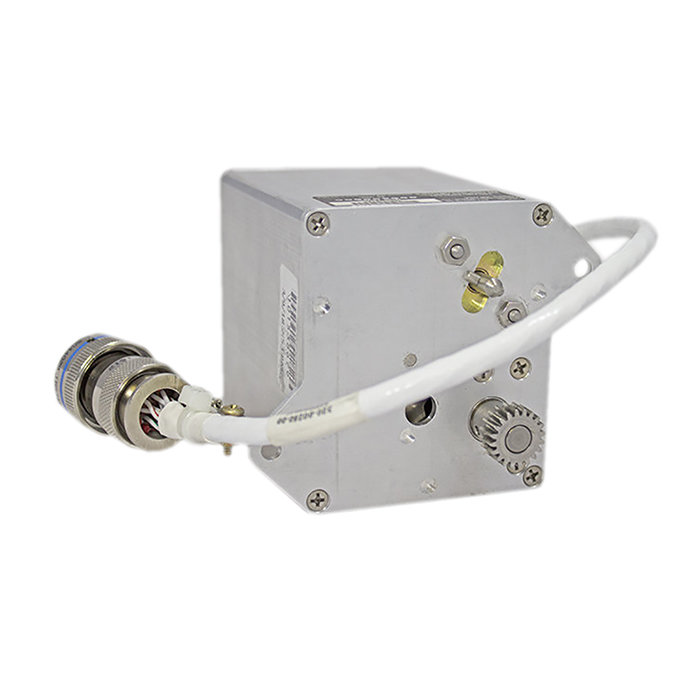

Picture of product GSA-81

Part #: 011-00878-20

Model: GSA-81

OEM:

Garmin

Desc:

Servo Actuator

Part Number :


GSA-81
FEATURES

  • Servo actuator providing automatic control of a single flight axis (pitch, roll, or yaw)
  • Contains a motor-control and monitor circuit board as well as solenoid and brushless DC motor
  • All enclosed in extruded aluminum housing
  • Receives serial RS-485 data packets from two GIA Integrated Avionics units
  • Monitor board independently monitors servo speeed, output torque, and controls engagement of the drive-clutch solenoid

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.



SPECIFICATIONS
weight: PN -00, -10: 2.18 lbs, PN -20: 2.26 lbs temperature range: -55C to +70C
altitude range: -15000 to 55000 ft. software: RTCA/DO-178B
max operation: 12 days continuous max speed: 14 RPM
max torque: 160 in-lbs power consumption: 1.61 amps max

Part Number: description:
010-00303-00 Servo Actuator (Catalog PN)
010-00303-10 Servo Actuator (Catalog PN)
010-00303-20 Servo Actuator (Catalog PN)
011-00878-00 Servo Actuator, Unit only PN
011-00878-10 Servo Actuator, Unit only PN
011-00878-20 Servo Actuator, Unit only PN



Serial # 1A1036587
Condition SV
Mods -
Tag Date 12/04/24
Shop Garmin
Warranty 6 Months
Serial # 1A1010508
Condition SV
Mods None
Tag Date 05/08/24
Shop Garmin
Warranty 6 Months
Serial # 1A1010580
Condition SV
Mods None
Tag Date 04/08/24
Shop Garmin
Warranty 6 Months
011-00878-00
- Servo Actuator

NSN: 6615-01-592-5986

Price Condition Status
$3,450.00 SV OUTRIGHT 4 IN STOCK
$1,750.00 SV EXCHANGE 4 IN STOCK
011-00878-20
- Servo Actuator
Price Condition Status
$4,450.00 SV OUTRIGHT 3 IN STOCK
$1,750.00 SV EXCHANGE 3 IN STOCK
011-00878-10
- Servo Actuator

NSN: 1680-01-597-6872

Price Condition Status
$4,750.00 SV OUTRIGHT 1 IN STOCK
$1,750.00 SV EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00303-00
- Servo Actuator (Catalog PN)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
010-00303-10
- Servo Actuator (Catalog PN)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
