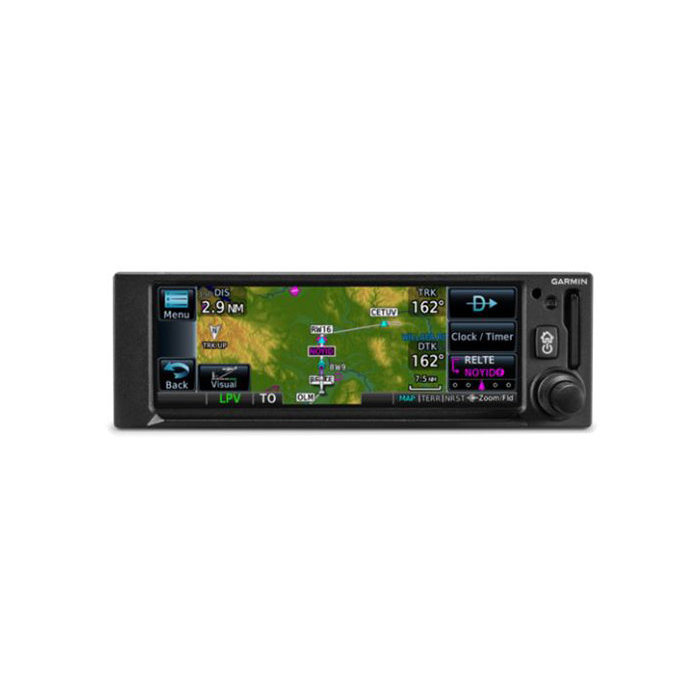

Picture of product GPS-175

Part #:

Model: GPS-175

OEM:

Garmin

Desc:

Navigator

Part Number :




GPS-175

FEATURES

  • Slim, all-in-one touchscreen GPS navigator for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft
  • Take advantage of WAAS GPS navigation with LPV approaches, which offer minimums as low as 200’ to greatly expand your operational capability
  • Pairs with select Garmin flight displays, or integrates directly with your existing course deviation indicator (CDI) for cost-effective installation¹
  • Visualize your entire flight plan, including departures, arrivals, instrument approaches, holding patterns and more on a rich, dynamic global moving map
  • Wirelessly transfer flight plans and stream weather, traffic, GPS position and backup attitude via built-in Connext® technology to the Garmin Pilot™ app and more
  • With GPS 175 As you enter waypoints, our FastFind feature automatically begins searching for the nearest identifier as soon as you start typing
  • Smart Airspace™ feature automatically highlights airspace close to your current altitude and de-emphasizes airspace away from the current altitude
  • The SBAS/WAAS-certified GPS receiver can allow you to fly GPS-guided LPV glidepath instrument approaches down to 200’, greatly expanding your operational capability
  • You can also access newer localizer performance (LP) and all area navigation (RNAV) approaches
  • GPS 175 navigator lets you create and execute custom holding patterns over an existing waypoint or user-defined waypoint
  • The GPS 175 navigator lets you create and execute custom holding patterns over an existing waypoint or user-defined waypoint
  • GPS 175 can display ADS-B traffic targets as well as subscription-free ADS-B weather data in the U.S.
  • Share ADS-B traffic and weather information if you’re equipped with a compatible ADS-B solution



SPECIFICATIONS

tso applicability: C146e Class 3; C157b Category 1; C165a; C195b Category B1, B3, B5, B7 UNIT WEIGHT: 1.3 lbs (0.6 kg)
DISPLAY SIZE: 4.8" (122.5 mm) diagonal MAXIMUM ALTITUDE: 35,000 ft
dISPLAY RESOLUTION: 732 pixels (W) x 240 pixels (H) INPUT VOLTAGE RANGE: 9 VDC - 33 VDC
UNIT BEZEL HEIGHT: 2.02" (51.0 mm) MAXIMUM DISPLAY BRIGHTNESS: 260 fL
UNIT BEZEL WIDTH: 6.25" (159.0 mm) OPERATING TEMPERATURE RANGE: -20° C to 55° C (-4° F to 131° F)
UNIT DEPTH WITH CONNECTORS: 6.58" (167 mm) (measured from face of aircraft panel to rear of connector backshells) BLUETOOTH VERSION: 4.2
NUMBER OF GPS CHANNELS: 15 (12 GPS and 3 GPS/WAAS/SBAS) LAT/LON POSITION ACCURACY: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
MAXIMUM VELOCITY: 1,000 knots (above 60,000 feet) POSTION UPDATE INTERVAL:
Part Number: Description:
010-01822-50 GPS Navigator


010-01822-50
- GPS Navigator (Americas)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01822-60
- GPS Navigator (International)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-04377-00
- GPS Navigator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
