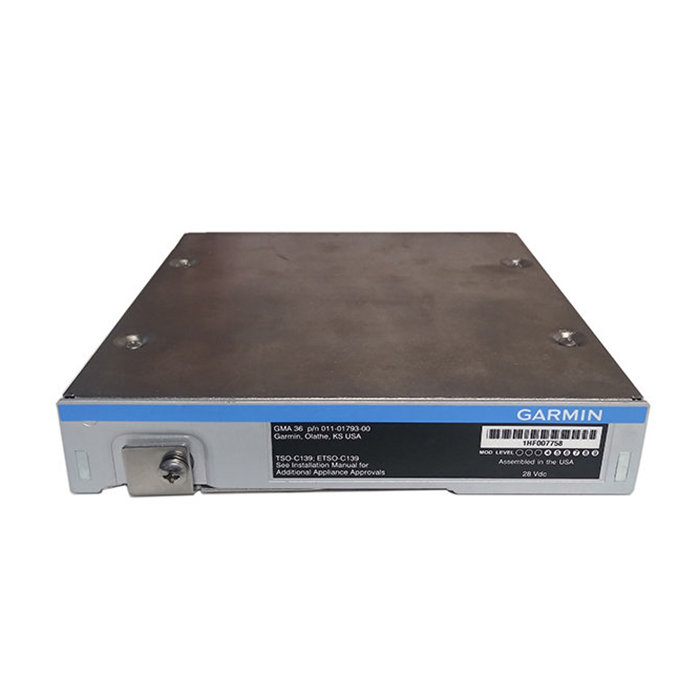

Picture of product GMA-36

Part #: 011-01793-00

Model: GMA-36

OEM:

Garmin

Desc:

Remote Mount Audio Processor

Part Number :



GMA-36



FEATURES

  • Remote mounted audio processor and marker beacon
  • Provides same functions as an audio panel and can be configured to support a wide range of aircraft
  • Uses RS-232 or Ethernet to communicate with the control unit
  • Includes digital signal processor (DSP) that cleans up audio using advanced filtering techniques and provides VOX control for mic inputs
  • Features high-quality digital-to-analog converters and headset amplifier circuits used to minimize noise and distortion
  • Provides speaker output that may be used as a cockpit speaker or for a PA system to address passengers
  • Includes digital recording and playback feature
  • Includes Bluetooth to wirelessly connect smartphones and tablets to stream audio and make phone calls




SPECIFICATIONS

Modular Rack WIDTH: 1.34 inches (34.0 mm) Modular Rack height: 6.30 inches (160.0 mm)
Remote Rack Width: 1.44 inches (36.4 mm) Remote Rack  Height: 6.79 inches (172.4 mm)
Depth w/connectors (Modular and Remote Mounted Standalone): 8.24 inches (209.3 mm) Weight (Unit Only): 1.9 lbs (0.86 kg)
unit Software: RTCA/DO-178B levels A, B, C, D, and E Connector Kit Weight: 0.2 lbs. (0.09 kg)
Weight (Installed with modular rack and connectors): 2.8 lbs (1.27 kg) Weight (Installed with remote mounted standalone rack and connectors): 3.0 lbs (1.36 kg)
Part Number: Description:
011-01793-00  Remote Mount Audio Processor













Serial # 1HF005707
Condition SV
Mods 1-3
Tag Date 02/24/22
Shop Garmin
Warranty 6 Months
011-01793-00
- Remote Mount Audio Processor
Price Condition Status
$3,750.00 SV OUTRIGHT 1 IN STOCK
$1,450.00 SV EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
