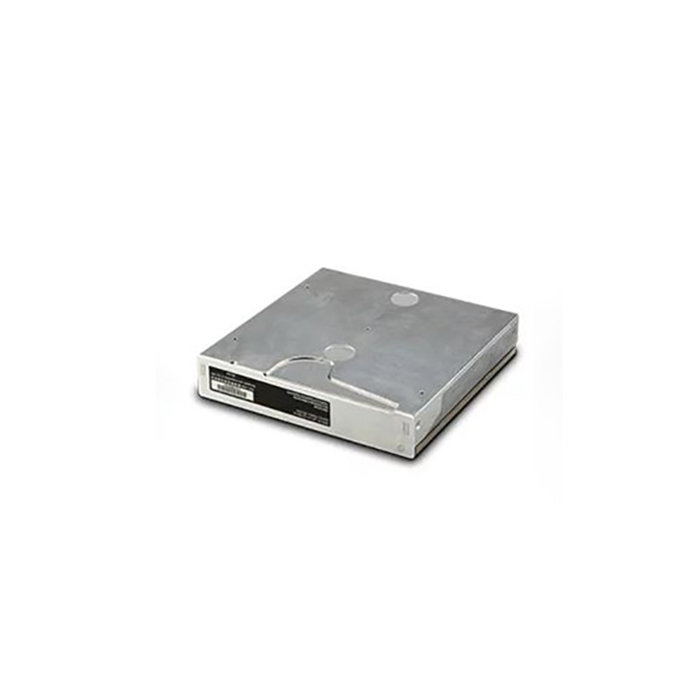

Picture of product GMA-35

Part #:

Model: GMA-35

OEM:

Garmin

Desc:

Remote Mount Audio Processor & Marker Beacon

Part Number :



GMA-35



FEATURES

  • Remote mounted for use with the GTN 750 series
  • 6 or 7 position intercom: pilot, copilot, 4 or 5 passengers
  • 3 stereo headset amplifiers: pilot, copilot and passengers
  • 2 stereo music source inputs
  • Up to 8 selectable intercom operational modes with synoptic intercom routing
  • Independent pilot, copilot and passenger intercom volume controls
  • Individual VOX processing for each MIC input
  • Automatic selection of radio audio source when corresponding MIC is selected
  • Automatic volume adjustments based on ambient sound levels
  • Flexible split COMM transceiver function. Copilot may transmit and receive on one COMM while pilot transmits and receives on another.
  • Marker beacon receiverT



SPECIFICATIONS
physical dimensions: 6.29"W x 1.3"H x 7.79"D (16 x 3.3 x 19.8 cm) telephone interface: dedicated full-duplex tel interface (no PTT keying required)
weight: 2.4 lb (1.1 kg) ics (intercom system): 6 to 7 position intercom (individual VOX processing for each of the mic positions)
ics isolation modes: 8 - synoptic graphical selection transceivers: 3 - COM1, COM2, COM3
additional receiver inputs: 5 - NAV1, NAV2, (RCVR3), (RCVR4), (RCVR5) music source input: 2 Stereo music source inputs
music input impedance: 600 Ohms music frequency response: 20Hz - 20kHz
pa function: Yes marker beacon: dual sensitivity
manual squelch: Yes automatic squelch: Yes
manual vox level controls: 3 (pilot, co-pilot/passengers) avionics squelch: Yes (SQUELCH PROCESSING FOR NOISE REDUCTION)
fAILSAFE: Yes (CONNECTS PILOT PTT, MIC AND HEADSET TO COM1 IF UNIT IS TURNED OFF) clearance recorder: Yes
split com: Yes (COPILOT TRANSMITS AND RECEIVES ON COM2 WHILE PILOT TRANSMITS AND RECEIVES ON COM1)



Part Number: Description:
010-00831-00 Catalog Part Number, Digital Remote Audio System
010-00831-20 Catalog Part Number, Digital Remote Audio System w/ v4.21C
010-00831-21 Catalog Part Number, Digital Remote Audio System w/ v4.21C
011-02299-00 Actual Unit Part Number, Digital Remote Audio Processor
011-02299-20 Actual Unit Part Number, Digital Remote Audio Processor w/ v4.21C







010-00831-01
- Digital Remote Audio System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00831-20
- Remote Mount Audio Processor & Marker Beacon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00831-21
- Remote Mount Audio Processor & Marker Beacon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02299-00
- Audio Panel
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-02299-20
- Remote Mount Audio Processor & Marker Beacon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The GMA-35 is typically interfaced via a Garmin GTN-725 or GTN-750. The Garmin GTN-725 or GTN-750 will act as the control head for the GMA-35. All inputs for the GMA-35 will be entered by using the Audio Panel page on the GTN unit.



3D audio is when advanced processing adjusts audio in the headset to simulate how the human ear normally hears and registers sounds in space. The 3D Audio feature makes it seem as though different audio sources are coming from different direction.  This feature makes it much easier to focus on and understand one particular source from many. 3-D Audio is useful when multiple audio sources are present. 3D audio processing creates the illusion that each audio source is coming from a unique location or seat position. Because this feature uses different signals for left and right channels, it requires wiring for stereo intercom and stereo headsets. If 3D audio is activated when mono headsets are in use, the listener will still hear all audio sources; however, there is no benefit from location separation.

Yes, the voice recorder feature records all the audio on any selected COM radio selected for transmission and not others selected for monitoring only. Playback is heard by anyone listening on the selected radios. The clearance recorder can record up to 2.5 minutes of com audio.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
