Model: GMA-340

OEM:

Garmin

Desc:

Audio Panel

Part Number :
IMPORTANT PLEASE READ THIS FAQ IN RELATION TO THE DISCONTINUATION OF THE GMA 340 AUDIO PANEL

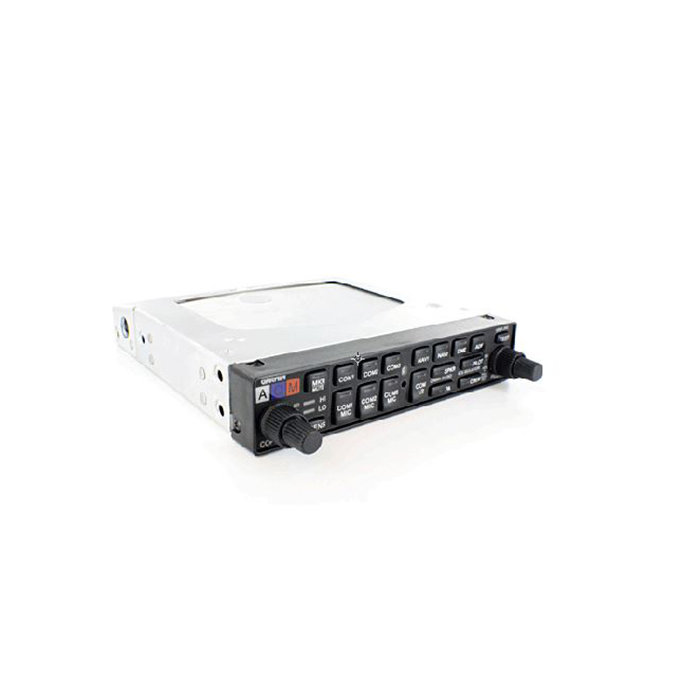

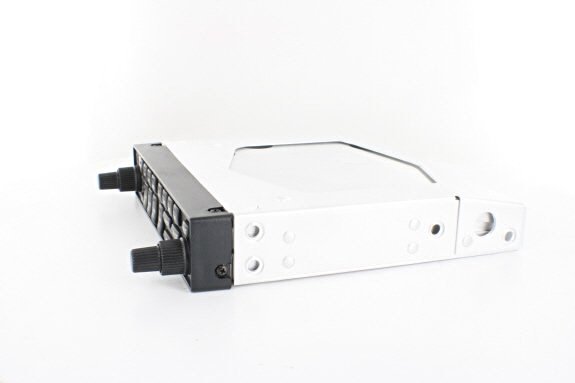

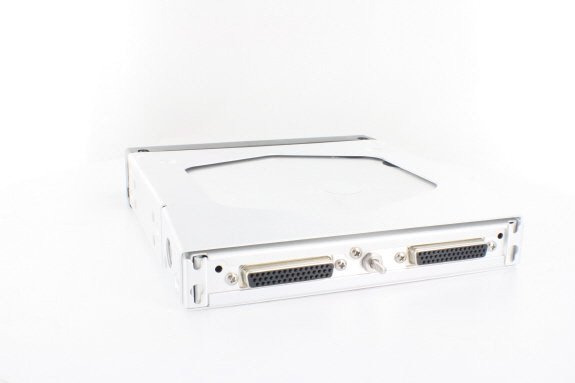

GMA-340

FEATURES

  • LED-illuminated push button audio panel allowing audio selection of both NAV and Comm audio
  • Large buttons activate the Comm microphone and audio for up to three Comm transceivers
  • Split Comm feature allows pilot to transmit/receive on Comm 1 and co-pilot to transmit/receive on Comm 2
  • Comm transmit indication provided
  • Speaker selection available to monitor aircraft radios or to make PA announcements
  • Two unswitched inputs for telephone ringers, altitude alert warnings or other warning tones
  • Includes six-place VOX intercom with three selectable modes of isolation, dual stereo music inputs, and independent pilot, co-pilot, and passenger volume control
  • Each microphone input has dedicated VOX circuit to ensure that only active microphone is heard when squelch is broken
  • Standard three-light Marker Beacon Receiver with high/low sensitivity selection and audio muting with automatic rearming
  • Shallow depth and lightweight
  • 14 or 28 Volt operation without voltage converters or dropping resistors
  • Photo cell dimming of annunciators
  • FAA TSO approval
  • Helicopter version has pilot and co-pilot ICS volume controls on front panel reversed





SPECIFICATIONS

TSO Compliance: TSO-C50c, TSO-C35d Dimensions: Length behind panel: 6.4", Rack width: 6.29", Height: 1.3"
Power Requirements: Supply voltage of 11-33 Vdc; Operating current of 2.2A (13.8V, speaker on) Temperature Range: -20C to +55C
Audio Panel: 3 transceiver inputs, 5 receiver inputs, 2 unswitched inputs, 500 ohm input impedance, 60db min input isolation Intercom: 6 (pilot, copilot, 4 passengers) positions, 3 (pilot, copilot, passengers) volume controls, 2 (pilot, copilot/passengers) VOX level controls, 6 (one per mic input) VOX circuits,  2 (one input mutable) music inputs (Stereo), 3 intercom isolation modes (pilot, crew, all)
Headphone Outputs: 3 stereo (pilot, copilot, passengers) output amplifiers, Power: 100 mW per stereo channel, each headset, into 150 ohms with not more than 5% distortion, any normal supply voltage, 100 Hz to 15 kHz, nom music frequncy response
100 Hz to 6 kHz nom A/C radio frequency, Special cabin noise band de-emphasis on ICS mic
Speaker Outputs: Outputs Selectable: 1 pilot selectable, Output Power: 10 watts into 4 or 8 ohms, any normal supply voltage, Frequency Response: 350 to 6 kHz nom, Special functions: PA Mode, pilot selectable









Part Number: Description:
010-00152-03 Audio Panel, Helicopter
010-00152-11 Audio Panel, Standard
010-00152-21 Audio Panel, Standard version with dual ADF inputs



011-00401-10
- Audio Panel (unit only)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
011-00401-20
- Audio Panel w/ Dual ADF Input
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

According to Garmin Service Advisory 21115, repair services for the all GMA-340 audio panels are no longer available. Garmin has replaced the GMA-340 with the GMA-342 and GMA-345.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The GMA-340 was originally manufactured in 3 versions- standard GMA-340, dual ADF GMA-340, and the GMA-340H for helicopters.

The GMA-340 has two stereo entertainment inputs, Music 1 and Music 2. Music 1 is soft-muted during all aircraft radio activity and normally during ICS (intercom system) activity. Music 2 is a non-muted input. Two headphone outputs of these devices are used and plugged into Music 1 and Music 2. Two 3.5mm stereo phone jacks should be installed in a convenient location for this purpose.

Yes, pressing the COM 1/2 button activates the split COM function. When active, COM 1 is dedicated to the pilot for MIC/audio while COM 2 is dedicated to the copilot for MIC/audio. The pilot and copilot can simultaneously transmit in the mode over separate radios. Both pilots can still listen to COM 3, NAV 1, NAV2, DME, ADF, and MKR as selected. The split COM mode is cancelled by pressing the COM 1/2 button a second time.

Garmin part numbers beginning with 010 are used by Garmin to identify products as "Shipping Level Part Numbers", Catalog or Kit part numbers. 010 type part numbers do not appear on the actual dataplate for almost all Garmin aviation units.

Garmin part numbers beginning with 011 are the actual unit part numbers, meaning the 011 part numbers are on the dataplate and paperwork of the unit. In most cases, related system accessories within the 010 standard kit and 010 catalog p/n with install kit do have individual 011 part numbers, but are ordered with the single 010 part number that designates a complete kit.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
