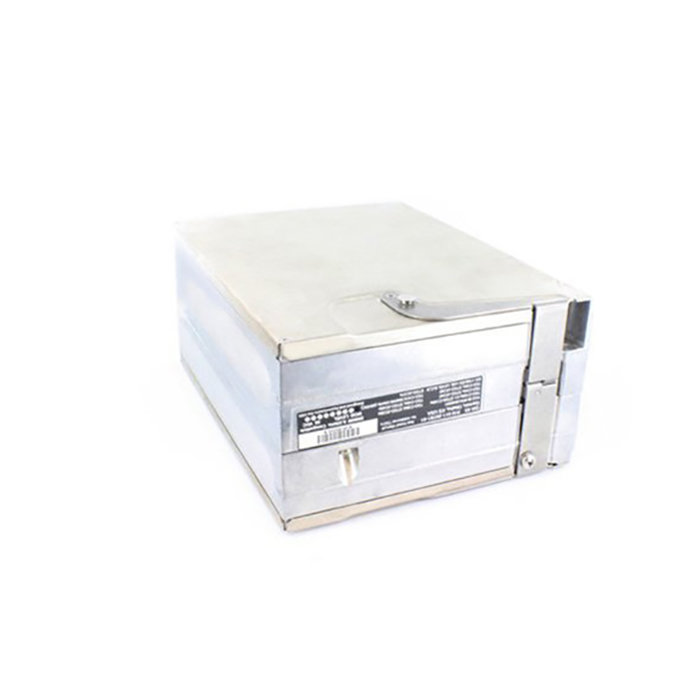

Picture of product GIA-64W

Part #: 011-03711-00

Model: GIA-64W

NSN:

6610-01-700-1969

OEM:

Garmin

Desc:

Integrated Avionics Unit

Part Number :



GIA-64W
FEATURES
  • Microprocessor-based input/output Line Replaceable Unit (LRU) used in a Garmin Integrated Flight Deck
  • Communicates with the GDU via Ethernet high-speed data bus (HSDB), and with other LRUs using RS-485/422, and ARINC
  • All configuration is done through the GDU
  • Main processor that interfaces with all LRUs in the G1000 sub-system and performs calculations for the GFC 700 autopilot (if equipped)
  • 15 channel WAAS certified GPS receiver
  • VHF COM transceiver that provides tuning from 118.00 to 136.992 MHz in 25 kHz or 8.33 kHz spacing for 760 or 2280 channel configuration respectively
  • VOR/ILS localizer receiver that provides tuning from 108.00 to 117.95 MHz in 50 kHz increments
  • An ILS glideslope receiver that provides tuning from 328.6 to 335.4 MHz as paired with the frequency tuned on the VOR/ILS localizer receiver



SPECIFICATIONS
MODULAR rack width: 3.83 inches (9.73 cm) modular Rack height: 7.26 inches (18.44 cm)
standalone rack width: 3.88 inches (9.86 cm) standalone rack height: 6.91 inches (17.55 cm)
depth w/connectors (modular and standalone): 10.20 inches (25.91 cm) unit weight: 5.3 lbs. (2.40 kg)
modular rack & connector weight: 1.9 lbs. (0.86 kg) standalone rack & Connector weight: 2.2 lbs. (1.01 kg)
Part Number:     Description:
011-03711-00 Integrated Avionics Unit
011-03711-01 Integrated Avionics Unit





TSO C144
Serial # 4SK006819
Condition SV
Mods 1-2
Tag Date 12/02/24
Shop Garmin
Warranty 6 Months
011-03711-00
- Integrated Avionics Unit

NSN: 6610-01-700-1969

Price Condition Status
$4,900.00 SV EXCHANGE 1 IN STOCK
$13,500.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01410-00
- Integrated Avionics Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01410-01
- Integrated Avionics Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-03711-01
- Integrated Avionics Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
