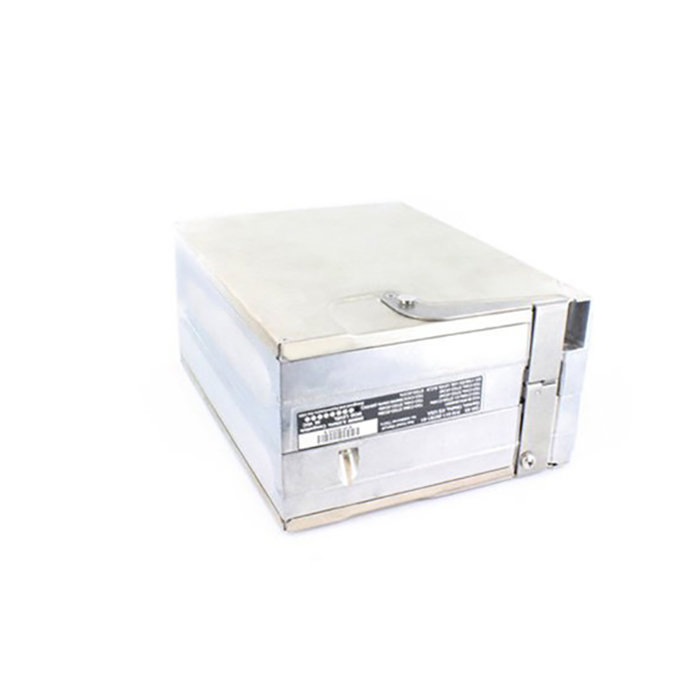

Picture of product GIA-63W

Part #: 011-01105-01

Model: GIA-63W

NSN:

6615-01-597-7227

OEM:

Garmin

Desc:

G1000 Integrated Avionics Unit

Part Number :


GIA-63W

FEATURES
  • Microprocessor-based input/output Line Replaceable Unit (LRU) used in a Garmin Integrated Flight Deck
  • Communicates with the GDU via Ethernet high-speed data bus (HSDB), and with other LRUs using RS-485/422, and ARINC
  • All configuration is done through the GDU
  • Main processor that interfaces with all LRUs in the G1000 sub-system and performs calculations for the GFC 700 autopilot (if equipped)
  • 15 channel WAAS certified GPS receiver
  • VHF COM transceiver that provides tuning from 118.00 to 136.992 MHz in 25 kHz or 8.33 kHz spacing for 760 or 2280 channel configuration respectively
  • VOR/ILS localizer receiver that provides tuning from 108.00 to 117.95 MHz in 50 kHz increments
  • An ILS glideslope receiver that provides tuning from 328.6 to 335.4 MHz as paired with the frequency tuned on the VOR/ILS localizer receiver

PLEASE NOTE !
It is highly recommended that this item be installed and/or configured by a Garmin G1000 authorized facility or maintenance facility familiar with the integration, software, and operation of the G1000 system.

Technical assistance may not be available for configuration issues that you may encounter during installation.



SPECIFICATIONS
MODULAR rack width: 3.83 inches (9.73 cm) modular Rack height: 7.26 inches (18.44 cm)
standalone rack width: 3.88 inches (9.86 cm) standalone rack height: 6.91 inches (17.55 cm)
depth w/connectors (modular and standalone): 10.20 inches (25.91 cm) unit weight: 5.3 lbs. (2.40 kg)
modular rack & connector weight: 1.9 lbs. (0.86 kg) standalone rack & Connector weight: 2.2 lbs. (1.01 kg)
operating temperature range: -40°C to +65°C  humidity: 95% non-condensing
altitude range: -1,500 ft to 50,000 ft max velocity: 1000 knots
dynamics: 6 g antenna power supply: 20 mA typical, 40 mA max at 4.6 VDC
number of channels: 15 (12 GPS and 3 GPS/WAAS/SBAS) frequency: 1575.42 MHz L1, C/A code
SENSITIVITY (AQUISITION): -116 dBm to -134.5 dBm GPS, -116 dBm to -134.5 dBm WAAS SENSITIVITY (drop lock) -144 dBm
LAT/LONG POSITION ACCURACY: <1.25 meter RMS horizontal, <2 meter vertical, with WAAS VELOCITY: <1.25 meter RMS horizontal, <2 meter vertical, with WAAS
TTFF (TIME TO FIRST FIX): 1:45 min. typical with current almanac, position, and time REACQUISITION: 10 seconds typical for signal outages of 30 seconds or less
POSITION UPDATE INTERVAL: 0.2 sec (5 Hz) DATUM: WGS-84
SATCOM COMPABILITY: Compatible on aircraft equipped with SATCOM (see Section 2.1.3.2 for SATCOM compatible antennas) ANTENNA POWER SUPPLY AT GPS PORT: Vout = 4.6V+/- 0.3 VDC, min 4.3V at 60mA
Part Number:     Description:
011-01105-00 Intergrated Avionics Unit
011-01105-01 Intergrated Avionics Unit
011-01105-20 Intergrated Avionics Unit
011-01105-40 Intergrated Avionics Unit





TSO C144
Serial # 15W008481
Condition SVC
Mods -
Tag Date 06/05/23
Shop Textron Aviation - Sacramento
Warranty 6 Months
011-01105-40
- Integrated Avionics Unit w/ Enhanced Com
Price Condition Status
$9,500.00 SV OUTRIGHT 2 IN STOCK
$3,595.00 SV EXCHANGE 2 IN STOCK
011-01105-01
- Integrated Avionics Unit
Price Condition Status
$14,500.00 SV OUTRIGHT 1 IN STOCK
$3,950.00 SV EXCHANGE 1 IN STOCK
011-01105-00
- Integrated Avionics Unit

NSN: 6615-01-597-7227

Price Condition Status
$12,500.00 SV OUTRIGHT REQUEST LEAD TIME
$4,500.00 SV EXCHANGE REQUEST LEAD TIME
011-01105-20
- Integrated Avionics Unit

NSN: 6610-01-597-1657

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
