Part #:

Model: GI-285

OEM:

Garmin

Desc:

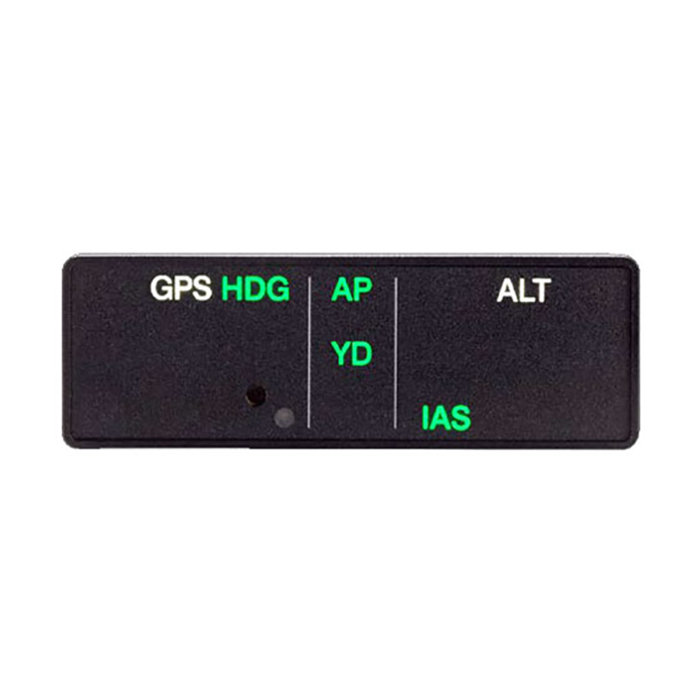

AFCS Mode Annunciator

Part Number :





GI-285

FEATURES

  • Mode annunciator panel used with Garmin GFC-600 Autopilot

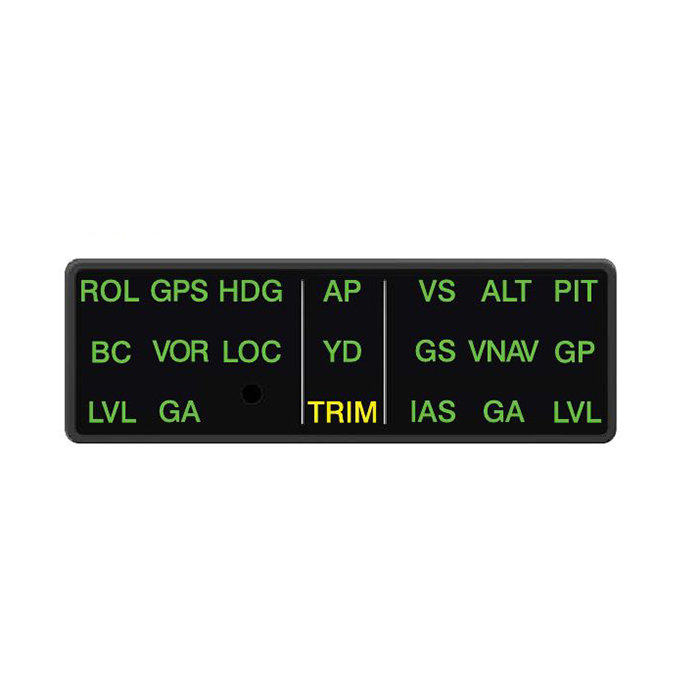

  • Provides lateral and vertical mode annunciations
  • Indicates status of the autopilot, yaw damper, and trim systems.
  • All annunciations can be individually illuminated in white, green, or yellow.
  • AP, YD, and TRIM annunciations can additionally be illuminated in red
  • Green annunciations represent an active mode
  • White annunciations represent an armed mode
  • Yellow annunciations represent when an active mode loses sensor data
  • Red annunciations represent a failure.
  • Annunciations are illuminated via commands from Garmin AFCS Mode Controller (GMC)
  • Mounted flush to the instrument panel using a rack, secured with a pawl-latch
  • Interfaces with GMC via RS-232 digital interface



SPECIFICATIONS
Dimensions:       3.55” W x 1.20”H x 4.48” (w/ connector) Weight: 0.30 lbs. (0.18 kg)
Temperature:    -45 to 70C Altitude: -1500 to 55000 ft
Part Number: Description:
010-01598-00 AFCS Mode Annunciator (Catalog PN)
010-01598-03 AFCS Mode Annunciator (Catalog PN)
011-04011-00 AFCS Mode Annunciator  (Unit Only PN)













010-01598-00
- AFCS Mode Annunciator (Unit Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01598-03
- AFCS Mode Annunciator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-04011-00
- AFCS Mode Annunciator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
