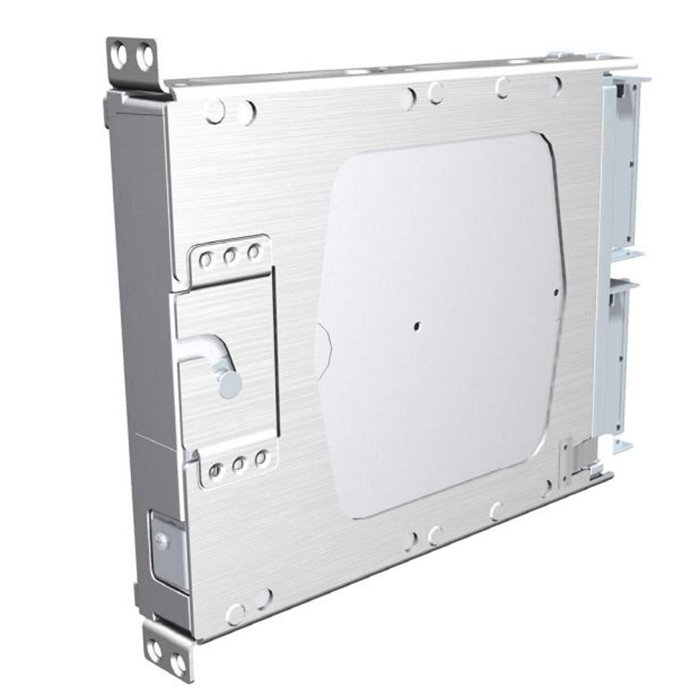

Picture of product GEA-71B

Part #: 011-03682-00

Model: GEA-71B

NSN:

2995-01-700-1964

OEM:

Garmin

Desc:

Engine Assessment Unit

Part Number :



FEATURES

  • The GEA 71B is a micro-processor based input/output Line Replaceable Unit (LRU)
  • Sensor inputs and drive annunciator outputs for aircraft airframe and engine systems
  • 18 Analog Inputs (all differential inputs
  • 12 Engine Temperature Analog Inputs (differential inputs)
  • 23 Discrete Inputs
  • 12 Digital Inputs
  • 4 Discrete Annunciate Outputs
  • Software & Configuration data input from a Garmin Integrated Flight Deck
  • Aircraft Power Input (Power-on controlled by aircraft avionics power bus)
  • LRU used to monitor sensor inputs and drive annunciator outputs for aircraft airframe & engine systems (particularly for G1000)
  • Interfaces with various sensors on the aircraft and communicates airframe & engine information via RS-485 digital interface to GIA-63/63W units
  • Uses a configuration module temperature sensor and thermocouple sensor housed in backshell to monitor junction temperatures

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.



SPECIFICATIONS

width: With rack 1.23 inches (3.12 cn) height: With rack 6.30 inches (16.0 cm)
depth: With rack & connectors 8.73 inches (22.17 kg) unit weight: 1.75 (0.79 kg)
Rack, Nutplate, & Connector Kit Weigh 0.83 lbs (0.38 kg) Input Voltage: 14/28 Vdc

Part Number Description
010-01405-00 Catalog Part Number
010-01405-01 Catalog Part Number, Helicopter version
010-01405-02 Catalog Part Number, Enhanced version
010-01405-03 Catalog Part Number, Enhanced Helicopter version
011-03682-00 Unit Part Number
011-03682-01 Unit Part Number, Helicopter version
011-03682-02 Unit Part Number, Enhanced version
011-03682-03 Unit Part Number, Enhanced Helicopter version










Serial # 497002333
Condition SV
Mods 1-3
Tag Date 12/03/24
Shop Garmin
Warranty 6 Months
011-03682-00
- Engine Assessment Unit

NSN: 2995-01-700-1964

Price Condition Status
$2,150.00 SV EXCHANGE 1 IN STOCK
$3,950.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-01405-05
- Engine Assessment Unit, Enhanced
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
011-03682-02
- Engine Assessment Unit (Enhanced)
Price Condition Status
$1,750.00 SV EXCHANGE REQUEST LEAD TIME
$3,150.00 SV OUTRIGHT REQUEST LEAD TIME
