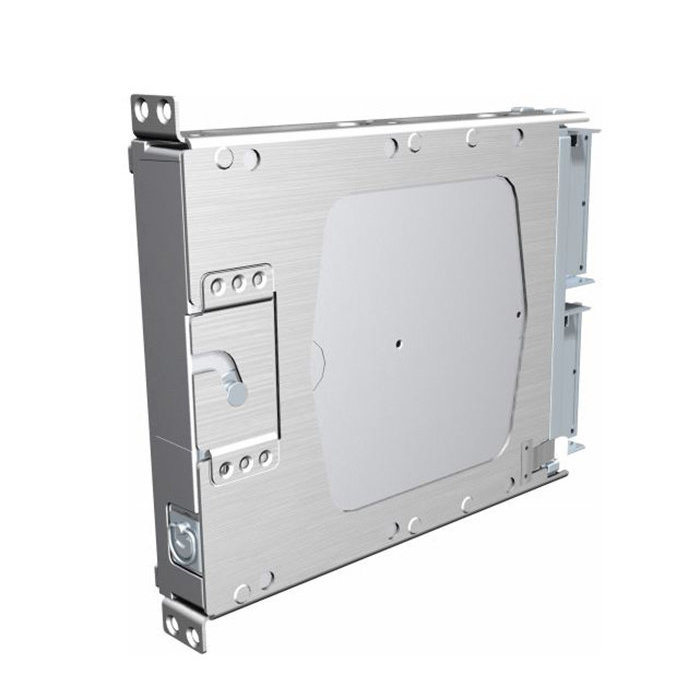

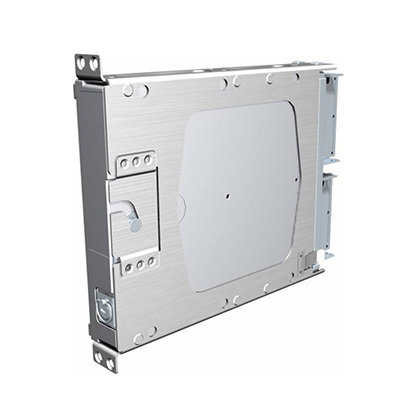

Picture of product GEA-71

Part #: 011-00831-00

Model: GEA-71

NSN:

2995-01-597-6877

OEM:

Garmin

Desc:

Engine/Airframe Unit

Part Number :



GEA-71





FEATURES

  • LRU used to monitor sensor inputs and drive annunciator outputs for aircraft airframe & engine systems (particularly for G1000)
  • Interfaces with various sensors on the aircraft and communicates airframe & engine information via RS-485 digital interface to GIA-63/63W units
  • Uses a configuration module temperature sensor and thermocouple sensor housed in backshell to monitor junction temperatures

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.



SPECIFICATIONS

Width (w/ Modular Rack): 1.23 inches (31.1 mm) Width (w/Standalone Rack): 1.47 inches (37.3 mm)
Height (w/ Modular Rack): 6.30 inches (160.2 mm) Height (w/ Standalone Rack): 6.91 inches (175.6 mm)
Depth (Modular Rack w/ Connectors): 9.07 inches (230.4 mm) Depth (Standalone Rack w/ Connectors): 9.13 inches (231.9 mm)
Unit Weight: 1.75 lbs (0.79 kg) Modular Rack, Nutplate, & Connector Kit Weight: 0.83 lbs (0.38 kg)
Standalone Rack, Nutplate, & Connector Kit Weight: 1.28 lbs (0.58 kg)



Part Number: Description:
011-00831-00 Engine/Airframe Unit







Serial # 46717927
Condition SV
Mods 1-2
Tag Date 06/14/24
Shop Garmin
Warranty 6 Months
Serial # 46701662
Condition SV
Mods 1-3
Tag Date 05/06/24
Shop Garmin
Warranty 6 Months
Serial # 46705533
Condition SV
Mods 1-2
Tag Date 04/02/24
Shop Garmin
Warranty 6 Months
Serial # 46703700
Condition SV
Mods 1-2
Tag Date 03/18/24
Shop Garmin
Warranty 6 Months
011-00831-00
- Engine Assessment Unit

NSN: 2995-01-597-6877

Price Condition Status
$2,450.00 SV OUTRIGHT 4 IN STOCK
$1,550.00 SV EXCHANGE 4 IN STOCK
