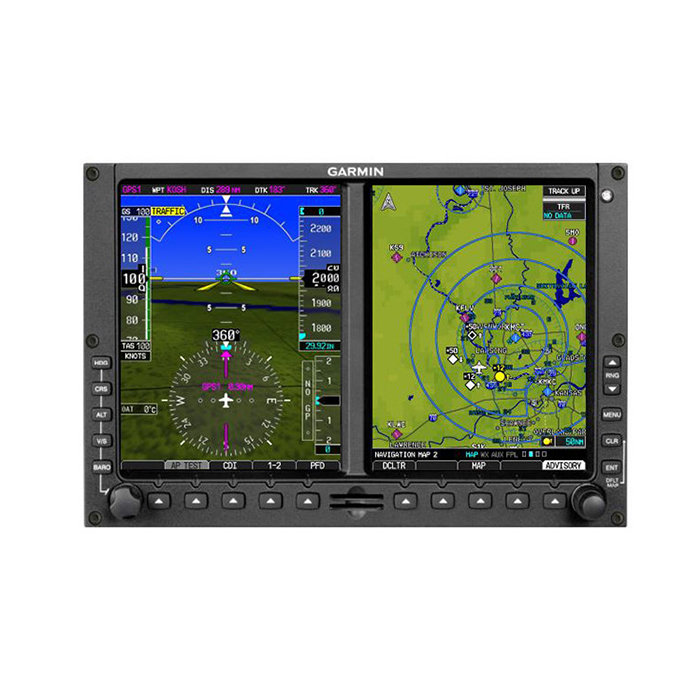

Picture of product GDU-620

Part #: 011-01264-00

Model: GDU-620

NSN:

5826-01-608-0954

OEM:

Garmin

Desc:

Display Unit

Part Number :


GDU-620
FEATURES
  • The GDU 620 has dual VGA (640 x 480 pixels) 6.5 inch LCD displays
  • The left side of the GDU is a PFD and the right side is the MFD
  • In some models or installations, the PFD and MFD and their controls are switched to the other side
  • The MFD shows a moving map, flight plan, weather, and other supplemental data
  • The PFD shows primary flight information, in place of traditional pitotstatic and gyroscopic systems and also provides an HSI for navigation

SPECIFICATIONS
WIDTH: 10.0  inches (25.4) OPERATING TEMPERATURE RANGE: -20°C to +55°C
HEIGHT: 6.7 inches (17.0 cm) HUMIDITY: 48 Hours 50°C 95%
DEPTH W/ CONNECTOR KIT: 5.50 inches (14.0 cm) ALTITUDE RANGE: 35,000 ft (Maximum)
UNIT WEIGHT W/OUT CONNECTOR KIT: 6.38 lbs. (2.90kg) DISPLAY FORMAT: 480 pixels (W) x 640 pixels (H)
UNIT WEIGHT WITH CONNECTOR KIT: 7.04 lbs. (3.20kg) ACTIVE DISPLAY sIZE: 6.5" Diagonal (3.9" W x 5.2" H)
input voltage range: 10 to 40 VDC BRIGHT RANGE: 0.1 to 180fl
power consumption: 14 VDC (Typical 3.9A  Max: 5.4A), 28 VDC (Typical 1.9A  Max: 2.7A) vIEWING ANGLE (W/ 10:01 CONTRAST RATIO MIN) Left/Right: 45° from perpendicular, Up: 30°from perpendicular, Down: 10° from perpendicular



Part Number: Description:
010-00482-00 Display Unit
010-00482-10 Display Unit
010-00482-20 Display Unit
010-00482-60 Display Unit
011-01264-00 Display Unit
011-01264-30 Display Unit
011-01264-50 Display Unit
011-01264-60 Display Unit



Serial # 165003199
Condition SV
Mods 1-2
Tag Date 08/15/24
Shop Garmin
Warranty 6 Months
Serial # 165003973
Condition SV
Mods 1-2
Tag Date 08/06/24
Shop Garmin
Warranty 6 Months
Serial # 165003193
Condition SV
Mods 1
Tag Date 09/07/23
Shop Garmin
Warranty 6 Months
011-01264-00
- G600 Display Unit - LH PFD, Black (Unit P/N)
Price Condition Status
$8,950.00 SV INSTALL ONLY
$3,150.00 SV INSTALL ONLY
011-01264-50
- G500 Display Unit (LHS Black)
Price Condition Status
$7,250.00 SV OUTRIGHT 1 IN STOCK
$2,995.00 SV EXCHANGE 1 IN STOCK
011-01264-60
- G500 Display Unit (RH PFD, Black)
Price Condition Status
$7,250.00 SV OUTRIGHT 1 IN STOCK
$2,750.00 SV EXCHANGE 1 IN STOCK
010-00482-00
- Display Unit (Shipping P/N)

NSN: 5826-01-608-0954

Price Condition Status
REQUEST NEW INSTALL ONLY
010-00482-10
- Display Unit (G600, Gray)
Price Condition Status
REQUEST NEW INSTALL ONLY
010-00482-20
- Display Unit (RH PFD, G600, Black)
Price Condition Status
REQUEST NEW INSTALL ONLY
010-00482-60
- RH Display Unit
Price Condition Status
REQUEST NEW INSTALL ONLY
011-01264-10
- G600 Display Unit - LH PFD, Gray (Unit P/N)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01264-20
- G600 Display Unit - RH PFD, Black (Unit P/N)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
011-01264-30
- G600 Display Unit - RH PFD, Gray (Unit P/N)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.
Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
