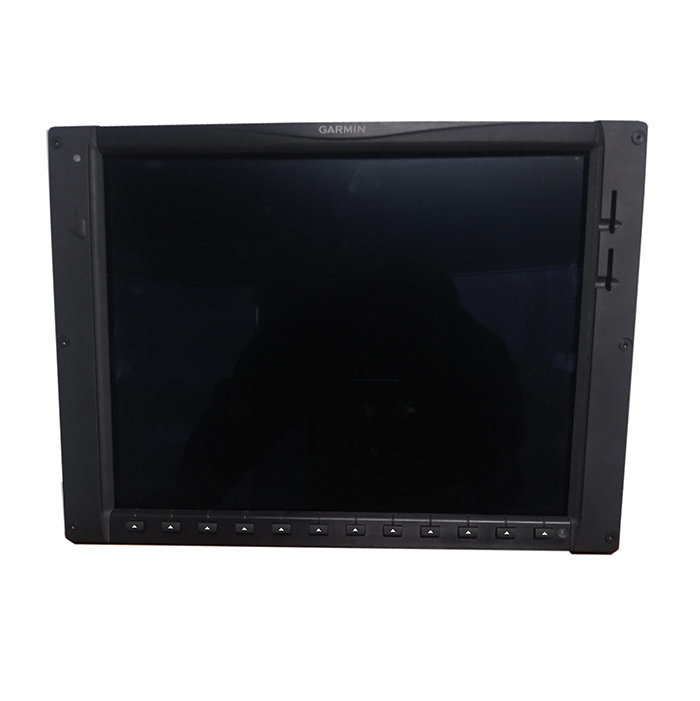

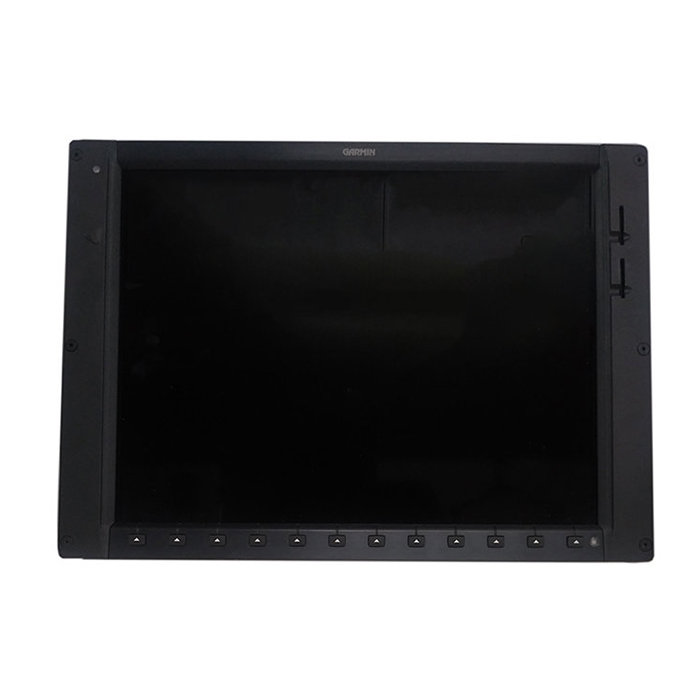

Part #:

Model: GDU-1550

OEM:

Garmin

Desc:

Multi-function Display

Part Number :




GDU-1550

FEATURES

  • The GDU 1500 provides a central display and user interface for the G1000 Integrated Cockpit System
  • Display is mounted flush to the aircraft instrument panel using six ¼ turn fasteners
  • Can be configured as either a Multi Function Display (MFD) or Primary Flight Display (PFD)



SPECIFICATIONS

Size: 3.26"W x 1.542"H x 8.70"L UNIT Weight W/OUT: (Connector Kit) 8.40 lbs. (3.8 kg)
Temperature Range: -40 to +55C (operating) UNIT Weight WITH: (Connector Kit) 8.61 lbs. (3.9 kg)
Altitude: 11500 to 55000 ft. Humidity: 95% non-condensing
Connector Panel Depth: 4.11 inches (10.44 cm) height: 10.74 inches (27.28 cm)
Power Requirements: 28 VDC, above -15°C: 28V (55W Maximum), 28V (50W Typical), below -15°C: 28V (90W Maximum) 28V (85W Typical) Environmental Compliance: RTCA/DO-160E
Software Compliance: RTCA/DO-178B levels B, C, and D Hardware Compliance: RTCA/DO-254 Level B
Part Number:  Description:
010-01310-00 Multi-function Display
011-03472-00 Multi-function Display
011-03472-01 Multi-function Display







010-01310-00
- Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-03472-00
- Multi-function Display
Price Condition Status
$13,500.00 SV OUTRIGHT REQUEST LEAD TIME
$5,300.00 SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
