Part #: 011-03470-00

Model: GDU-1050

OEM:

Garmin

Desc:

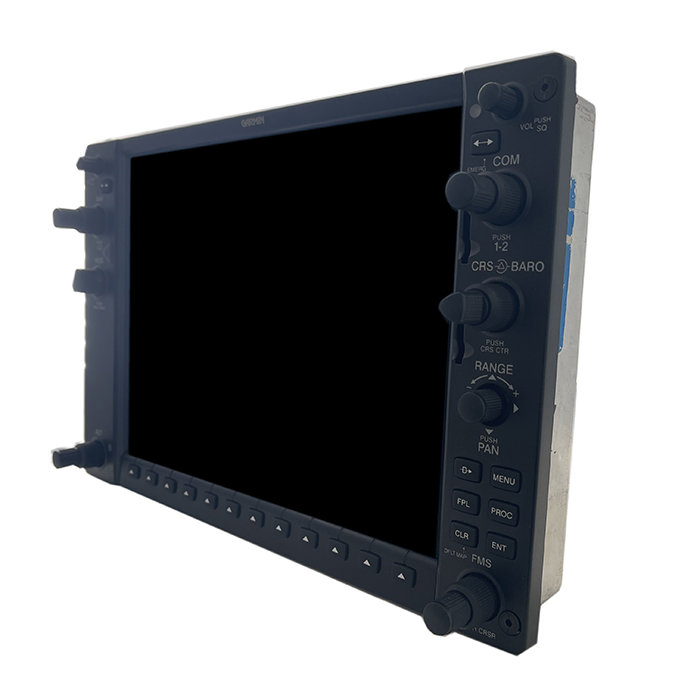

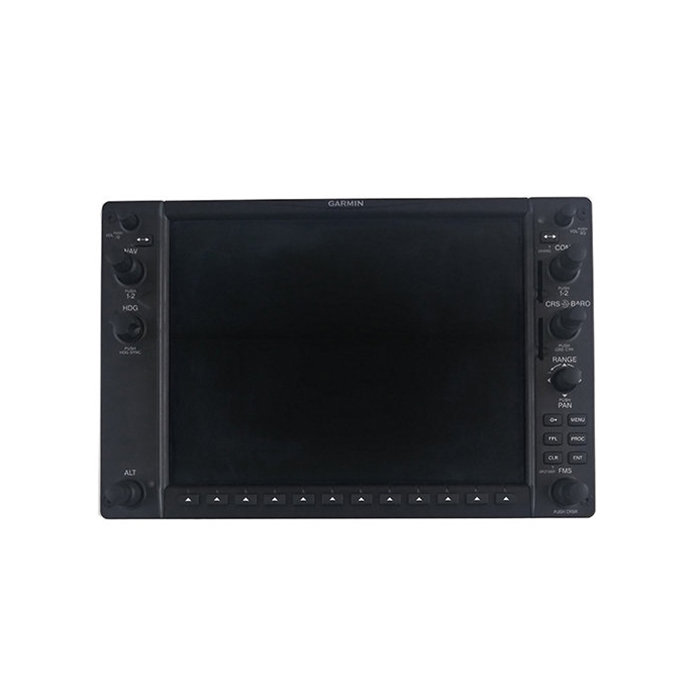

Multi-Function/Primary Flight Display

Part Number :



GDU-1050

FEATURES

  • Provides central display and user interface for Garmin Integrated Flight Deck
  • Flush mounted to aircraft instrument panel using 4 ¼ turn fasteners
  • Can be configured as Multi-Function Display (MFD) or Primary Flight Display (PFD)
  • Provides Flight Instrument, Navigation Instrument and System Interface functions
  • Provides control of dual VOR/ILS receivers, heading & altitude select, Dual Com, FMS display, course & barometric settings
  • Designed as open architecture using typical ARINC 429, RS-232 and Ethernet communications interfaces



SPECIFICATIONS

WIDTH: 11.80 INCHES (299.7 mm) HEIGHT: 7.70 inches (195.6 mm)
DEPTH WITH cONNECTOR KIT: 3.75 inches (95.3 mm) UNIT WEIGHT: (W/Out Connector Kit) 4.5 lbs (2.04 kg)
operating temperature: -40°C to +55°C ALTITUDE RANGE: -1500 ft to 55,000 ft
HUMIDITY: 95% NON-CODENSING SOFTWARE COMPLIANCE: RTCA/DO-178B levels A, B, C, D, and E
ENVIRONMENTAL: RTCA/DO-160F
PART NUMBER:  Description:
010-01308-00 Multi-Function/Primary Flight Display
011-03470-00 Multi-Function/Primary Flight Display



Serial # 494005011
Condition SV
Mods None
Tag Date 06/24/24
Shop Garmin
Warranty 6 Months
011-03470-00
- Multi-Function/Primary Flight Display
Price Condition Status
$2,950.00 SV EXCHANGE 1 IN STOCK
$6,750.00 SV OUTRIGHT 1 IN STOCK
010-01308-00
- Multi-Function/Primary Flight Display
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
