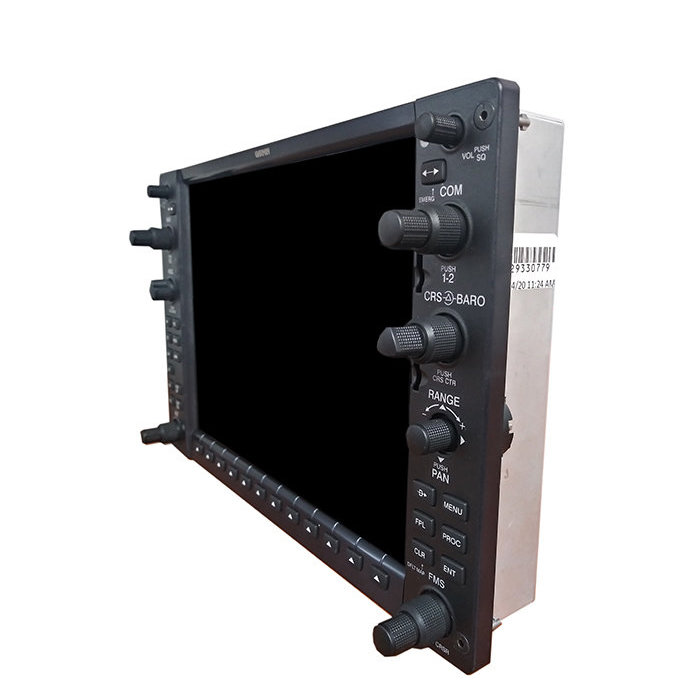

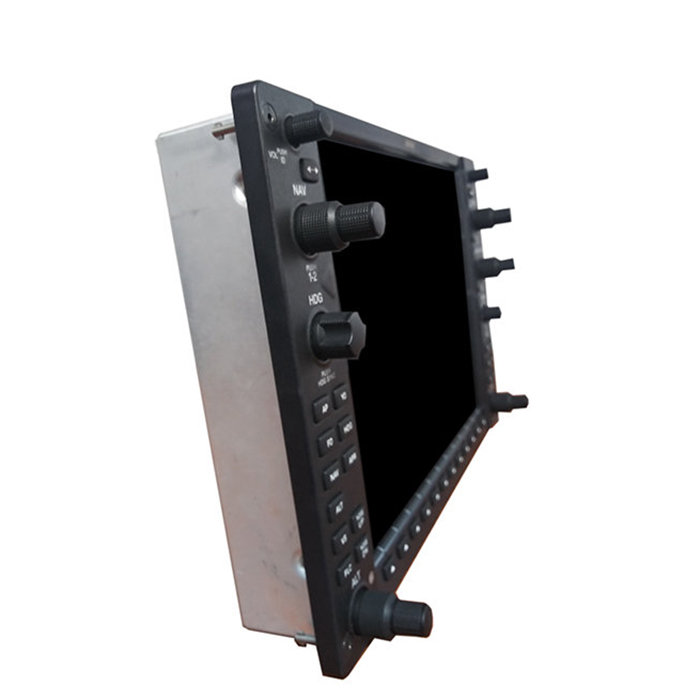

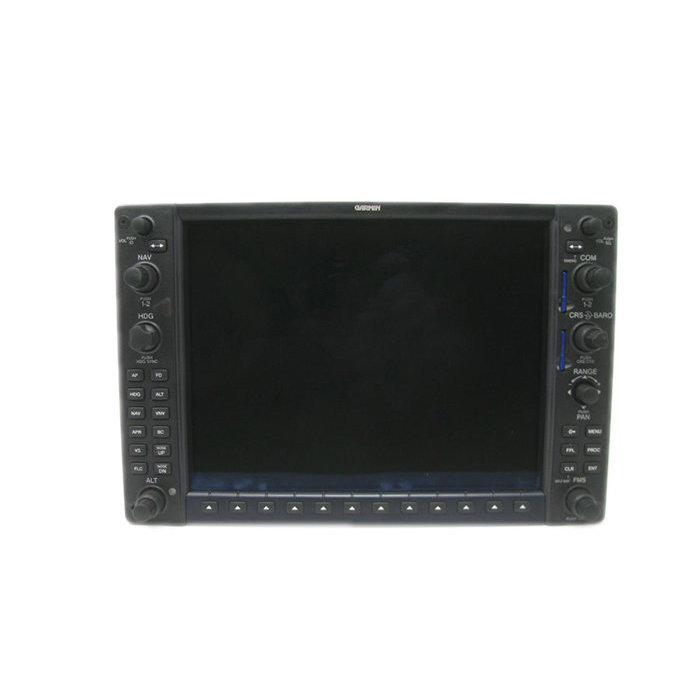

Part #: 011-01274-00

Model: GDU-1044B

NSN:

7025-01-597-7543

OEM:

Garmin

Desc:

G1000 Display Unit

Part Number :


GDU-1044B



FEATURES

  • Multi-Function Display primarily used as part of the G1000 Integrated Cockpit System
  • Can be integrated into a variety of airframes under an appropriate TC or STC
  • Provides a central display and user interface for the G1000
  • Mounted flush to the aircraft instrument panel
  • Can be configured as either a MFD or PFD
  • Provides the following functions:
    • Flight Instrument Functions:
      • Display of attitude (pitch & roll), rate of turn, slip/skid, heading, airspeed, altitude, and vertical speed information (PFD or reversionary modes only)
      • Display of engine and airframe instrumentation (MFD or reversionary modes only)
      • Display of the AFCS flight director command bars and modes (PFD or reversionary modes only)
    • Navigation Instrument Functions:
      • Display of position and ground speed for use by the pilot/flight crew
      • Display of stored navigation and map databases for use by the pilot/flight crew
      • Control and display of the HSI, Selected Heading and Selected Course (PFD or reversionary modes only)
      • Area navigation functions using the determined position/velocity and stored navigation data
      • Approach navigation functions and associated databases
      • Baro-altitude Vertical Navigation
    • System Interface Functions:
      • Interfacing with the GIA 63/63W Integrated Avionics Unit (IAU) and other GDU 104Xs
      • Control and display of dual communications transceivers operating in the 118.00 to 117.95 MHz in 50 kHz increments
      • Control and display of transponder(s) GTX 32 or 33, GFC 700 autopilot (GDU 1042, 1043, 1044, 1044B, and 1045 only), GDL 69/69A data link, GWX 68 Weather Radar, etc.
  • The GDU 1040X is designed as an open architecture system that uses typical ARINC 429, RS-232, and Ethernet communications interfaces
  • Communicates with the following G1000 LRUs:
    • GRS 77 AHRS
    • GDU 74A/74B Digital Air Data Computer
    • GDU 1500/GDU 104Xs
    • GMA 1347/1347D Audio Panel
    • GIA 63/63W IAU
    • GDL 69/69A Data Link
    • GWX 68 Weather Radar

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.


SPECIFICATIONS
Dimensions: 11.80"W x 7.70"H x 3.77" D w/connector Weight: 6.3 lbs (w/out connector kit), 6.5 lbs (w/connector kit)
Operating Temperature: -40°C to +55°C Humidity: 95% non-condensing
Altitude range: -1,500 ft to 55,000 feet Software compliance: RTCA/DO-178B levels B, C and D
hardware compliance: RTCA/DO-254 level B Environmental Compliance: RTCA/DO-160D
power requirements: 14/28 Vdc. backup battery option: Rechargeable lithium-ion
battery life: Up to 4 hours
Part Number: Description:
011-01274-00     G1000 Display Unit, Cessna PN S3100-462
011-01274-10 G1000 Display Unit w/ Composite Video input capability, Cessna PN S3100-558



Serial # 51201671
Condition SV
Mods 1, 3-4
Tag Date 09/17/24
Shop Garmin
Warranty 6 Months
011-01274-00
- G1000 Display Unit

NSN: 7025-01-597-7543

Price Condition Status
$6,750.00 SV OUTRIGHT 1 IN STOCK
$2,850.00 SV EXCHANGE 1 IN STOCK
011-01274-10
- G1000 Display Unit w/ Composite Video
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
