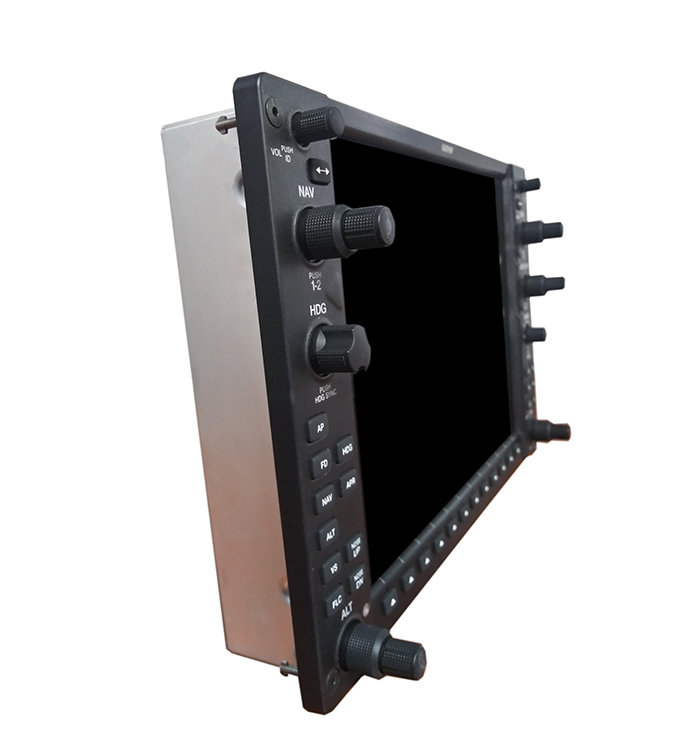

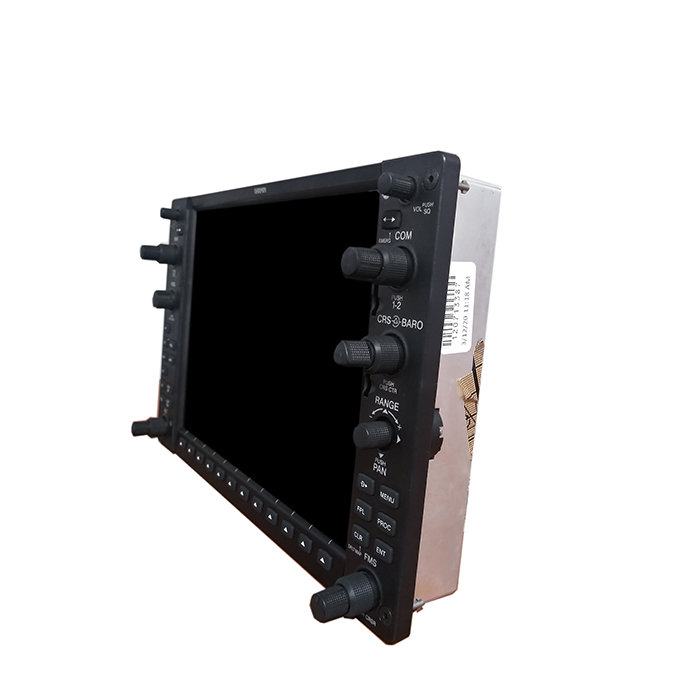

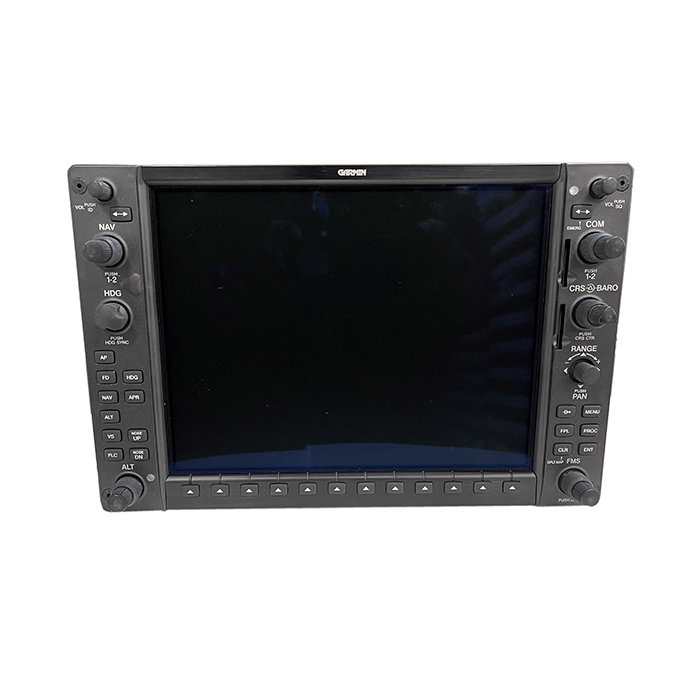

Part #: 011-01080-00

Model: GDU-1042

OEM:

Garmin

Desc:

Display

Part Number :
garmin logo



GDU-1042





FEATURES

  • The GDU 1042 provides a central display and user interface for the G1000 Integrated Cockpit System
  • Display is mounted flush to the aircraft instrument panel using four ¼ turn fasteners
  • Can be configured as either a Multi Function Display (MFD) or Primary Flight Display (PFD)
  • Display of attitude (pitch and roll), rate of turn, slip/skid, heading, airspeed, altitude, and vertical
  • speed information (PFD or reversionary modes only)
  • Display of engine and airframe instrumentation (MFD or reversionary modes only)
  • Display of the AFCS flight director command bars and modes (PFD or reversionary modes only)
  • Display of position and ground speed for use by the pilot/flight crew
  • Display of stored navigation and map databases for use by the pilot/flight crew
  • Control and display of the HSI, Selected Heading and Selected Course (PFD or reversionary modes only)
  • Area navigation functions using the determined position/velocity and stored navigation data
  • Approach navigation functions and associated databases
  • Baro-altitude Vertical Navigation

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.



WIDTH: 11.80 inches (29.97 cm) OPERATING TEMPERATURE Range: -40°C to +55°C
HEIGHT: 7.70 inches (19.56 cm) HUMIDITY: 95% non-condensing
dePTH W/ CONNECTOR KIT: 3.77 inches (9.58 cm) ALTITUDE RANGE: -1,500 ft to 55,000 ft
UNIT WEIGHT W/OUT CONNECTOR KIT: 6.3 lbs. (2.85kg) SOFTWARE COMPLIANCE: RTCA/DO-178B levels B, C, and D
UNIT WEIGHT WITH CONNECTOR KIT: 6.5 lbs. (2.94kg) HARDWARE COMPLIANCE: RTCA/DO-254 Level B
CHIPS MODULE & CONNECTOR 0.9 lbs. (0.41kg) environmental compliance: RTCA/DO-160D
CHIPS MODULE W/OUT CONNECTOR KIT 0.7 lbs. (0.32kg) power requirements: 14/28 Vdc. See the Environmental Qualification Form for details on surge ratings and minimum/maximum operating voltages.





Part Number: Description
011-01080-00 G1000 Display Unit





Serial # 86850345
Condition SV
Mods 1
Tag Date 07/19/24
Shop Garmin
Warranty 6 Months
011-01080-00
- G1000 Display Unit
Price Condition Status
$4,950.00 SV OUTRIGHT 1 IN STOCK
$2,375.00 SV EXCHANGE 1 IN STOCK
011-01080-10
- G1000 Display Unit
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.
