Part #: 011-00916-00

Model: GDU-1040A

OEM:

Garmin

Desc:

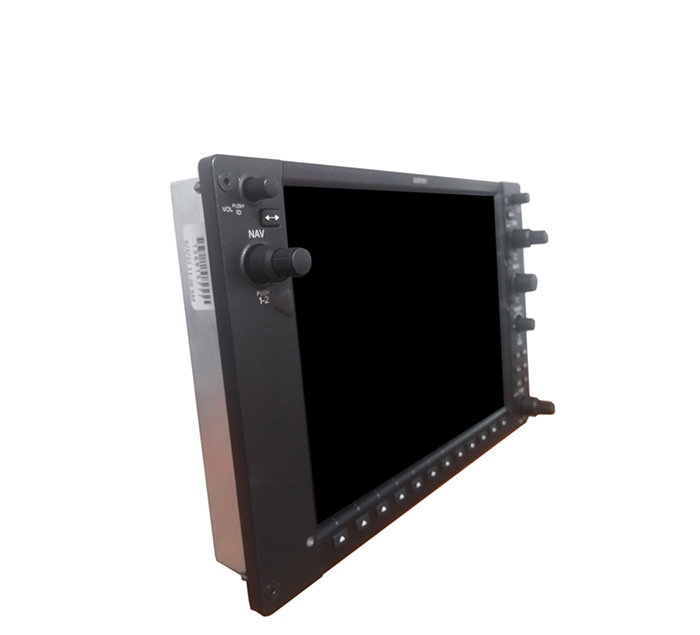

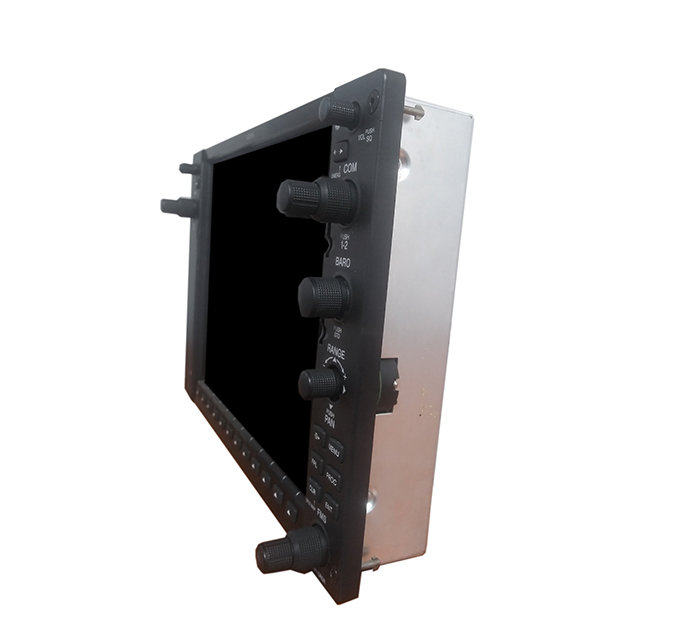

G1000 Display Unit

Part Number :



GDU-1040A



FEATURES

  • Multi-Function Display primarily used as part of the G1000 Integrated Cockpit System
  • Provides a central display and user interface for the G1000
  • Mounted flush to the aircraft instrument panel
  • Can be configured as either a MFD or PFD
  • Central display and user interface for Garmin Integrated Flight Deck
  • Flush mounted to the aircraft instrument panel
  • Can be configured as either Multi Function Display (MFD) or Primary Flight Display (PFD)
  • Control of dual VOR/ILS receivers (-00, -10, -20, -25)
  • Control of dual Comm radio transceivers  (-00, -10, -30, -35)
  • Control and display of Flight Management System (FMS)  -  (-00, -10, -30, -35)
  • Control of barometric settings  (-00, -10, -30, -35)



PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.




SPECIFICATIONS
Dimensions: 11.80"W x 7.70"H x 3.77" D w/connector Weight: 6.3 lbs (w/out connector kit)
6.5 lbs (w/connector kit)
Operating Temperature: -40°C to +55°C Humidity: 95% non-condensing
Altitude range: -1,500 ft to 55,000 feet Software compliance: RTCA/DO-178B levels B, C and D
hardware compliance: RTCA/DO-254 level B Environmental Compliance: RTCA/DO-160D
power requirements: 14/28 Vdc. backup battery option: Rechargeable lithium-ion
battery life: Up to 4 hours



Part Number:   Description:
010-00320-00 G1000 Display Unit
010-00320-10 G1000 Display Unit
010-00320-20 G1000 Display Unit
010-00320-25 G1000 Display Unit
010-00320-30 G1000 Display Unit
011-00916-00 G1000 Display Unit
011-00916-10 G1000 Display Unit
011-00916-20 G1000 Display Unit
011-00916-25 G1000 Display Unit
011-00916-30 G1000 Display Unit
011-00916-35 G1000 Display Unit





Serial # 86801405
Condition SV
Mods 1
Tag Date 10/31/24
Shop Garmin
Warranty 6 Months
Serial # 86805353
Condition SV
Mods 1
Tag Date 10/03/24
Shop Garmin
Warranty 6 Months
Serial # 86801048
Condition SV
Mods 1
Tag Date 09/23/24
Shop Garmin
Warranty 6 Months
011-00916-10
- G1000 Display Unit

NSN: 6610-01-592-5945

Price Condition Status
$5,950.00 SV OUTRIGHT 1 IN STOCK
$2,350.00 SV EXCHANGE 1 IN STOCK
011-00916-00
- S3100-618, G1000 Display Unit
Price Condition Status
$7,500.00 SV OUTRIGHT 3 IN STOCK
$3,250.00 SV EXCHANGE 3 IN STOCK
011-00916-20
- G1000 Display Unit
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00916-25
- G1000 Display Unit
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00916-30
- G1000 Display Unit
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00916-35
- G1000 Display Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
