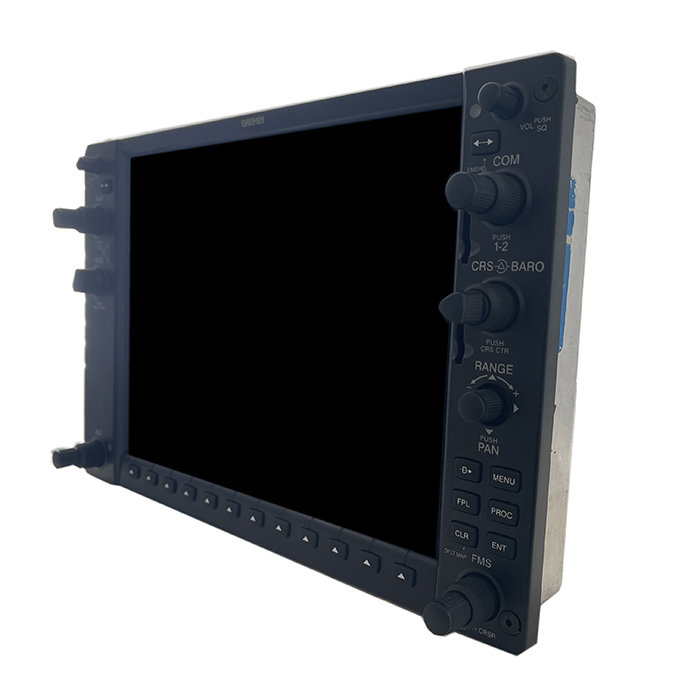

Picture of product GDU-1040

Part #: 011-00972-03

Model: GDU-1040

NSN:

6610-01-597-7175

OEM:

Garmin

Desc:

G1000 Display Unit

Part Number :



GDU-1040

FEATURES

  • Multi-Function Display primarily used as part of the G1000 Integrated Cockpit System
  • Can be integrated into a variety of airframes under an appropriate TC or STC
  • Provides a central display and user interface for the G1000
  • Mounted flush to the aircraft instrument panel
  • Can be configured as either a MFD or PFD
  • Cessna PN S3100-619
  • Provides the following functions:
    • Flight Instrument Functions:
      • Display of attitude (pitch & roll), rate of turn, slip/skid, heading, airspeed, altitude, and vertical speed information (PFD or reversionary modes only)
      • Display of engine and airframe instrumentation (MFD or reversionary modes only)
      • Display of the AFCS flight director command bars and modes (PFD or reversionary modes only)
    • Navigation Instrument Functions:
      • Display of position and ground speed for use by the pilot/flight crew
      • Display of stored navigation and map databases for use by the pilot/flight crew
      • Control and display of the HSI, Selected Heading and Selected Course (PFD or reversionary modes only)
      • Area navigation functions using the determined position/velocity and stored navigation data
      • Approach navigation functions and associated databases
      • Baro-altitude Vertical Navigation
    • System Interface Functions:
      • Interfacing with the GIA 63/63W Integrated Avionics Unit (IAU) and other GDU 104Xs
      • Control and display of dual communications transceivers operating in the 118.00 to 117.95 MHz in 50 kHz increments
      • Control and display of transponder(s) GTX 32 or 33, GFC 700 autopilot (GDU 1042, 1043, 1044, 1044B, and 1045 only), GDL 69/69A data link, GWX 68 Weather Radar, etc.
  • The GDU 1040X is designed as an open architecture system that uses typical ARINC 429, RS-232, and Ethernet communications interfaces
  • Some versions originally available with internal heaters (HTR) when units gets below certain temp, some available with video input (see PN chart below)
  • Communicates with the following G1000 LRUs:
    • GRS 77 AHRS
    • GDU 74A/74B Digital Air Data Computer
    • GDU 1500/GDU 104Xs
    • GMA 1347/1347D Audio Panel
    • GIA 63/63W IAU
    • GDL 69/69A Data Link
    • GWX 68 Weather Radar

PLEASE NOTE:
This part has special configuration, alignment or software requirements. Please consult with the installer to verify that all of the resources needed for the installation are available. Failure to adhere to the manufacturer’s guidelines will result in adverse operation of the part and/or system.


SPECIFICATIONS
Dimensions: 11.80"W x 7.70"H x 3.77" D w/connector Weight: 6.3 lbs (w/out connector kit)
6.5 lbs (w/connector kit)
Operating Temperature: -40°C to +55°C Humidity: 95% non-condensing
Altitude range: -1,500 ft to 55,000 feet Software compliance: RTCA/DO-178B levels B, C and D
hardware compliance: RTCA/DO-254 level B Environmental Compliance: RTCA/DO-160D
power requirements: 14/28 Vdc. backup battery option: Rechargeable lithium-ion
battery life: Up to 4 hours



Part Number: Description:
011-00972-00 Original Garmin shipping PN 010-00337-00, No ETSO, No HTR, No Video input
011-00972-02 Original Garmin shipping PN 010-00337-02, With ETSO, No HTR, No Video Input
011-00972-03 Original Garmin shipping PN 010-00337-03, No ETSO, With HTR, Cessna PN S3100-461
011-00972-10 Original Garmin shipping PN 010-00337-10, No ETSO, With HTR, With Video
011-00972-20 Original Garmin shipping PN 010-00337-20, No ETSO, With HTR, With Video




Serial # 88902596
Condition SV
Mods 1
Tag Date 10/31/24
Shop Garmin
Warranty 6 Months
011-00972-00
- G1000 Display Unit

NSN: 6610-01-597-7175

Price Condition Status
$5,950.00 SV OUTRIGHT 2 IN STOCK
$2,950.00 SV EXCHANGE 2 IN STOCK
011-00972-10
- G1000 Display Unit
Price Condition Status
$9,950.00 SV OUTRIGHT 2 IN STOCK
$3,950.00 SV EXCHANGE 2 IN STOCK
011-00972-03
- G1000 Display Unit
Price Condition Status
$11,500.00 SV OUTRIGHT 1 IN STOCK
$3,500.00 SV EXCHANGE 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Garmin has provided Service Advisory 2051 for general recommendations, materials, and supplies to clean and disinfect Garmin products. Otherwise, not following the recommendations could void the warranty.

  • Cleaners containing ammonia will harm the anti-reflective coating on many Garmin aviation display lenses.
  • Disinfectant with a solution of 70% isopropyl alcohol that does not contain ammonia is preferred. Solutions of up to 91% isopropyl alcohol are also acceptable.
  • Clean the display lens using a clean lint-free cloth and a cleaner that is specified as safe for anti-reflective coatings.
  • For other exposed surfaces such as knobs, buttons, and bezels, a damp cloth with soap and water is acceptable.
  • Bleach-based cleaners, ammonia-based cleaners, or other harsh chemicals on any surface are not recommended.
  • Remove all soap/soap residue to prevent buttons and knobs from gumming up or becoming slippery.
  • Many aviation products are not rated as waterproof. Spraying or wetting the units to the extent where moisture could go beyond the exterior surfaces could damage the unit.
