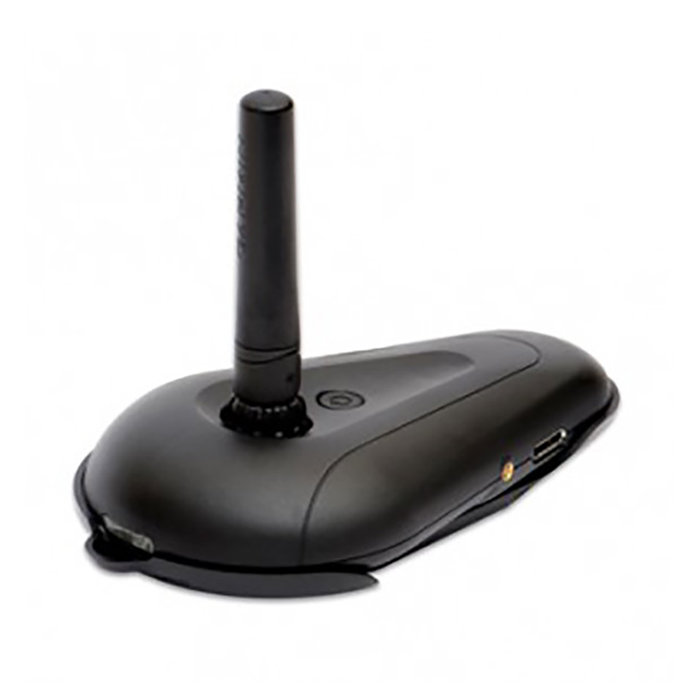

Picture of product GDL39

Part #:

Model: GDL39

OEM:

Garmin

Desc:

Portable ADS-B & GPS Receiver

Part Number :

FOR REFERENCE ONLY




GDL 39

FEATURES

  • Receives subscription-free weather
  • Advanced ADS-B "dual-link" traffic with TargetTrend and TerminalTraffic technology
  • Wireless Bluetooth connectivity with the Garmin Pilot, ForeFlight Mobile and FltPlan Go apps, aera 660 or 796/795
  • With Garmin Pilot on your mobile device, you can receive advanced traffic display features like TargetTrend relative motion tracking
  • Built-in WAAS GPS receiver
  • WAAS GPS location information to your mobile device, such as an iPad, using Bluetooth technology
  • Designed to sit on aircraft glareshield



SPECIFICATIONS

 aNTENNA/ rECEIVER
Dimension: 3.5" x 1.9" x 6.0" (8.89 x 4.83 x 15.24 cm)
Weight: 0.48 lb (0.22 kg)
Operating temperature: 20°C to +60°C (-4°F to 140°F)
operating altitude: To 55,000 ft
power input: 10 to 32 VDC, 3.5 W max.
battery charge power: 4.5 W max
total power while charging: 8.0 W max
nominal operating velocity range: 0 – 800 kts (411 m/s)
Optional battery assembly
battery type: Lithium-ion rechargeable
unit dimension: WxHxD: 3.8" x 0.9" x 6.4" (9.65 x 2.29 x 16.26 cm)
output voltage: 7.4 VDC
charging voltage: 10-32 VDC
charge temperature: Unit may not charge at extreme temperatures below 0° C (32° F) or above 32° C (90° F)
operating temperature: -20° C to +60°C (-4°F to +140° F)
typical battery operating time: 5 hours



Part Number: Description:
010-11689-00 Portable ADS-B & GPS Receiver
010-11689-01 Portable ADS-B & GPS Receiver
010-11689-02 Portable ADS-B & GPS Receiver
010-11689-03 Portable ADS-B & GPS Receiver
010-11689-04 Portable ADS-B & GPS Receiver
010-11689-05 Portable ADS-B & GPS Receiver
010-11689-06 Portable ADS-B & GPS Receiver
010-11689-07 Portable ADS-B & GPS Receiver
