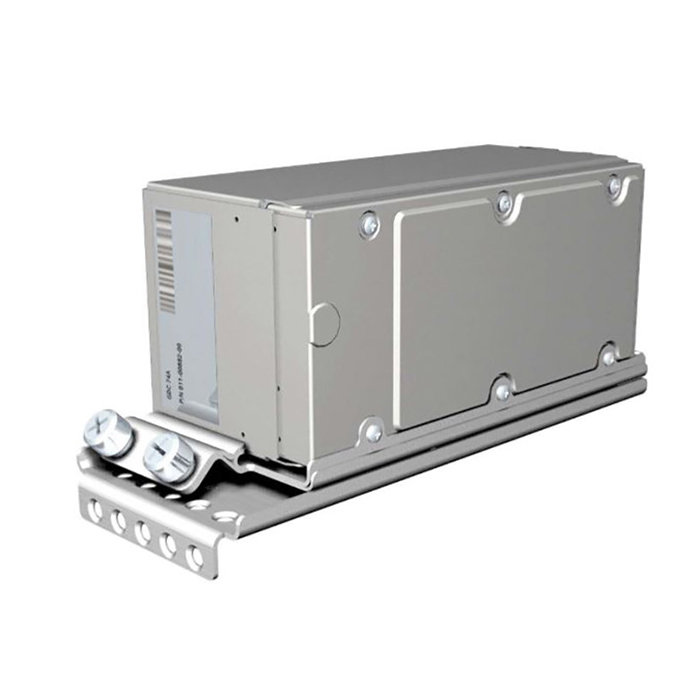

Part #:

Model: GDC-74B

OEM:

Garmin

Desc:

HIRF Air Data Computer

Part Number :





GDC-74B



FEATURES

  • Remote mounted unit providing air data for flight instrumentation in G1000 Flight Deck
  • Measures aircraft static and impact pressure information from pressure transducers and raw air temperature from an outside temperature probe
  • Computes pressure altitude, vertical speed, airspeed values, air temperature information and density altitude
  • Provides pitot static and temperature derived air data to the G1000 GIA-63 Integrated Avionics Unit and the GDU Primary Flight Displays
  • RVSM (Reduced Vertical Separation Minimums) capable
  • Supports installation specific external sensor data such as angle of attack



SPECIFICATIONS

WIDTH: 3.05 inches (7.75 cm) height: 3.22 inches (8.18 cm)
LEGNth: 6.48 inches (16.46 cm)  weight: 1.60 lbs. (0.73 kg)
LENGTH with rack & connectors: 9.50 Inches (24.13 cm) 14 Volt current draw: Typical: 410 mA, Maximum: 480 mA
unit Software: RTCA/DO-178B Level B Aircraft pressure altitude range: -1,400 feet to 50,000 Feet
Aircraft Vertical Speed Range: -20,000 feet per minute to +20,000 feet per minute Aircraft Airspeed Range: 450 Knots
Aircraft Total Air Temperature Range: -85°C to +85°C Aircraft Mach Range: <1.00 Mach
Unit Operating Temperature Range: -55°C to +70°C Regulatory Compliance: RTCA/DO-160D Environmental Conditions and EUROCAE/ED-14D
Part Number: Description:
011-01110-00  HIRF Air Data Computer
011-01110-01  HIRF Air Data Computer













010-00390-01
- Air Data Computer
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01110-00
- Air Data Computer
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

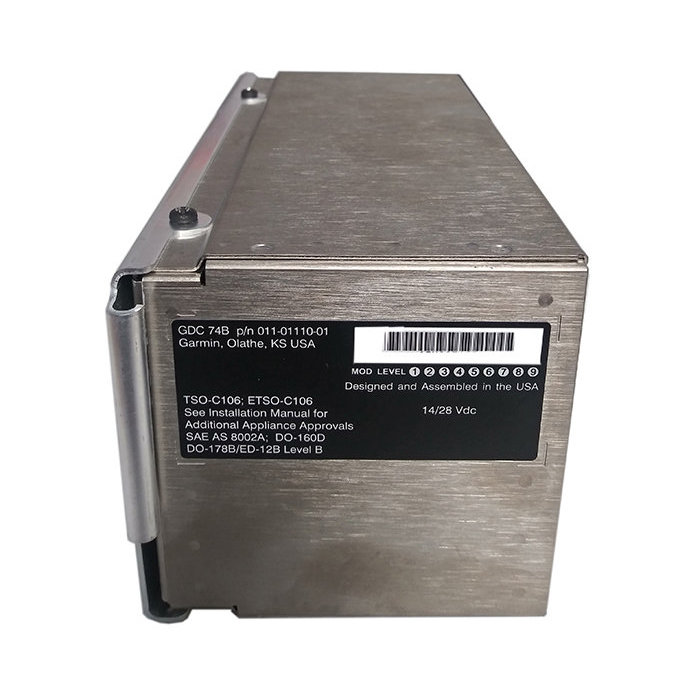

011-01110-01
- G1000 Air Data Computer

NSN: 6610-01-593-2428

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
