Part #:

Model: GDC-7400

OEM:

Garmin

Part Number :



GDC-7400



FEATURES

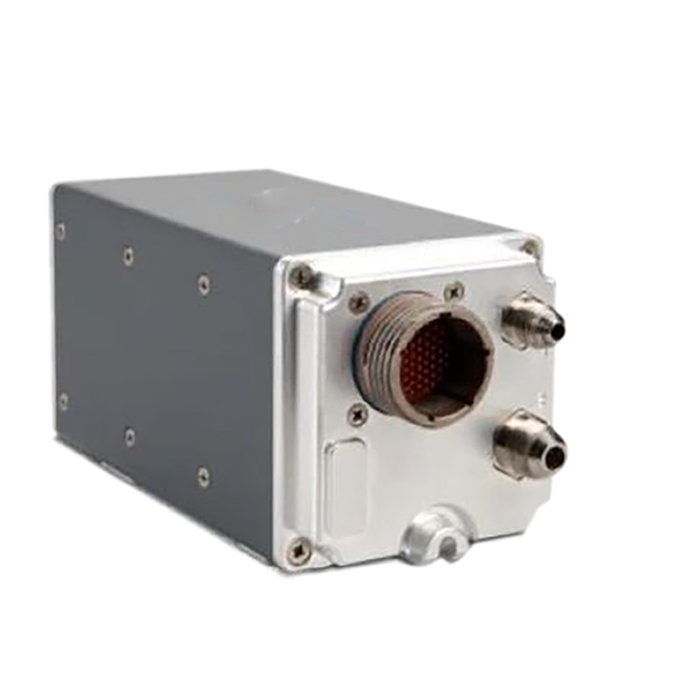

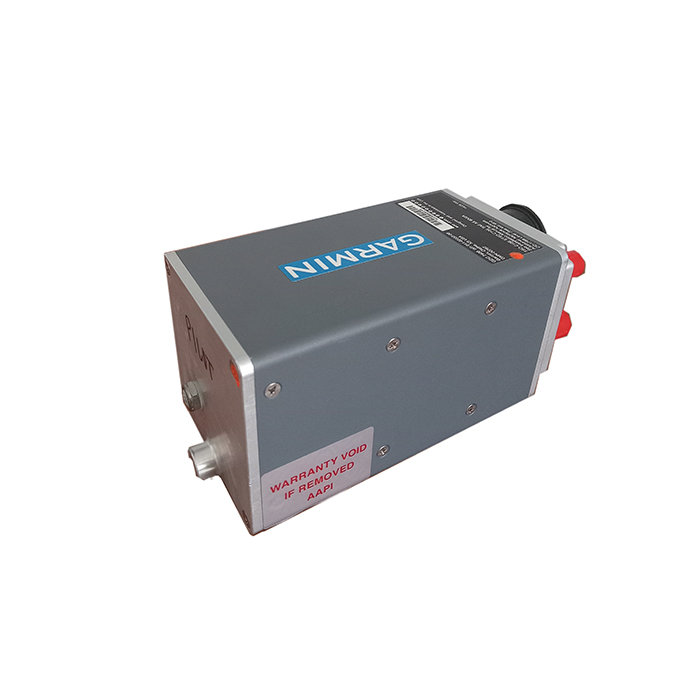

  • Remote mounted air data computer is that provides air data for flight instrumentation
  • Measures aircraft static and impact pressure information from pressure transducers & raw air temperature from an outside temperature probe
  • Computes pressure altitude, vertical speed, airspeed values, air temperature information and density altitude
  • Provides pitot-static and temperature derived air data to the GIA Integrated Avionics Unit, GRS Attitude Heading & Reference Sensor, and GDU PFDs
  • RVSM capable
  • -01 provides Enhanced Electromagnetic Surge Protection (ELSP)
  • -02 provides an extended calibrated airspeed range



SPECIFICATIONS

Weight:  1.92 lbs. Dimensions: 3.24” H x 3.02” W x 6.87” L
Temperature:  55° to 70°C



Part Number: Description:
011-02337-00     Standard Model
011-02327-01     With Enhanced Electromagnetic Surge Protection
011-02327-02     With extended calibrated airspeed range



011-02337-00
- Air Data Computer
Price Condition Status
$8,950.00 SV OUTRIGHT IN WORK
$2,950.00 SV EXCHANGE IN WORK
010-00787-00
- Enhanced Electromagnetic Surge Protection
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02337-02
- Air Data Computer (ELSP, Ext. Airspeed)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
