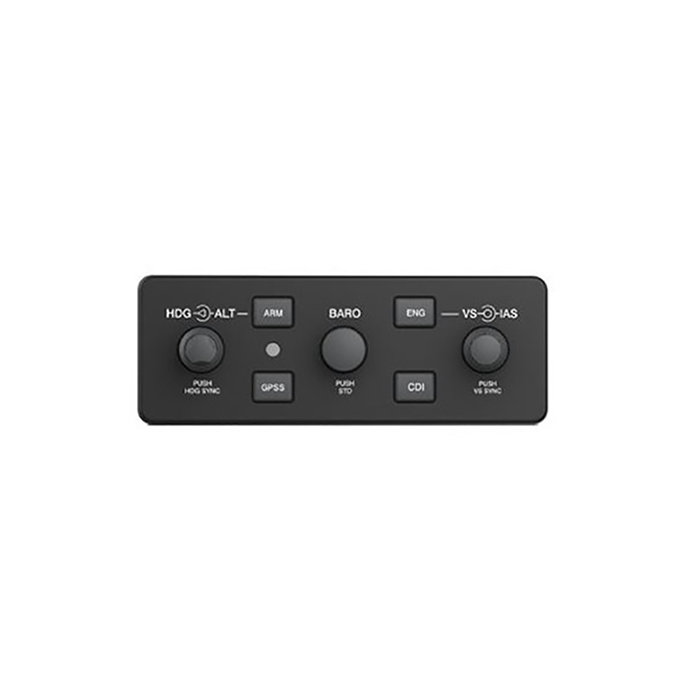

Picture of product GCU-485

Part #:

Model: GCU-485

OEM:

Garmin

Desc:

FMS Controller

Part Number :





GCU-485 FMS



FEATURES

  • GCU275/47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flicght Deck
  • Provides heading, altitude, barometric pressure, indicated airspeed, , and AFCS intergration fuctions
  • The GCU-485 mounts flush to the aircraft instrument panel using two pawl latches



SPECIFICATIONS

width: 5.50 inches (139.7 mm) DEPTH W/CONNECTOR KIT: 3.80 inches (96.5 mm)
height: 2.12 inches (53.8 mm) unit weight w/out connector kit: 0.6 lbs (0.27 kg)
unit weight with connector kit: 0.7 lbs (0.32 kg) mounting hardware: N/A
Power Consumption: 120 mA @ 14V, 64 mA @ 28V operating temerature range: -45° to +70°
humidity: 95% non-condensing altitude range: -1,500 ft. to 55,000 ft.
Part Number: Description:
010-01350-02 FMS Controller
011-03582-01 FMS Controller
011-03582-02 FMS Controller
011-03582-03 FMS Controller
011-03582-04 FMS Controller
011-03582-05 FMS Controller





010-01350-02
- 3 Buttons Unit Only
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-03582-02
- FMS Controller (ARM, GPS, CDI)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-03582-03
- FMS Controller (GPS, CDI)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-03582-04
- FMS Controller (CDI)
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-03582-05
- FMS Controller (ARM/ENG/CDI)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
