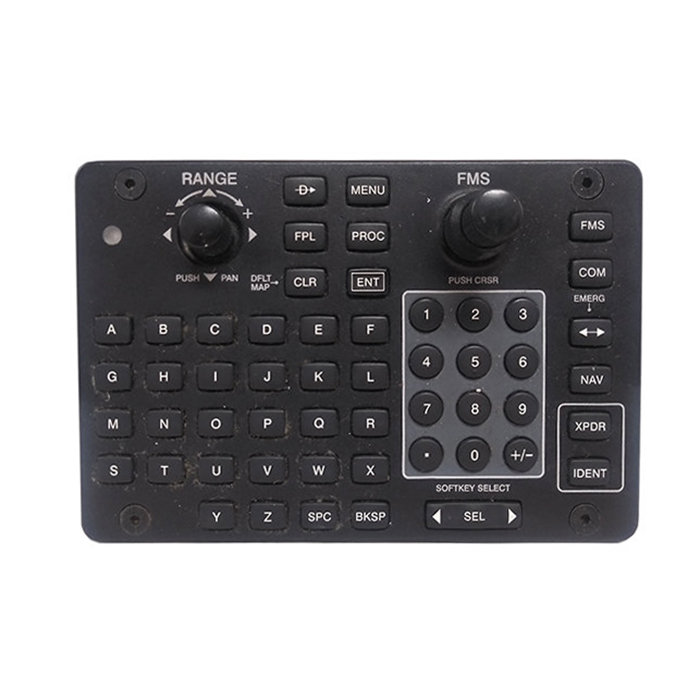

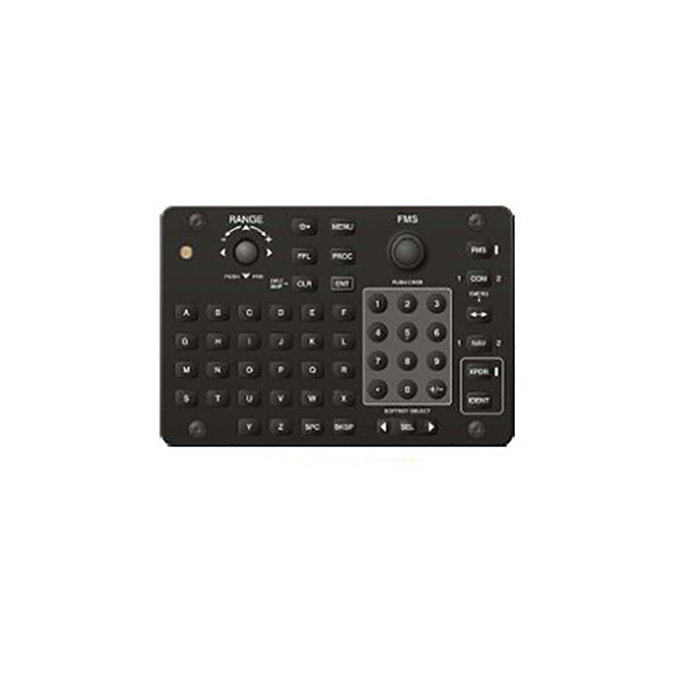

Part #: 011-01428-00

Model: GCU-477

OEM:

Garmin

Part Number :





GCU-477 FMS



FEATURES

  • GCU275/47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flicght Deck
  • The GCU-475, 477, and 478 mounts flush to the aircraft instrument panel using four 1/4 turn fasteners
  • GCU-477 Provides COM/NAV tunning capabilities



SPECIFICATIONS

width: 5.52 inches (140.2 mm) depth w/connector: 3.31 inches (84.1 mm)
height: 3.75 inches (95.3 mm) unit weight w/out connector: 0.8 lbs (0.27 kg)
unit weight with connector: 0.9 lbs (0.32 kg) mounting hardware: 0.03 lbs (0.01 kg)
Power Consumption: (-00, 175 mA @ 14V, 85 mA @ 28V) (-20, 106 mA @ 14V, 59 mA @ 28V) operating temperature range: -45° to +70°
humidity: 95% non-codensening altitude range: -1,500 ft. to 55,000 ft.
Part Number: Description:
011-01428-00 Original production unit
011-01428-20 Recommended unit for new TC/STC approvals. Same form, fit, and function as the -00









011-01428-00
- FMS Controller
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
