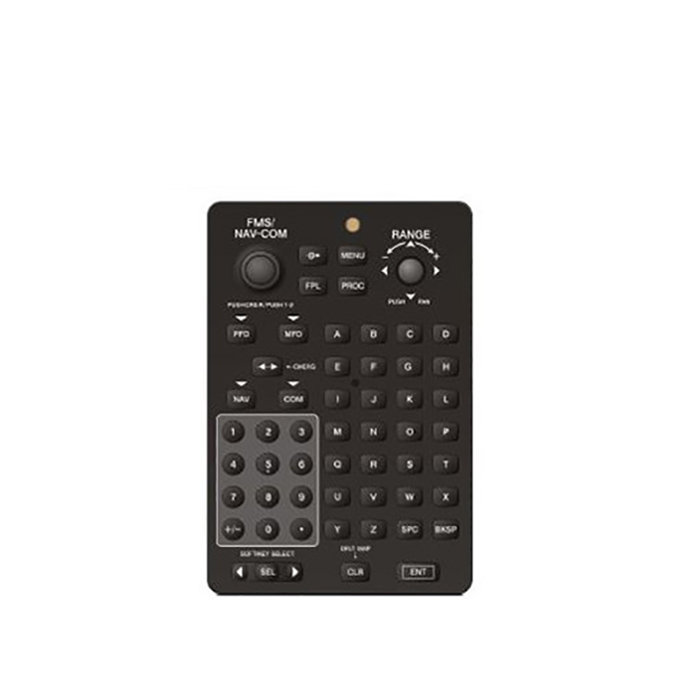

Picture of product GCU-476

Part #: 011-01237-00

Model: GCU-476

OEM:

Garmin

Desc:

FMS Controller

Part Number :





GCU-476 FMS



FEATURES

  • GCU275/47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flight Deck
  • The GCU-476 mounts flush to the aircraft instrument panel using single jackscrew
  • GCU-476 Provides COM/NAV tuning capabilities



SPECIFICATIONS
width: 3.66 inches (140.2 mm) DEPTH W/CONNECTOR KIT: 2.31 inches (84.1 mm)
height: 2.31 inches (84.1 mm) UNIT WEIGHT W/OUT CONNECTOR KIT: 0.7 lbs (0.27 kg)
unit weight with connector kit: 0.8 lbs (0.32 kg) MOUNTING HARDWARE: 0.13 lbs (0.01 kg)
Power Consumption: (-00, 113 mA @ 14V, 61 mA @ 28V) (-X0, 277 mA @ 14V, 140 mA @ 28V) operating temperature: -45° to +70°
humidity: 95% non-codensening altitude range: -1,500 ft. to 55,000 ft.
Part Number: Description:
011-01237-00 FMS Controller
011-01237-10 FMS Controller
011-04476-00 FMS Controller







Serial # 30005131
Condition SV
Mods None
Tag Date 12/27/22
Shop Garmin
Warranty 6 Months
011-01237-00
- FMS Controller
Price Condition Status
$1,750.00 SV OUTRIGHT 1 IN STOCK
$1,250.00 SV EXCHANGE 1 IN STOCK
011-01237-10
- FMS Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-04476-00
- FMS Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
